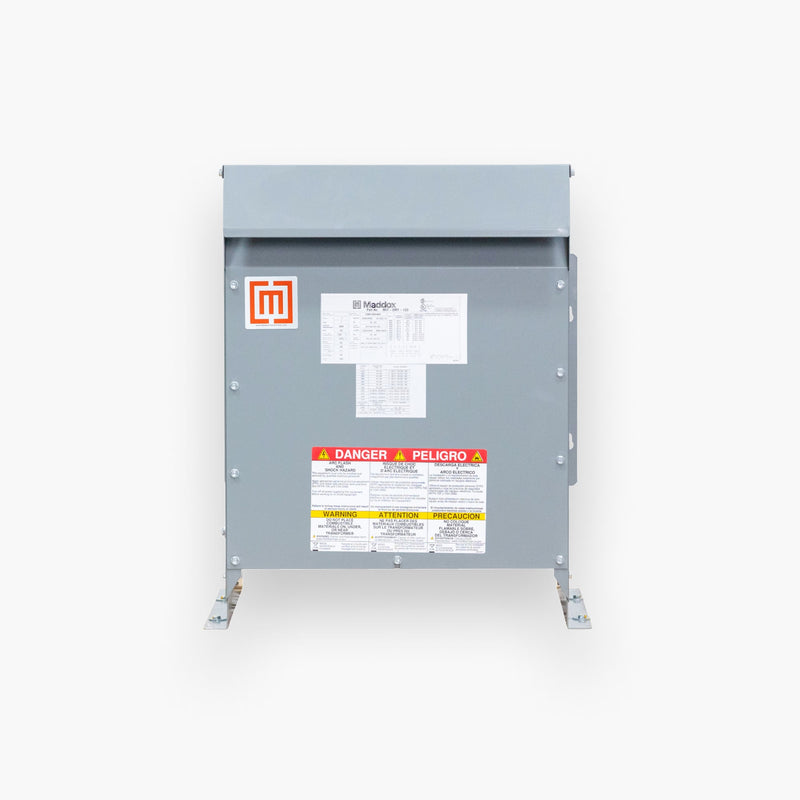

1-Phase 240x480 - 120/240

SKU: MIT-DRY-119
Size:

Size

Conductor:

Conductor

New

$1,169

Used

$760
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days


Overview

This transformer is designed to convert either 240V 1-Phase power, or 480V 1-Phase power to 120/240v to run equipment such as panels, lighting, CNC machines, printing equipment, fabrication tools and other business machines.

Not sure what to buy? Find out more about how to buy the right transformer.



Primary Voltage: 240x480

Secondary Voltage: 120/240




Standard Features

  • 60 Hz Frequency
  • 150°C Temperature Rise
  • High Efficiency Aluminum or Copper Windings
  • VPI Windings
  • 220°C Insulation Class
  • Vacuum pressure Impregnated Windings

Note: 167 kVA and up are 480 primary only.





Size Guide

kVA Amps at 480V Amps at 240V Amps at 120V
15 31 63 125
25 52 104 208
37.5 78 156 313
50 104 208 417
75 156 313 625
100 208 417 833
167 348 696 1392
250 521 1042 2083
333 694 1388 2775

Dimensions & Weights

kVA Dimensions (HxWxD) Weight (lbs)
15 27"x23"x24" 180
25 29"x23"x24" 250
37.5 31"x23"x24" 315
50 32"x26"x26" 400
75 36"x29"x28" 520
100 36"x29"x30" 625
167 52"x41"x37" 1200
250 66"x51"x31" 1665
333 66"x51"x31" 1865



Approximate Enclosure Dimensions & Weights.

Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
