1-Phase Padmount Transformer 12470 GY 7200 - 120/240
Size
Estimated Delivery Date: (call to expedite)
Transformer is in stock! Delivers in 5 - 7 business days
Overview
This brand new transformer is designed to provide 1-phase 120/240v power to homes, and commercial buildings from a standard 12470 / 7200 feed.
Primary Voltage: 12470 GY 7200
Secondary Voltage: 120/240
Standard Features
- 60 Hz Frequency
-
65°C Temperature Rise
- High efficiency design
-
Silicon steel core

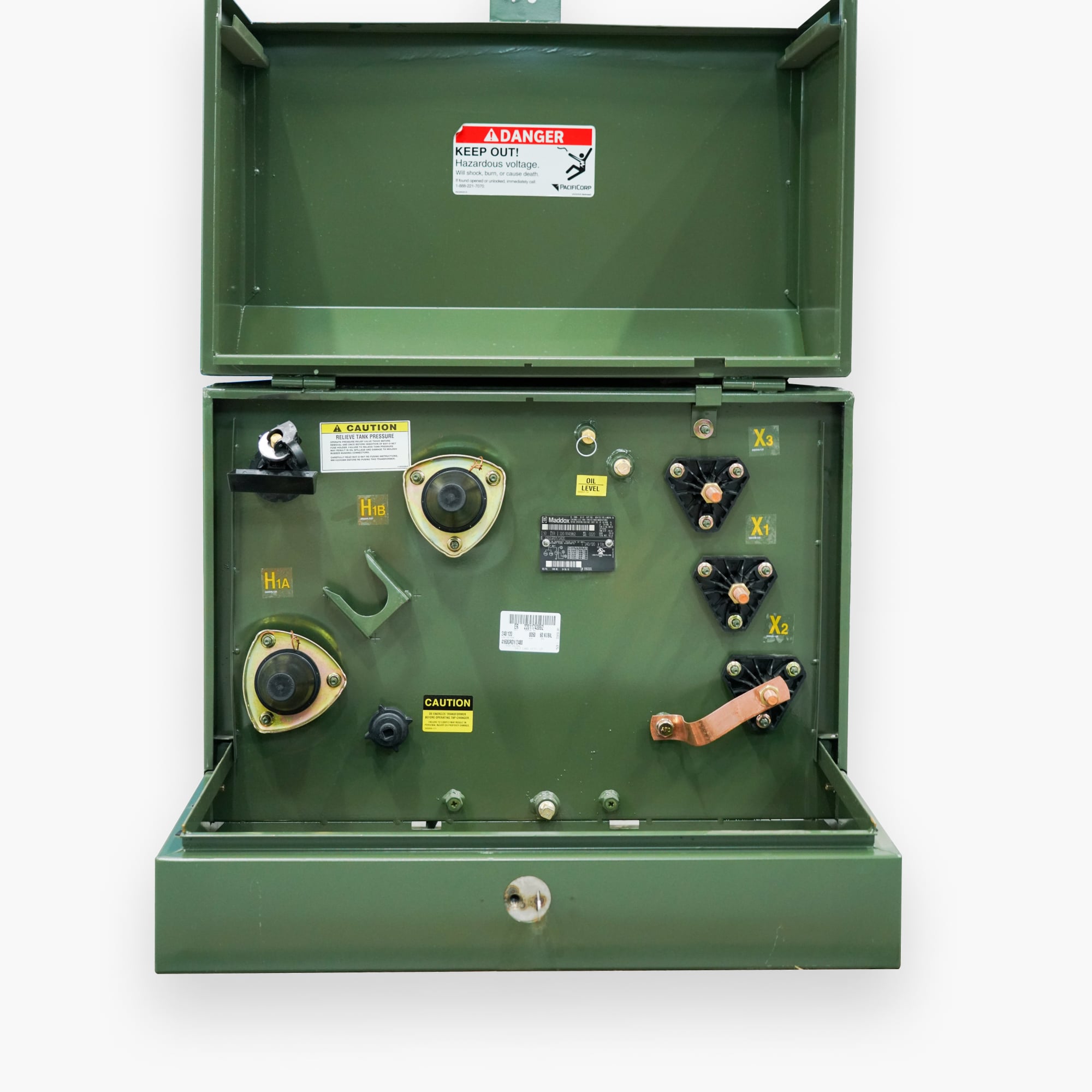

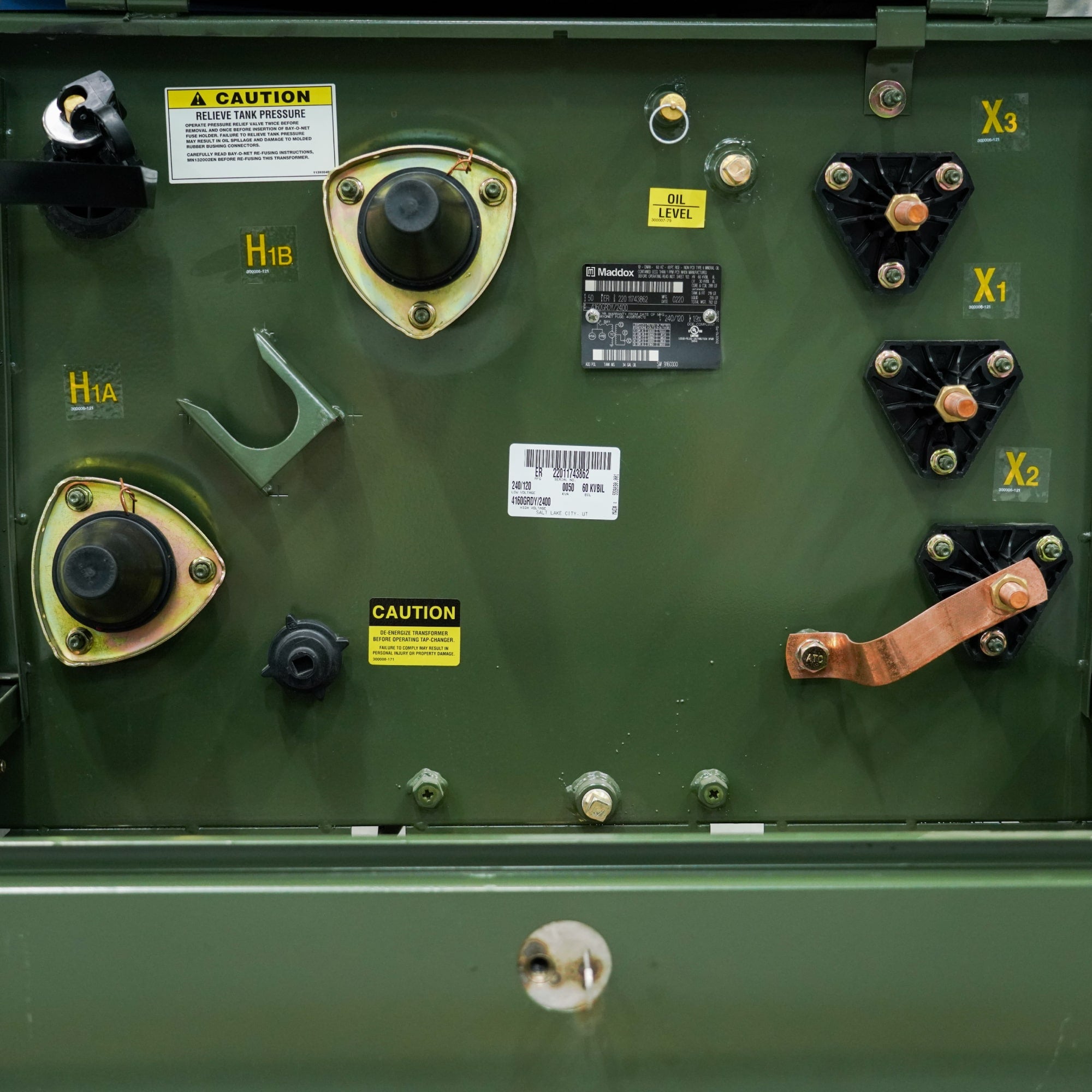

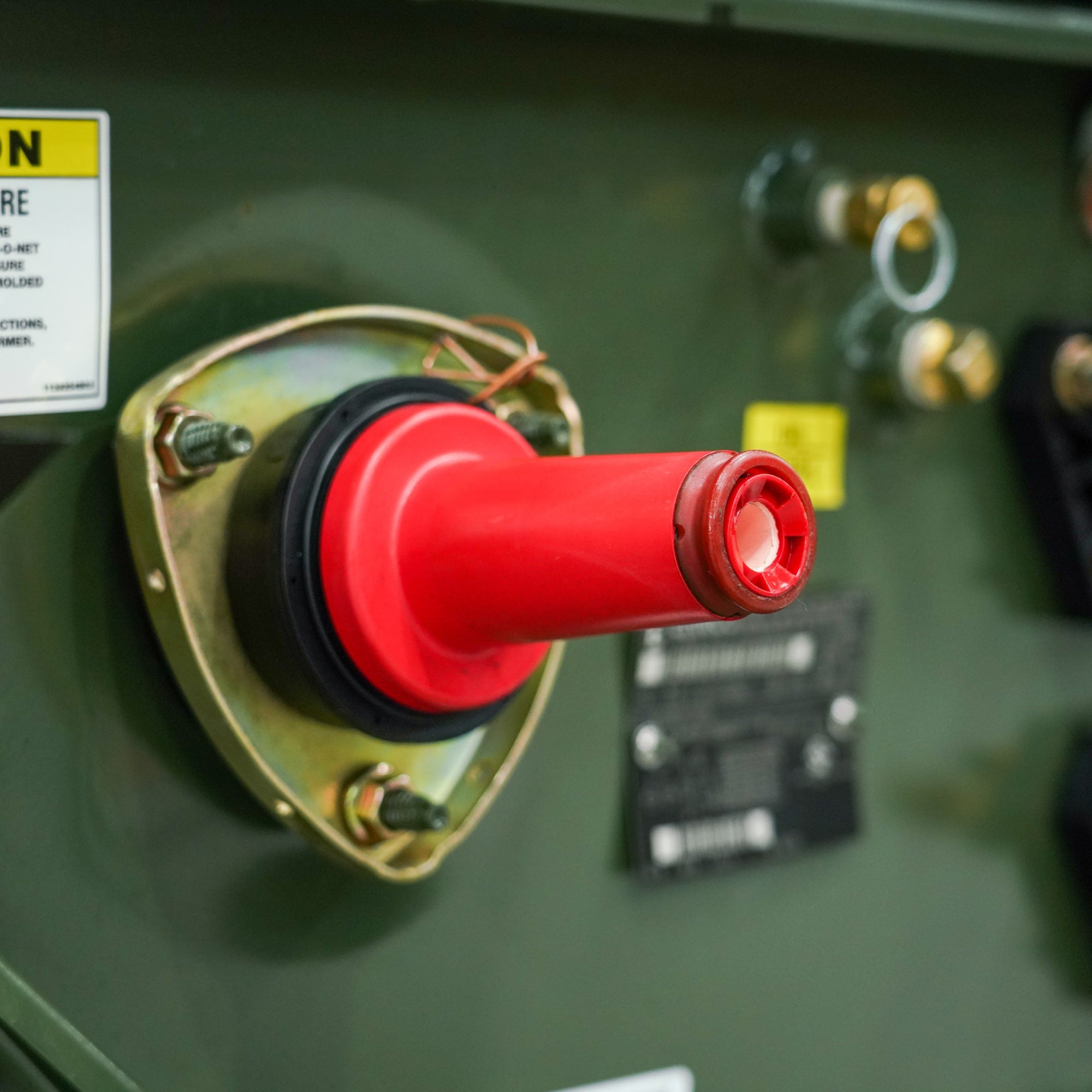

- Primary connection: 200A dead front wells & inserts

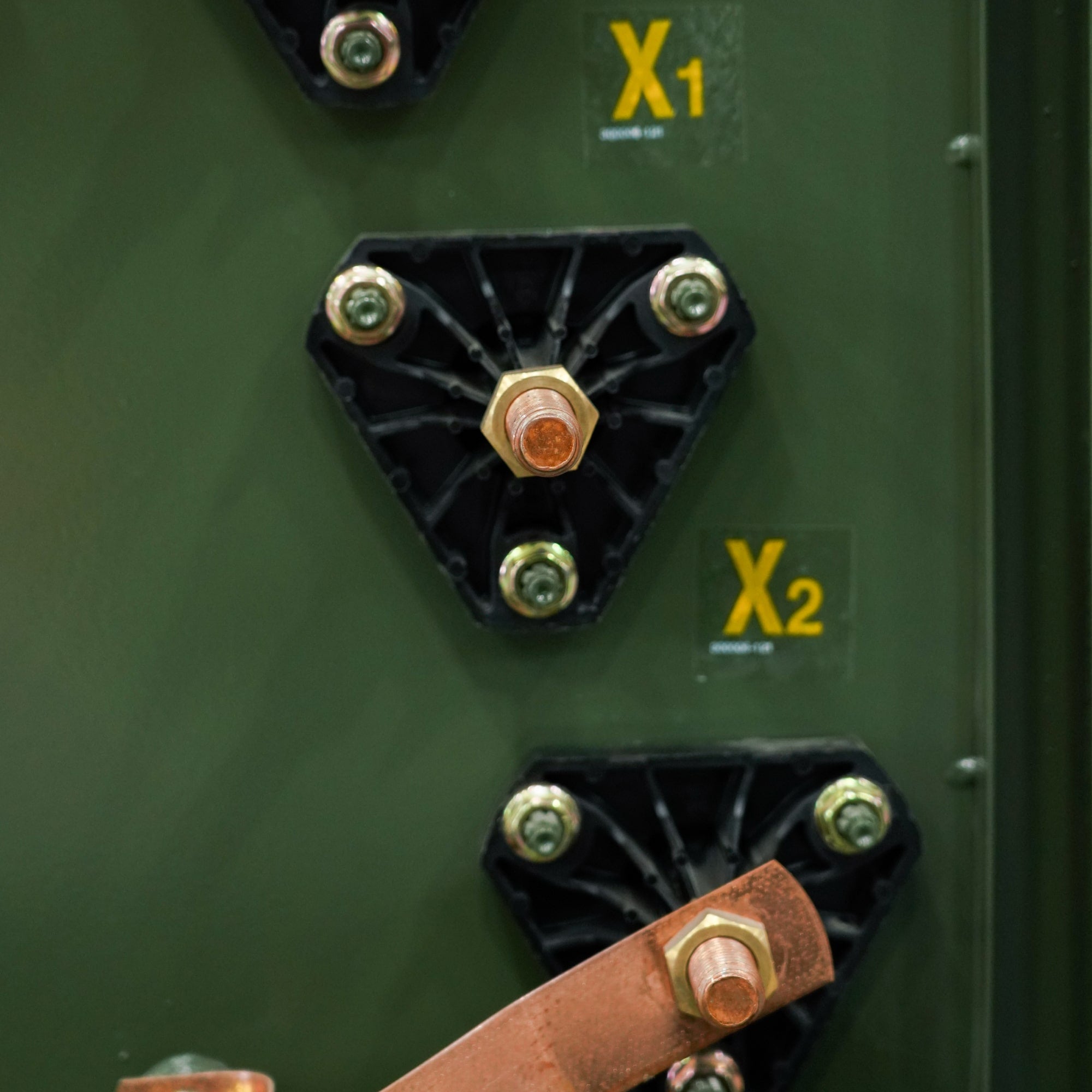

- Secondary Connection: 4-hole Spades
- Bayonet fusing
- Pressure relief valve
- Mineral oil filled
Size Guide
| kVA | Amps at 7200V | Amps at 120V | Amps at 240V |
| 25 | 3 | 208 | 104 |
| 37.5 | 5 | 313 | 156 |
| 50 | 7 | 417 | 208 |
| 75 | 10 | 625 | 313 |
| 100 | 14 | 833 | 417 |
| 167 | 23 | 1392 | 696 |
kVA Sizing Recommendation: At least 20% above the rated horsepower on the motor.
Dimensions & Weights
| kVA | Dimensions (HxWxD) | Weight (lbs) |
| 25 | 24.25"x32"x32.5" | 604 |
| 37.5 | 24.25"x32"x32.5" | 648 |
| 50 | 24.25"x32"x33.5" | 740 |
| 75 | 24.25"x36"x36.75" | 1,012 |
| 100 | 24.3"x36"x37" | 1,115 |
| 167 | 32.1"x36"x42" | 1,775 |
Approximate Enclosure Dimensions & Weights
