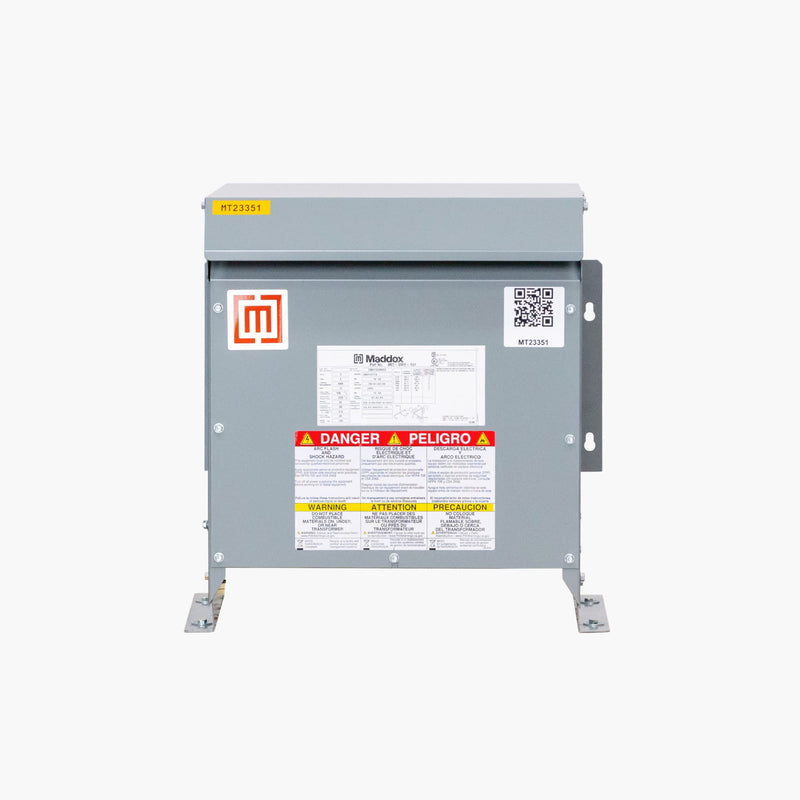

3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer back view
3-phase dry type transformer ready to ship
3-phase dry type transformer connections
3-phase dry type transformer taps
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail
How to install a transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer core
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strip
3-phase dry type transformer connection
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail

3-Phase 208 D - 480 Y 277 (Step-Up Drive Isolation Transformer)

SKU: MIT-DIT-140
Size:

Size

New

$1,401

Used

$1,121
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days

Overview

Maddox Drive-Isolation Transformers are designed to meet the rugged demands of both AC and DC variable speed drives and provide the required voltage change.

The separate windings provide electrical isolation between the incoming power and the SCR or VFD load. The windings are designed to withstand overcurrent at 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds, as well as minor harmonic noise at or below K-Factor 4. Standard duty cycle is one start every two hours.

Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings.

Standard sizes range from 5 to 600 HP in six standard voltages.

Primary Voltage: 208 D

Secondary Voltage: 480 Y 277

Transformer Specifications:



  • 60 Hz Frequency
  • 150°C Temperature Rise
  • 220°C Insulation Class
  • Primary Adjustment Taps 1 above, 1 below in 5% increments
  • Electrostatically Shielded
  • High Efficiency Aluminum Windings
  • Vacuum pressure Impregnated Windings
  • DOE Exempt
  • Lugs included up to 75 kVA

Transformer may appear different than pictured.




Size Guide



kVA Amps at 208v Amps at 480v Startup (low) Startup (high)
11 31 13 53 79
14 39  17 67 101
20 56 24 96 144
27 75 32 130 195
34 94 41 164 245
40 111 48 192 289
51 142 61 245 368
63 175 76 303 455
75 208 90 361 541

kVA Sizing Recommendation: At least 20% above the rated horsepower on the motor.


Dimensions & Weights

kVA Dimensions (HxWxD) Weight (lbs)
11 21.5"x19.38"x20.2" 150
14 21.5"x19.38"x20.2" 180
20 28.75"x23.9"x25" 225
27 28.75"x23.9"x25" 280
34 28.75"x23.9"x25" 305
40 28.75"x23.9"x25" 315
51 28.75"x23.9"x25" 370
63 38"x26"x21" 510
75 38"x26"x21" 570


 Approximate Enclosure Dimensions & Weights

Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
