3-Phase 208V Delta - 380 Y/ 219 (Step Up Transformer)
Size
Estimated Delivery Date: (call to expedite)
Transformer is in stock! Delivers in 3 - 5 business days
WHY BUY USED?
Same Warranty. Better Price.
Used transformers carry the same warranty as new ones with pictures and test results available on request. Give us a call and we’ll check our inventory.
Overview
This transformer is designed to convert 3-phase 208v to 3-phase 380 Y 219 to run equipment such as panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, and other business machines.
Not sure what to buy? Find out more about how to buy the right transformer.
Primary Voltage: 208 Delta
Secondary Voltage: 380 Y 219
Transformer Specifications:
- 60 Hz Frequency
- 150°C Temperature Rise

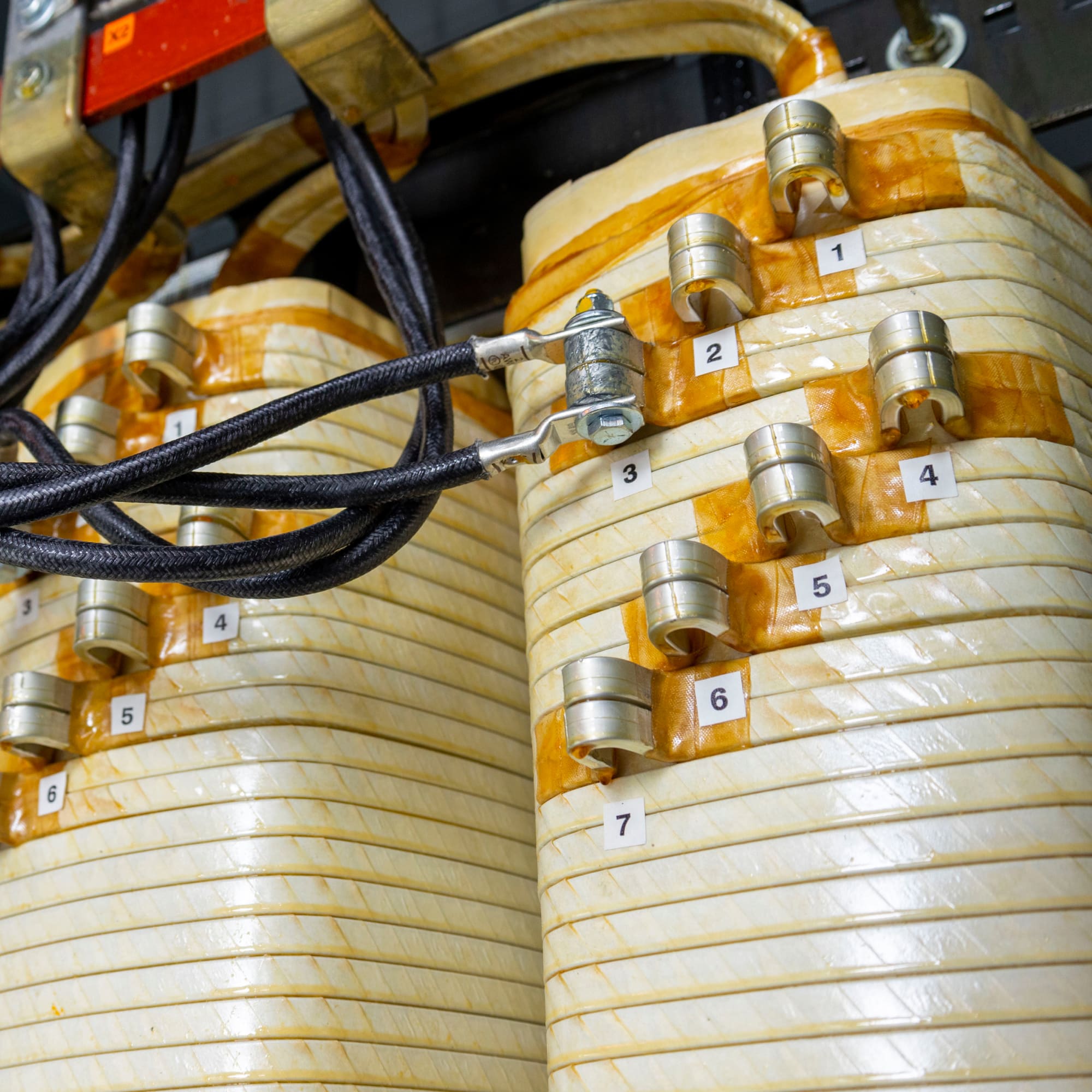

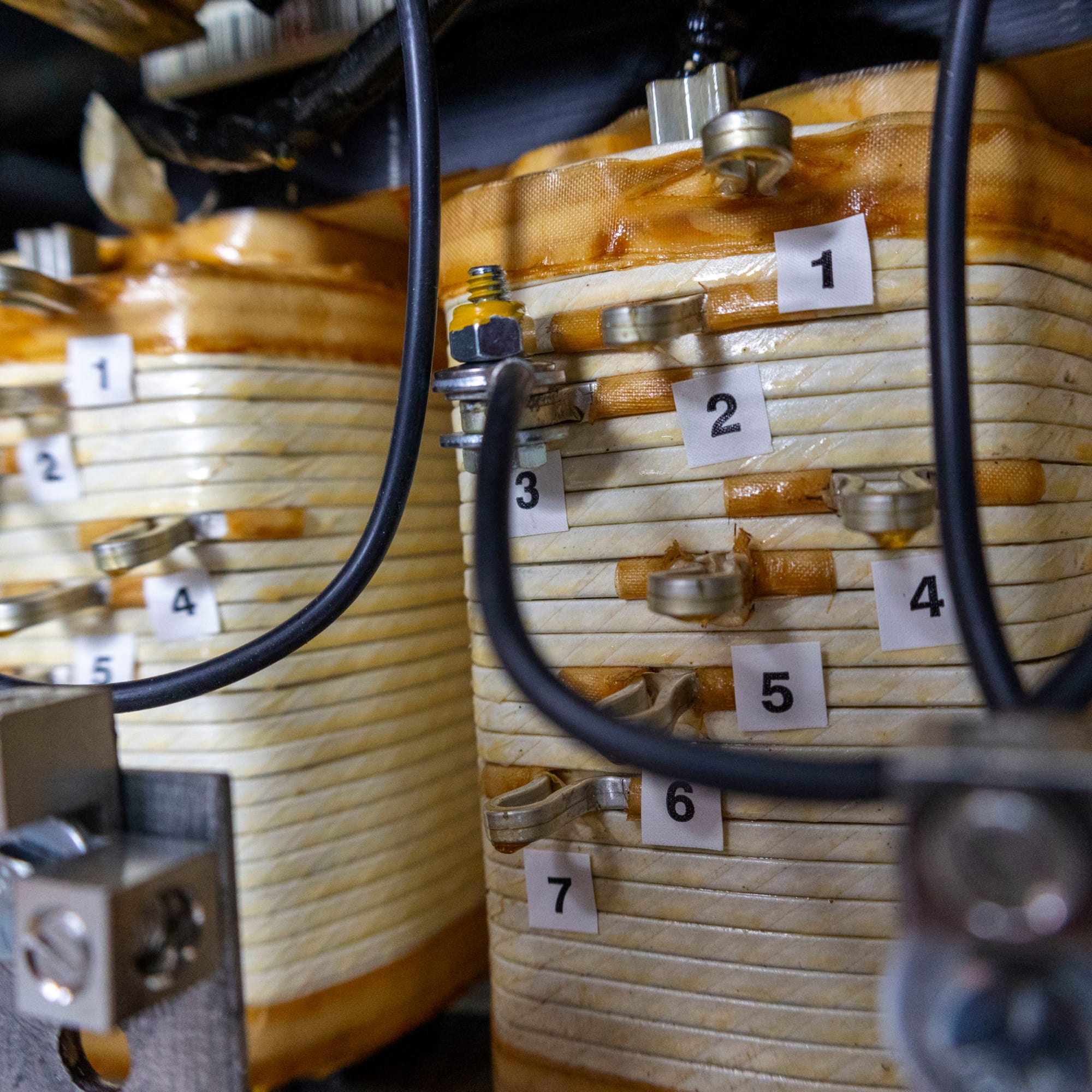

- Primary Adjustment Taps 2 above, 4 below in 2.5% increments

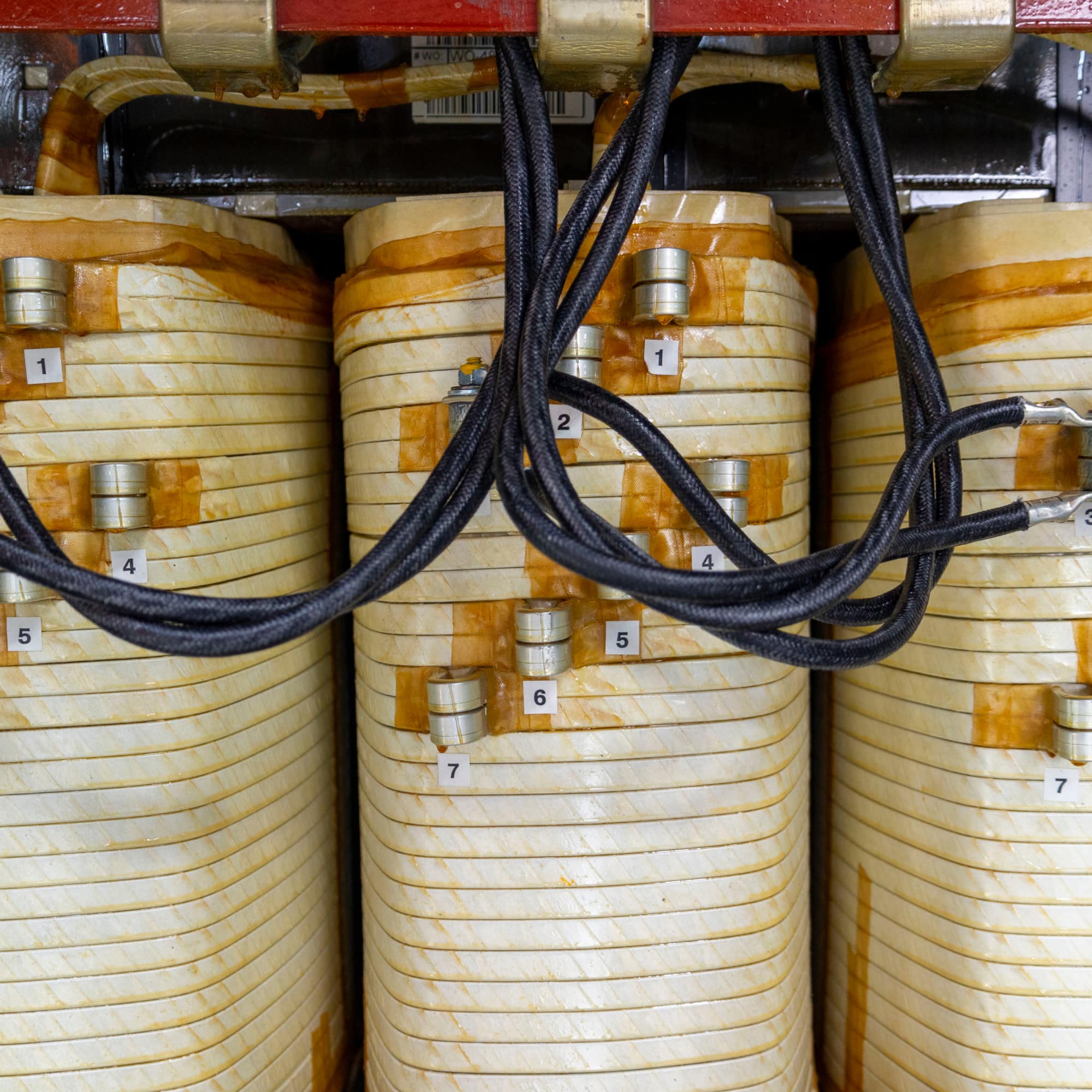

- High Efficiency Aluminum Windings
- 220°C Insulation Class
- DOE 2016 Energy Efficient

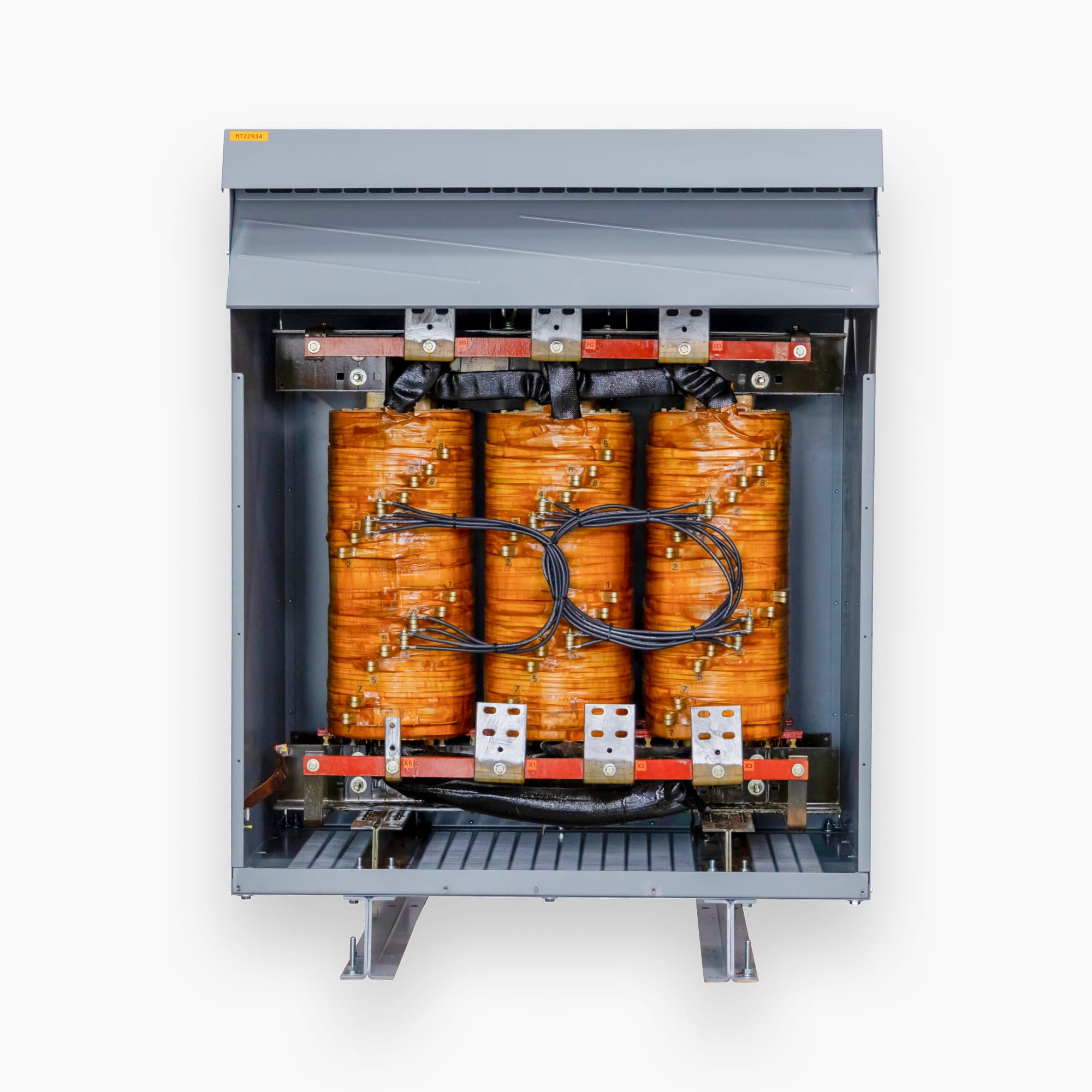

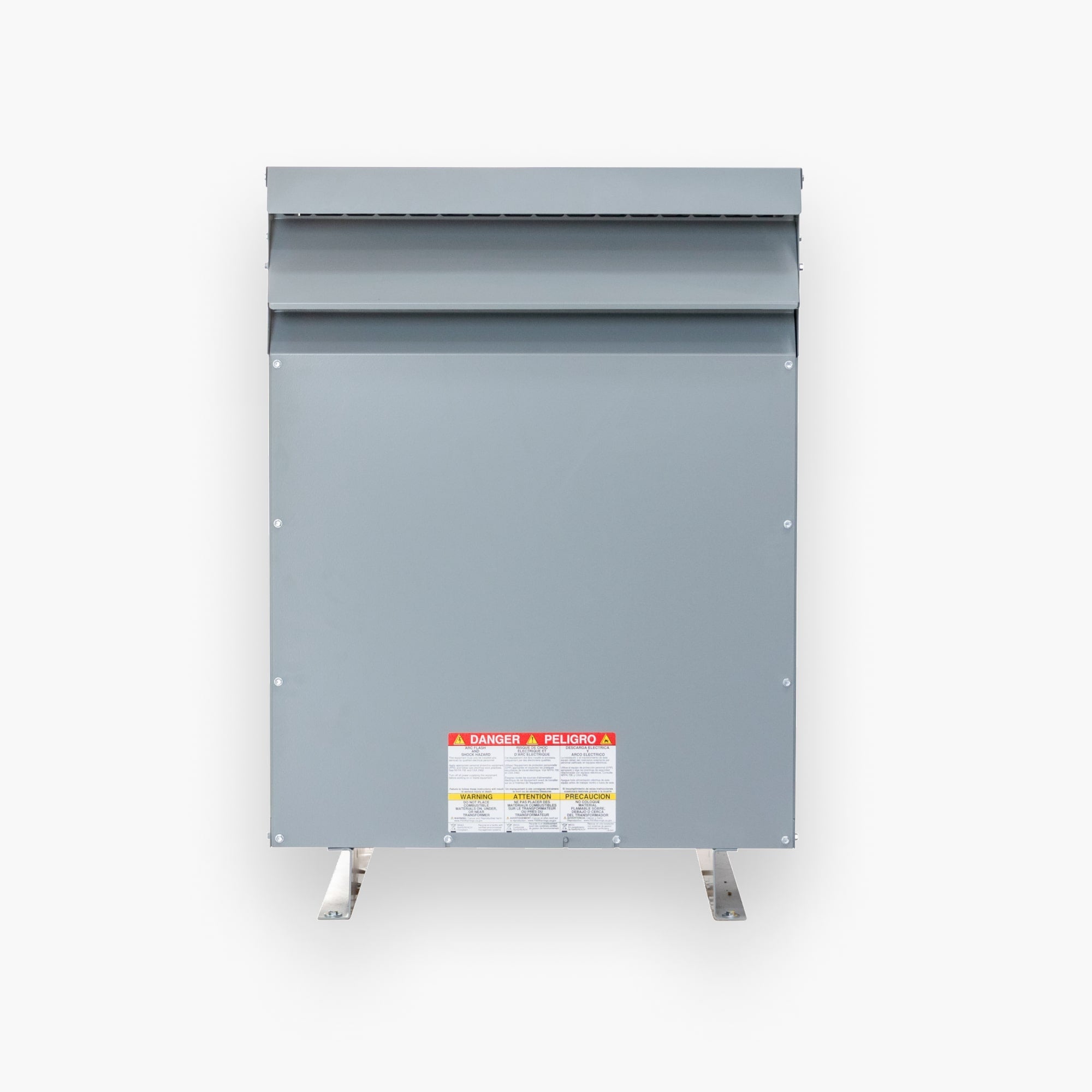

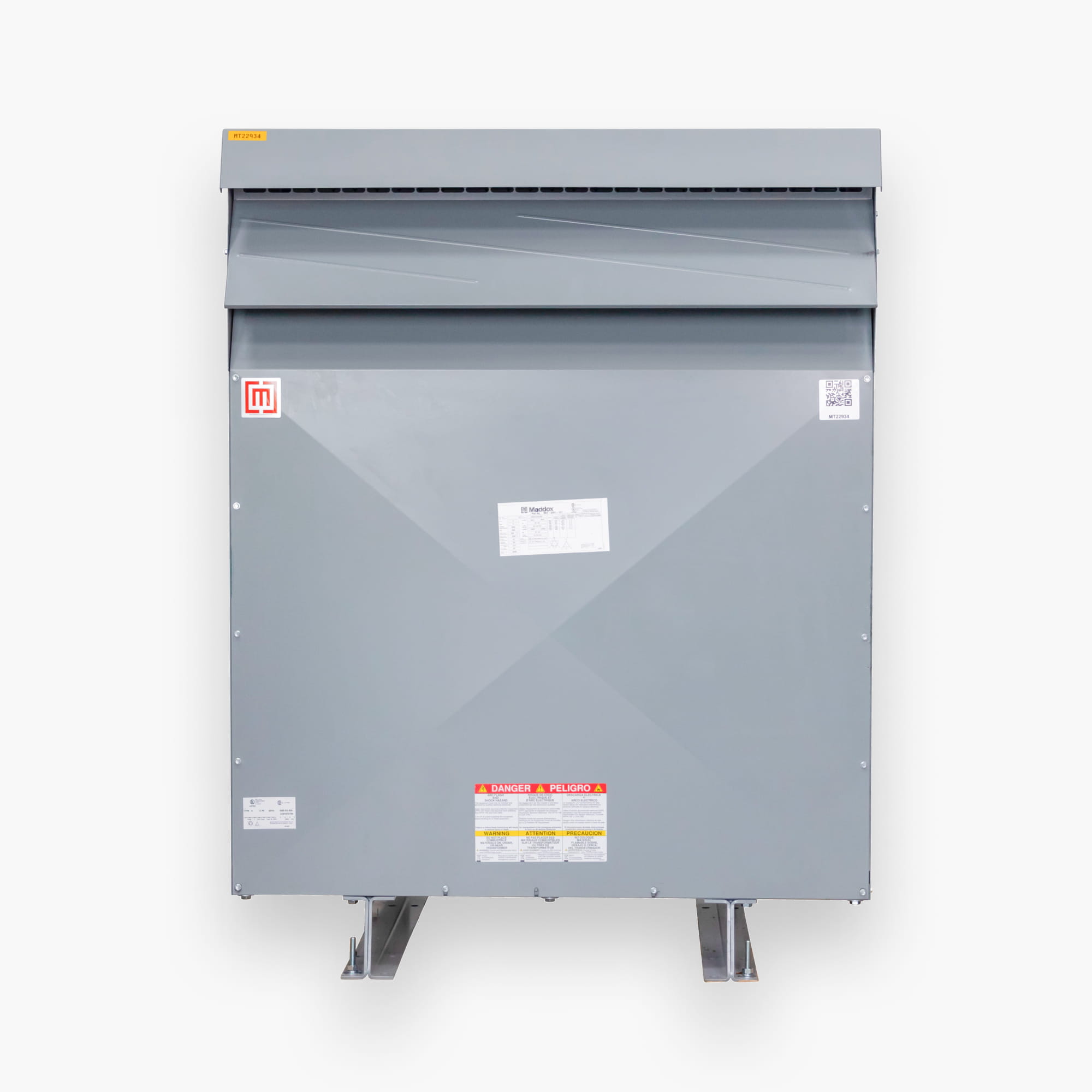

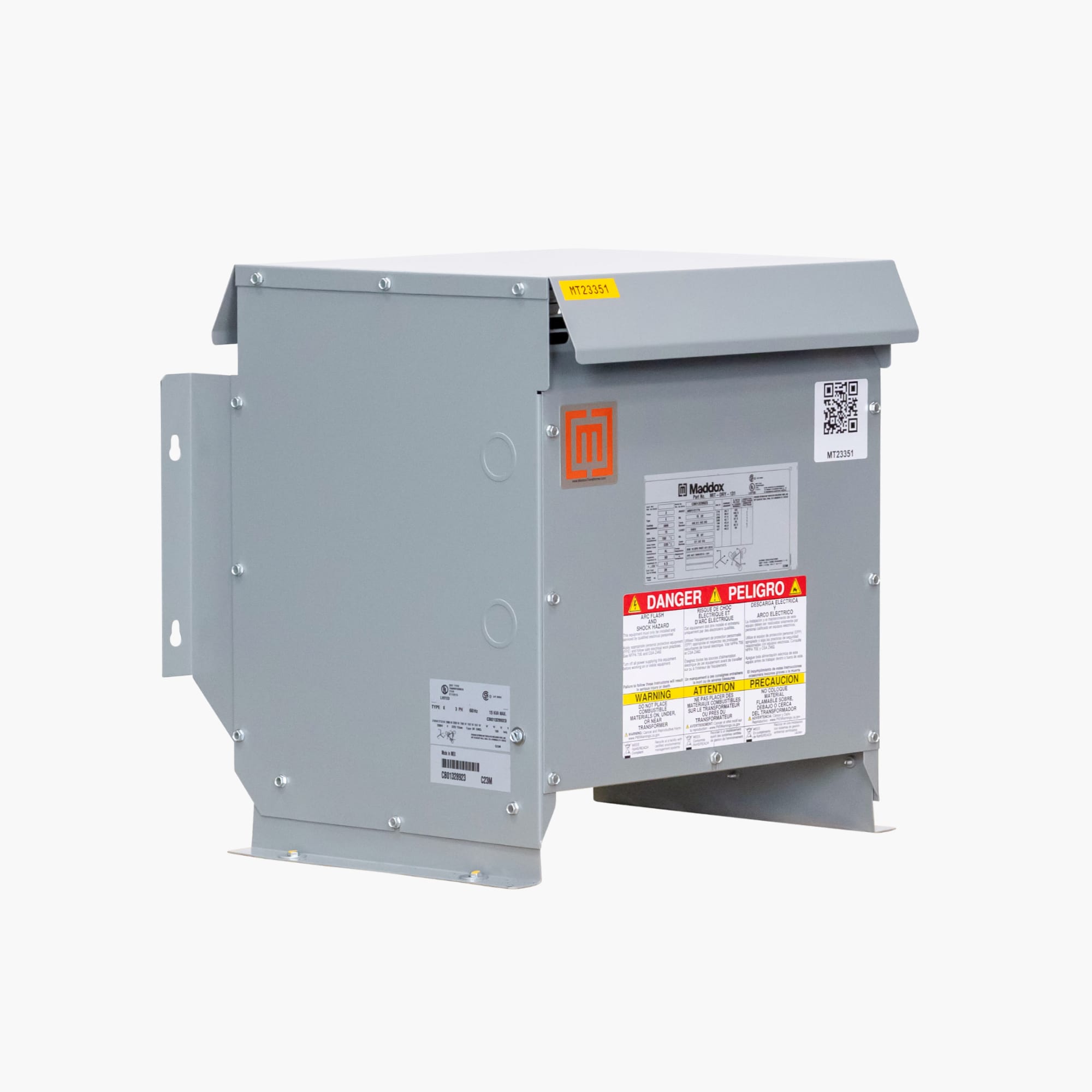

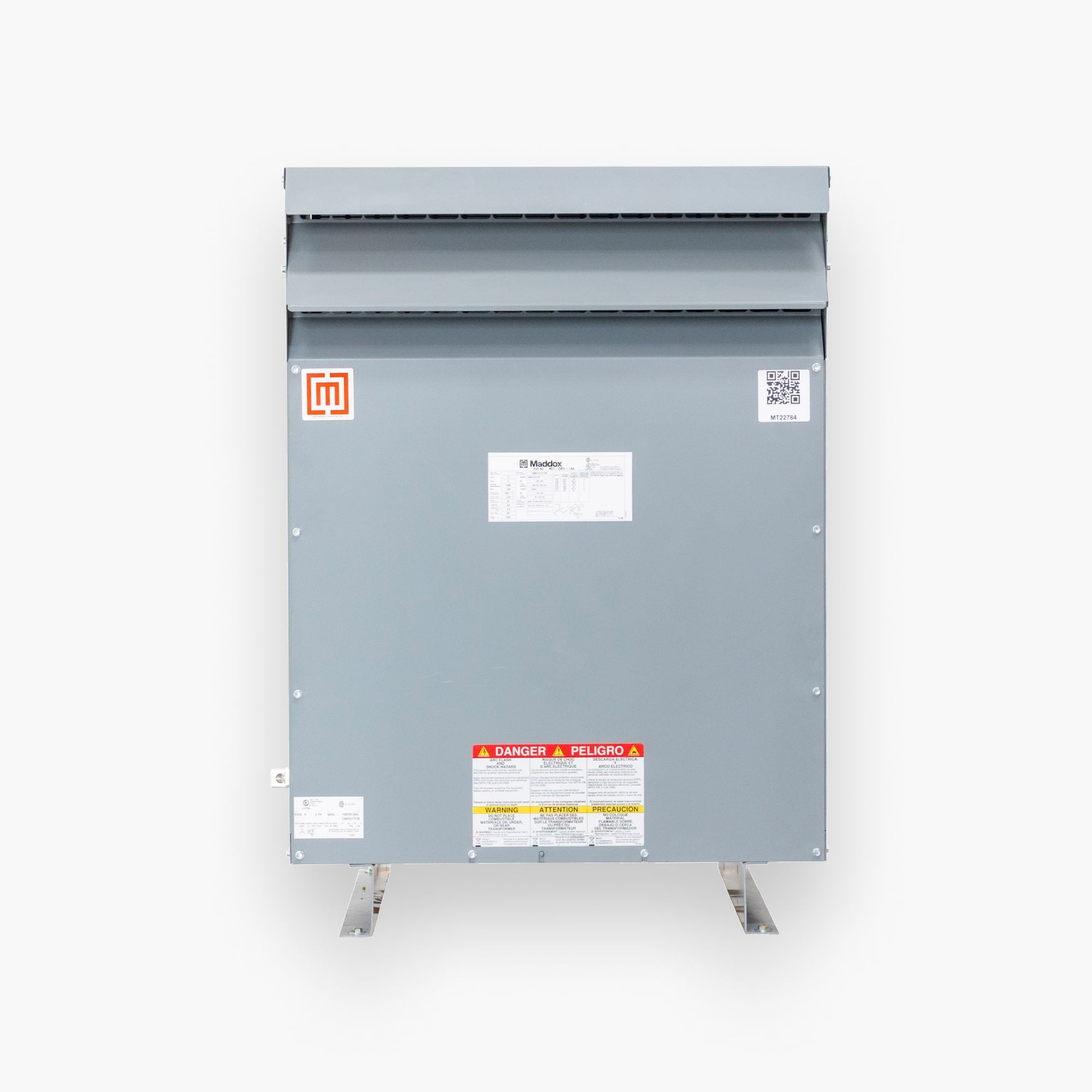

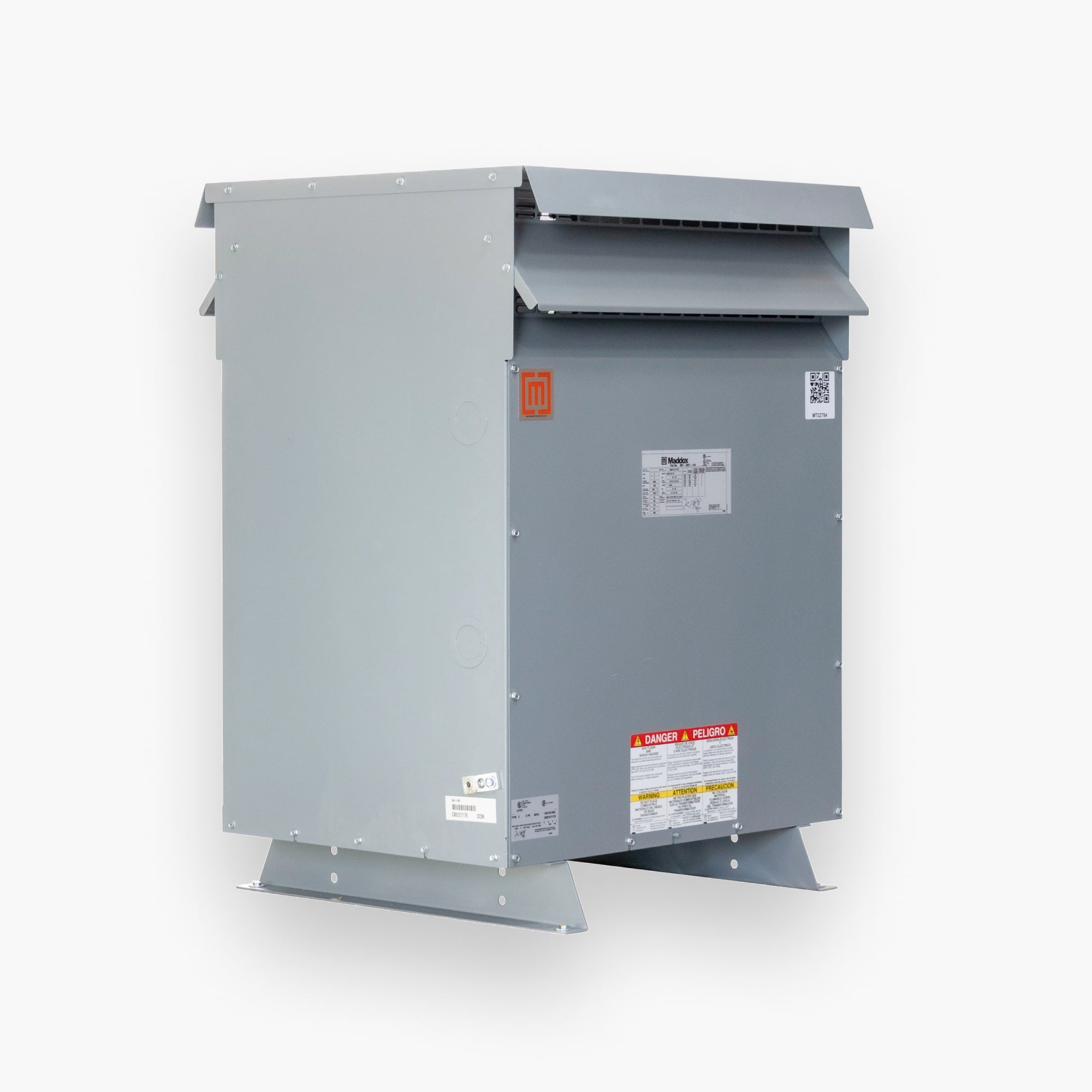

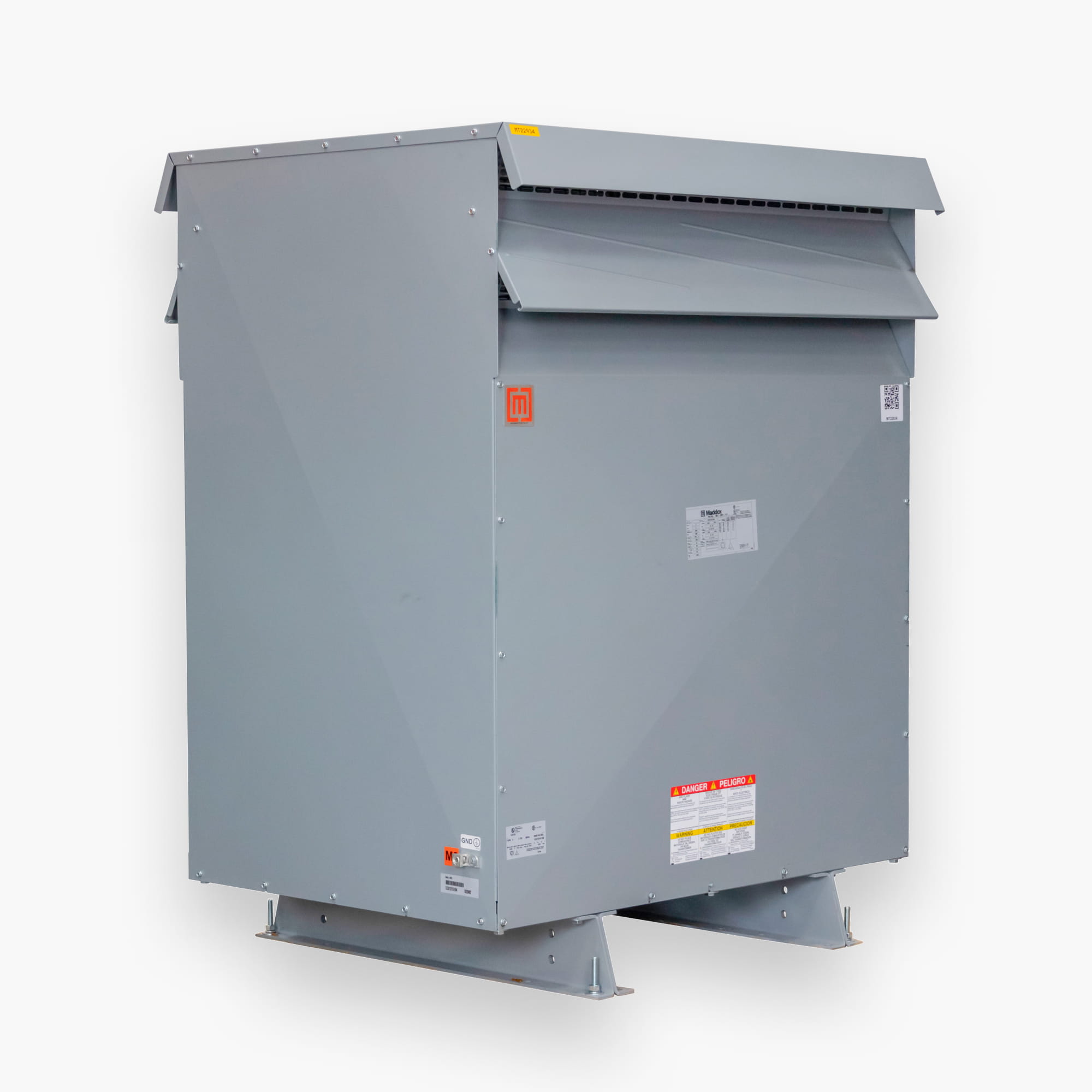

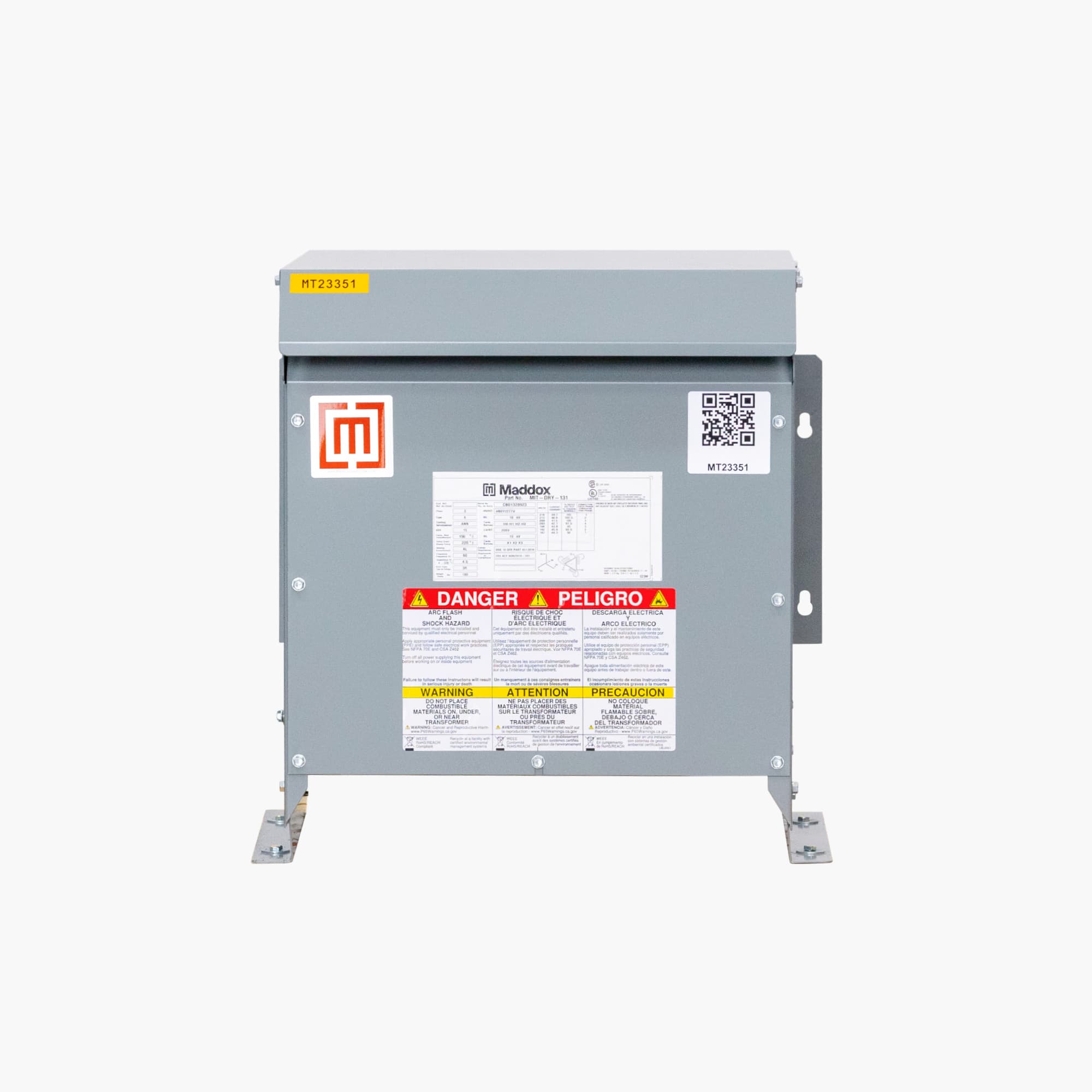

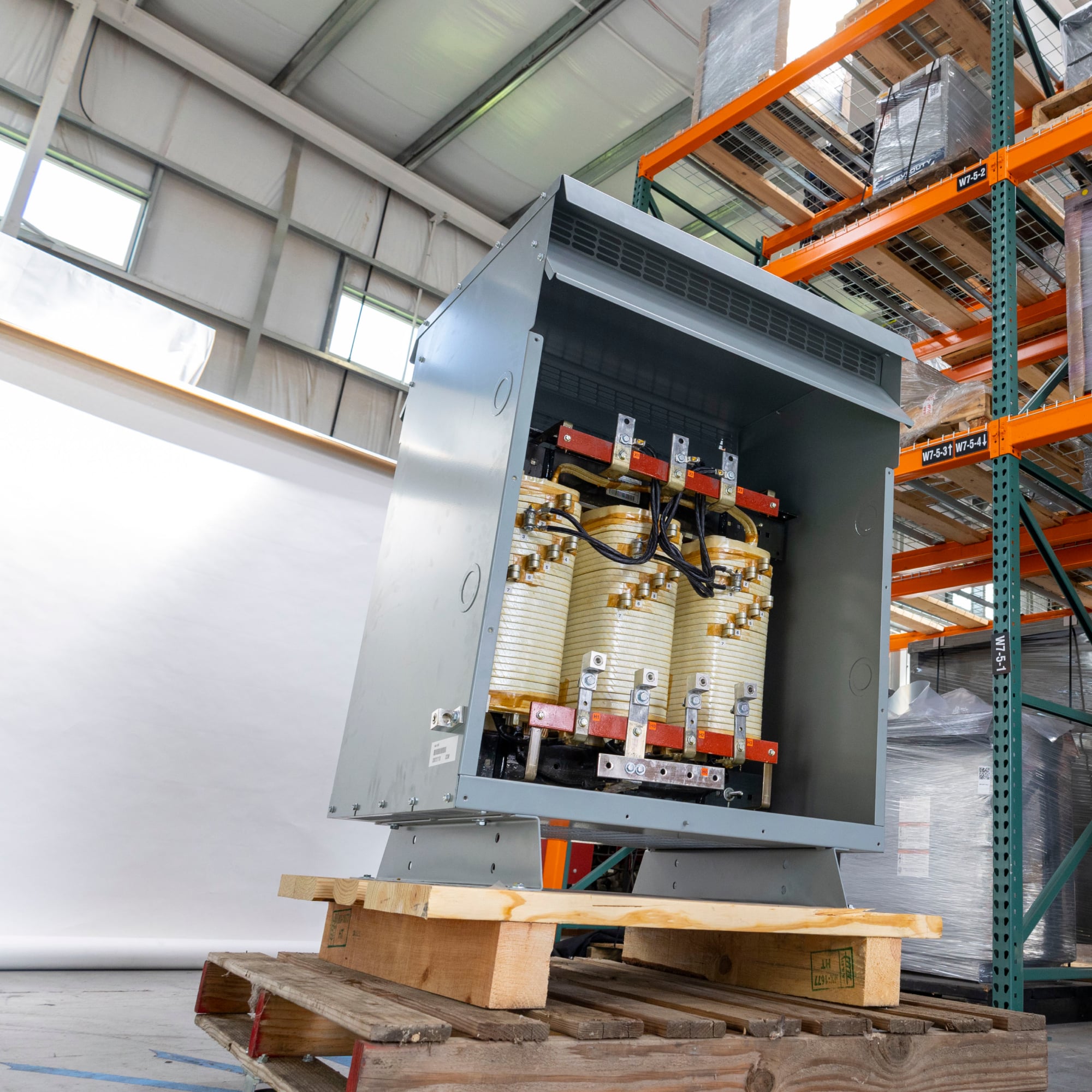

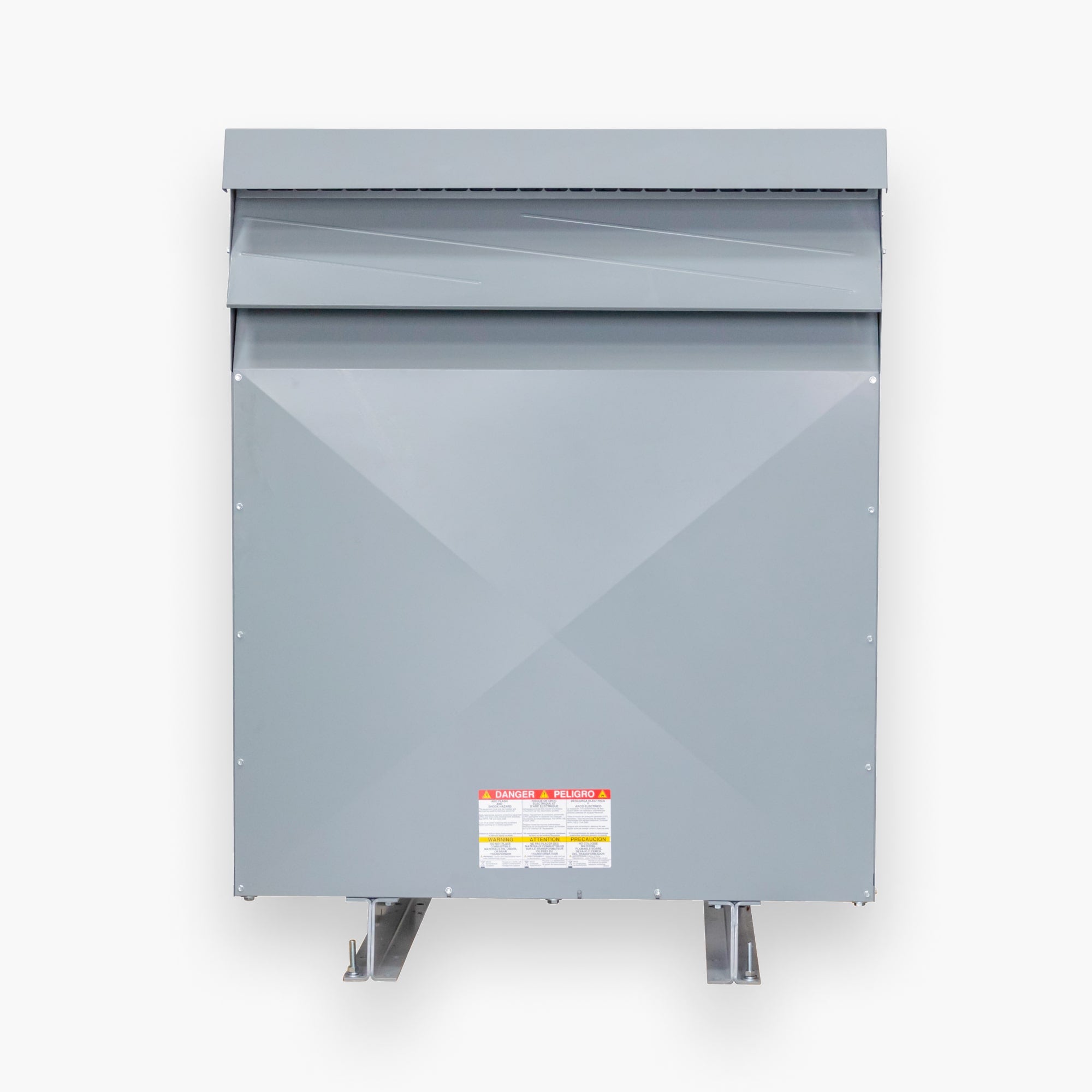

Transformer may appear different than pictured.

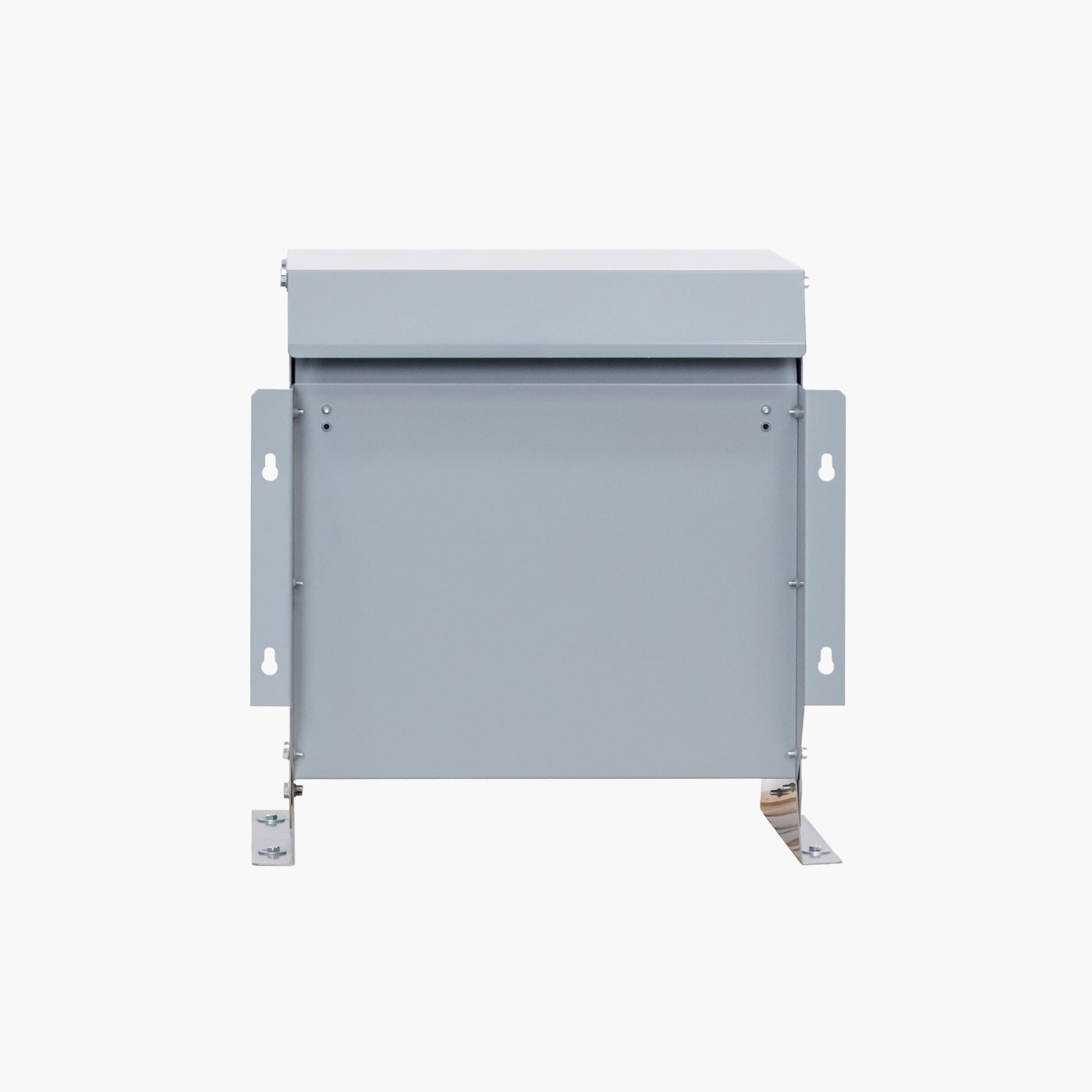

Wall brackets are not included with every model. Contact us if these are required.
Size Guide
| kVA | Amps at 208V | Amps at 380 Y 219 |
|---|---|---|
| 15 | 42 | 23 |
| 30 | 83 | 46 |
| 45 | 125 | 68 |
| 75 | 208 | 114 |
| 112.5 | 312 | 171 |
| 150 | 416 | 228 |
| 225 | 625 | 342 |
| 300 | 833 | 456 |
| 500 | 1388 | 760 |
Dimensions & Weights
| kVA | Dimensions (HxWxD) | Weight (lbs) |
| 15 | 28"x21"x14" | 220 |
| 30 | 32"x27"x17" | 320 |
| 45 | 32"x27"x17" | 385 |
| 75 | 39"x29"x20" | 565 |
| 112.5 | 41"x32"x22" | 725 |
| 150 | 41"x32"x22" | 860 |
| 225 | 52"x41"x25" | 1465 |
| 300 | 52"x41"x36" | 1600 |
| 500 | 66"x51"x41" | 2900 |
Approximate Enclosure Dimensions & Weights
Shipping rates vary, but are generally 10% of the total purchase price.
Transformers deliver in 3-5 business days.
Read more here: Shipping Policy
Ordered the wrong unit, or not sure if a product is right for you? Our web store exchange policy has you covered! We’ll send you a replacement transformer, all you pay for is shipping, plus the difference in unit price. Our policy lasts 30 days. If 30 days have gone by since your purchase, we cannot offer you a refund or exchange, but we still may be interested in buying the unit back. Proof of purchase is required to process a return or exchange.
Read more here: Return and Refund Policy
Buy with confidence. All new and used Maddox transformers are tested and come with a full 5 year warranty against defects. If you experience any problems just give us a call and receive a replacement, free of charge. We'll even pay the shipping!
Read more here: Warranty, Terms and Conditions
