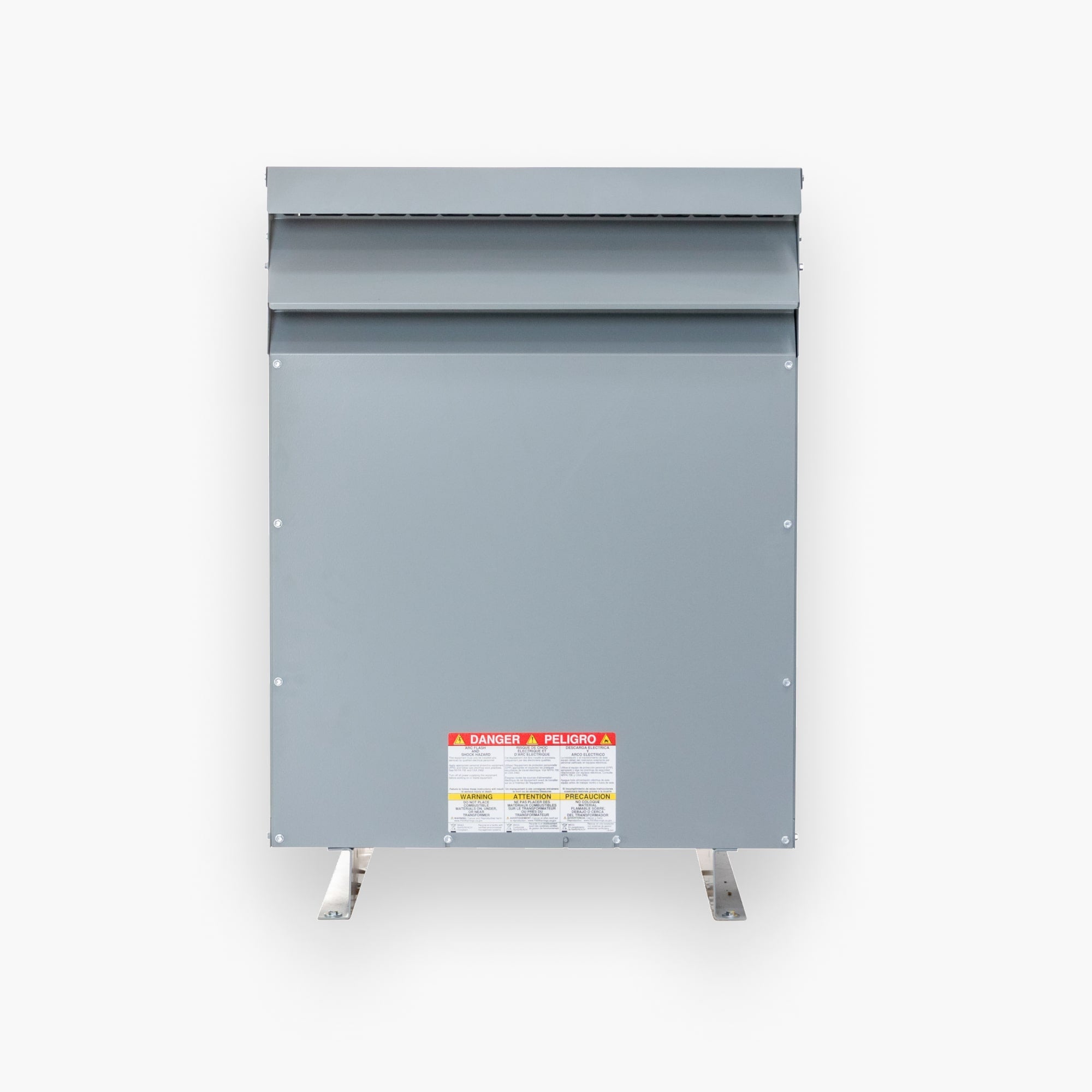

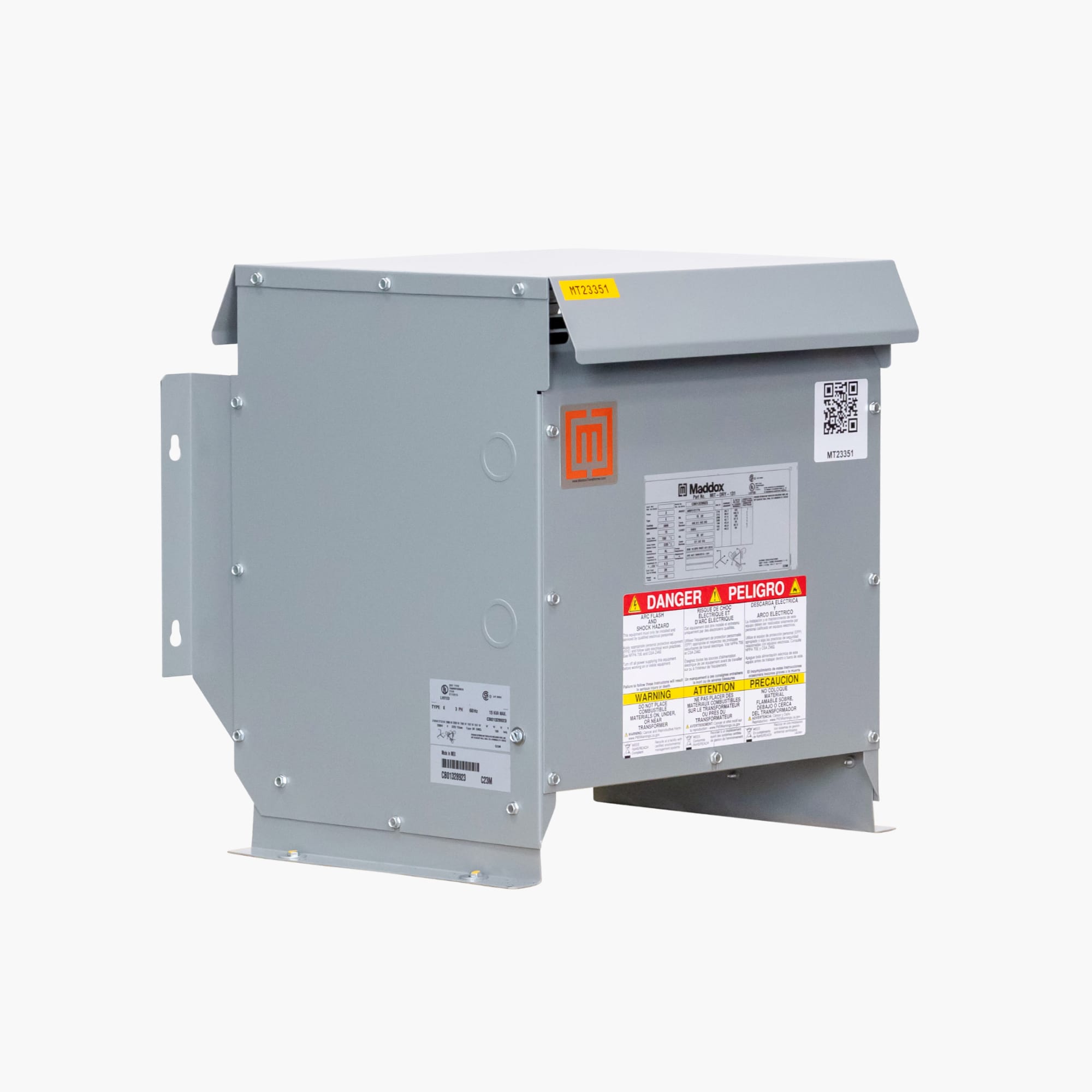

3-phase dry type transformer

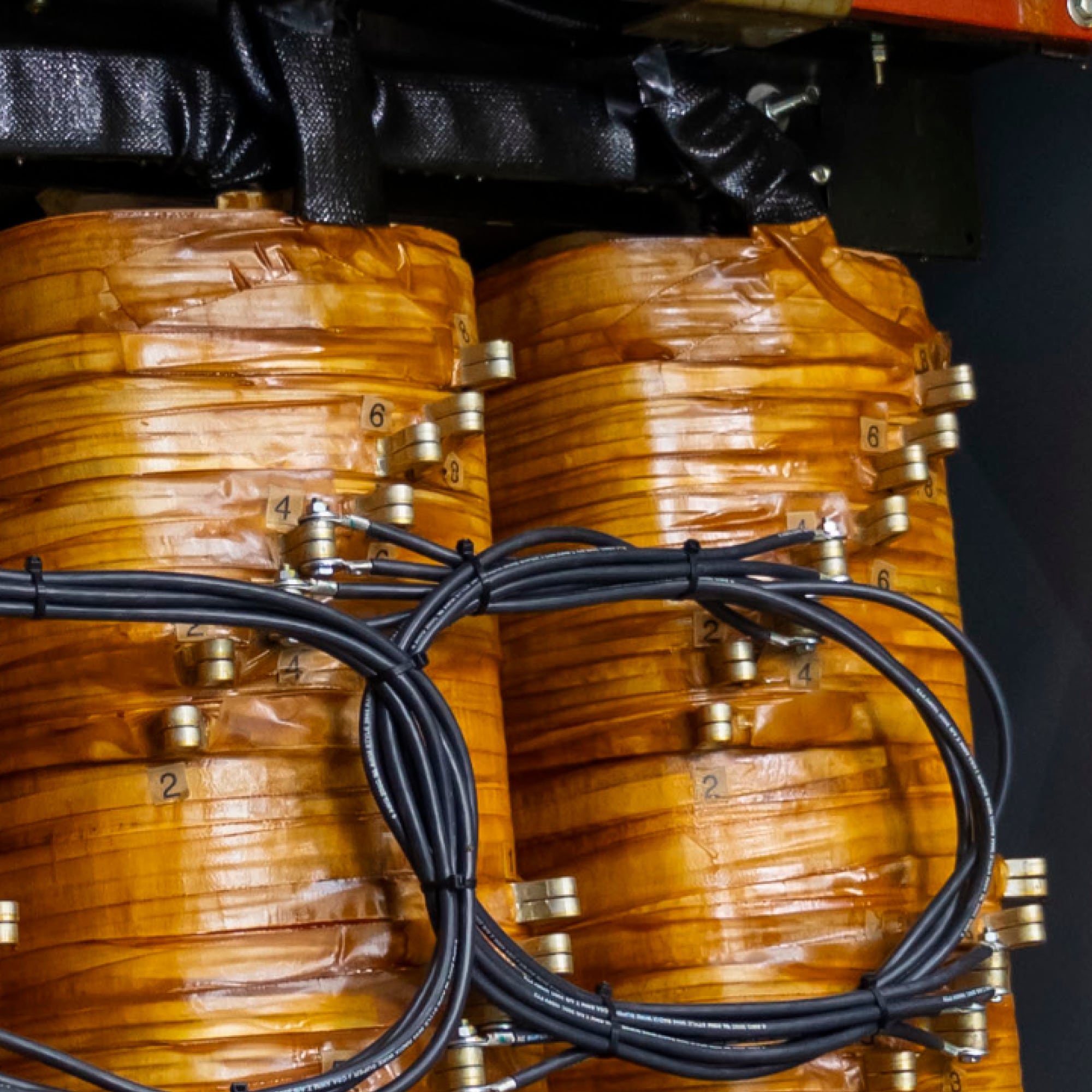

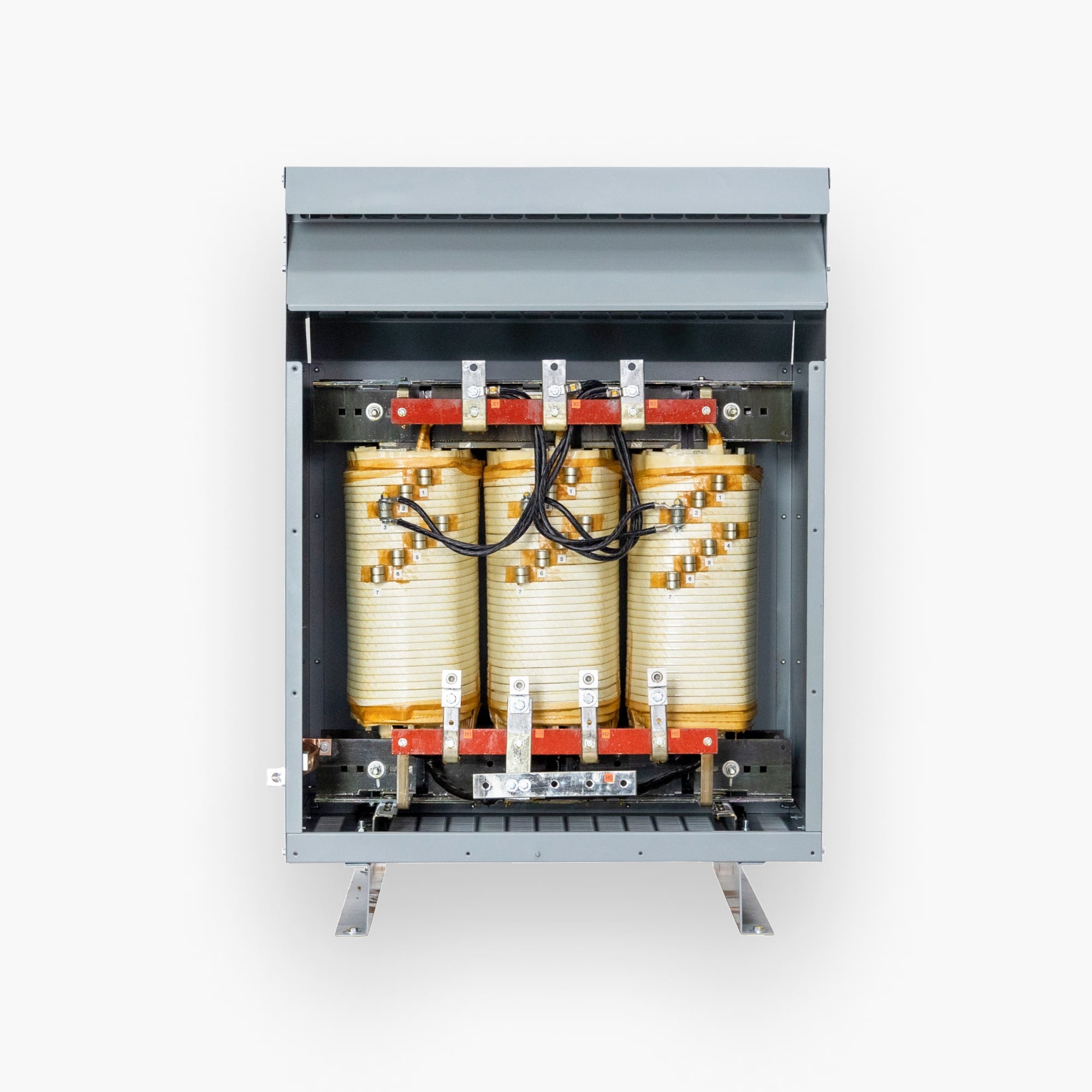

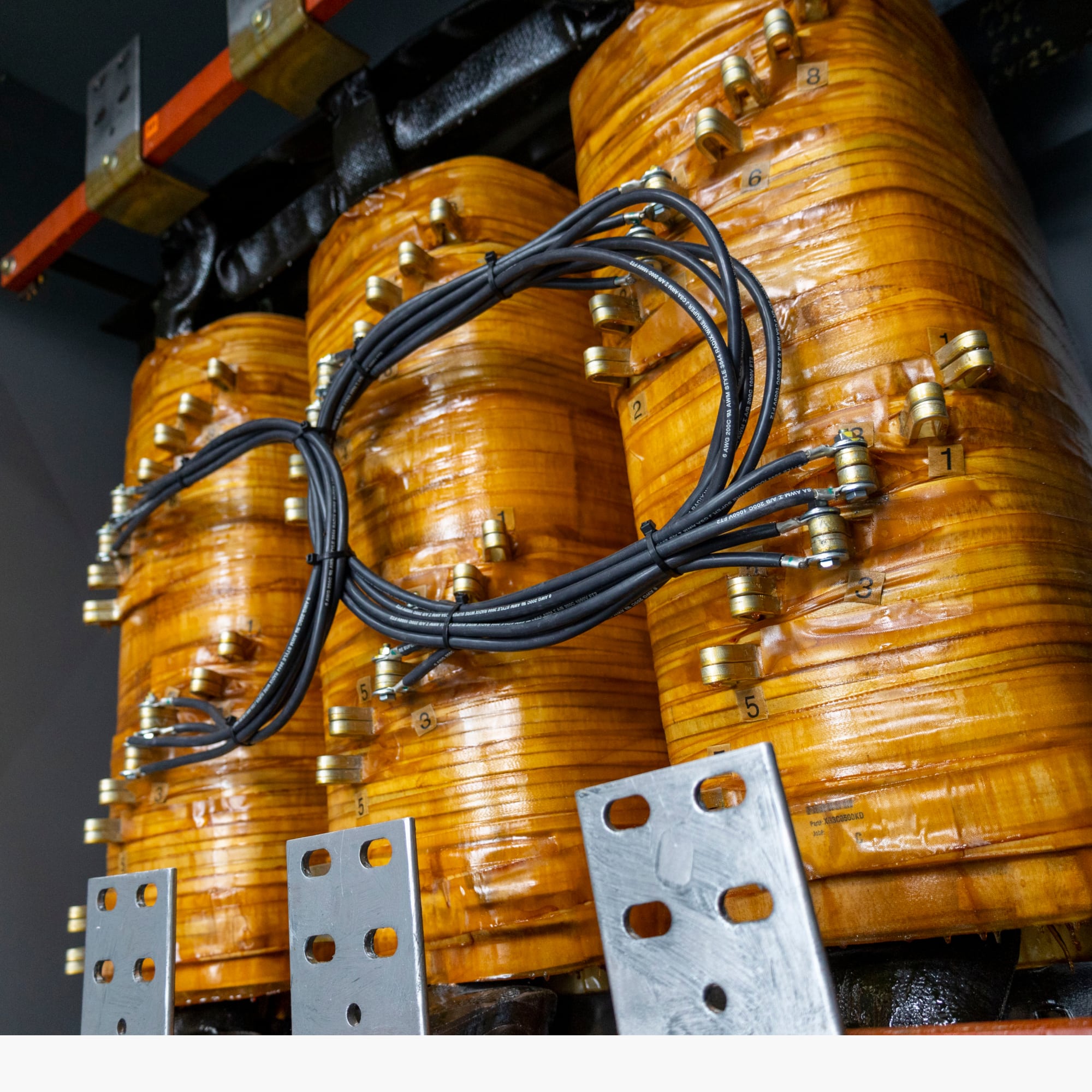

3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer side view

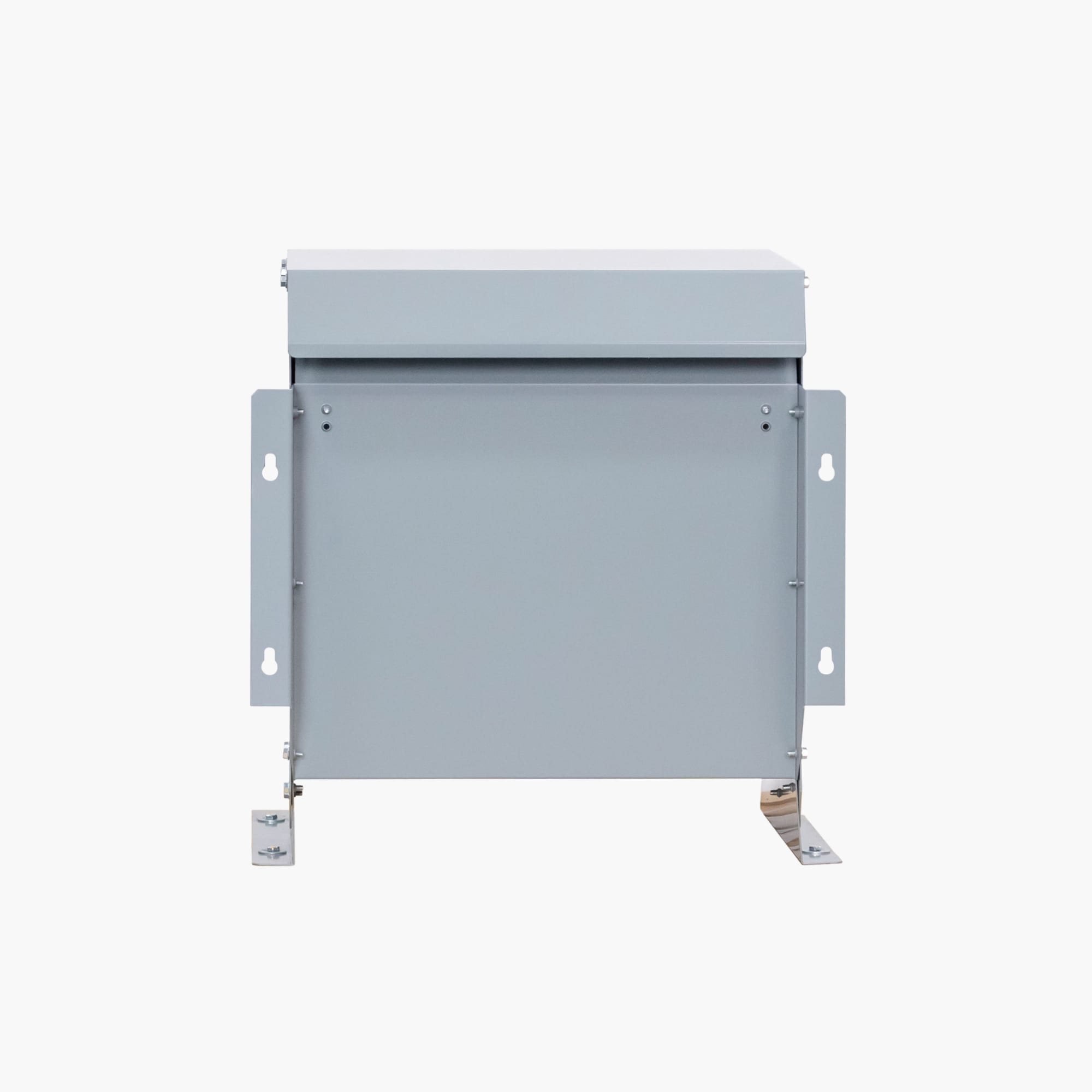

3-phase dry type transformer back view
3-phase dry type transformer ready to ship

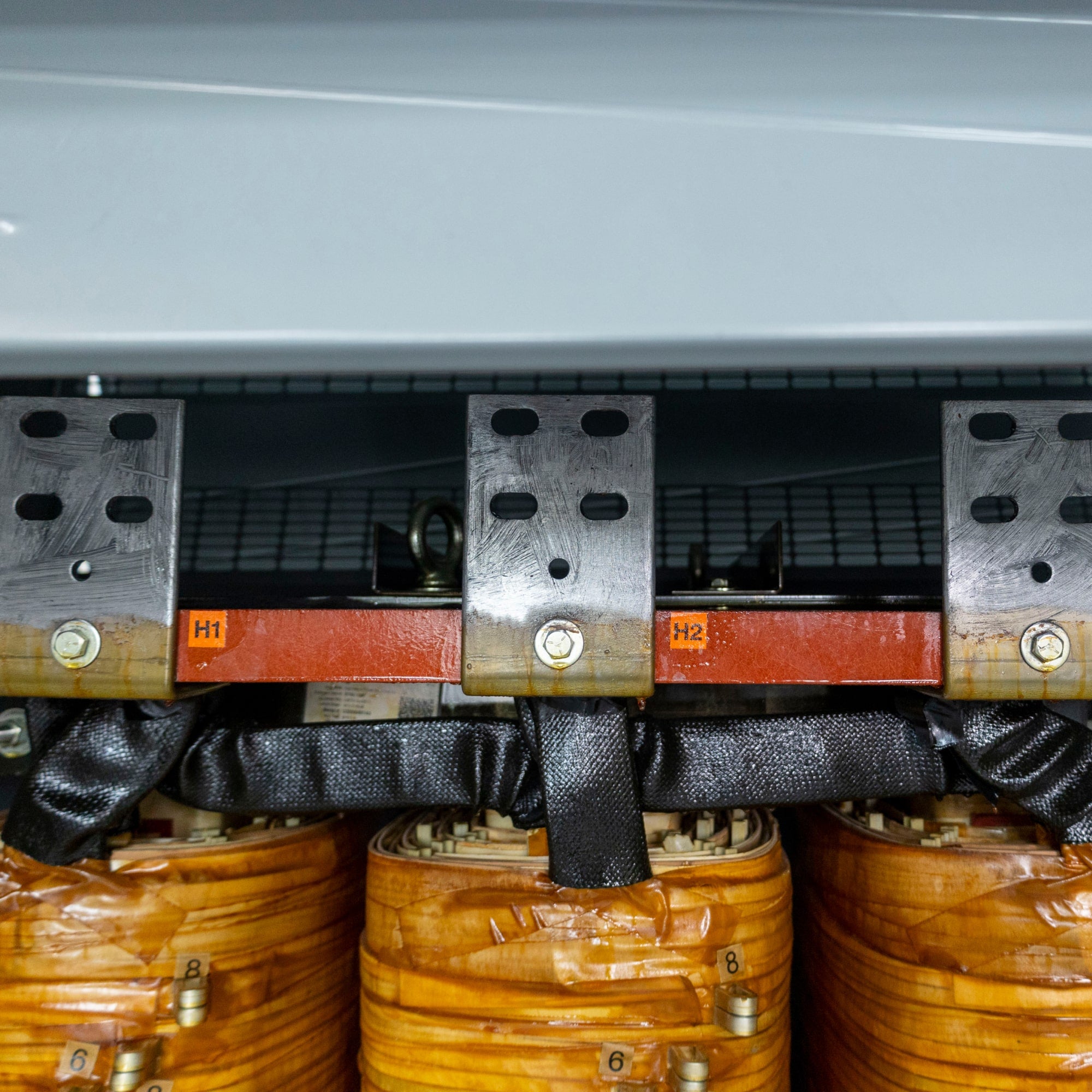

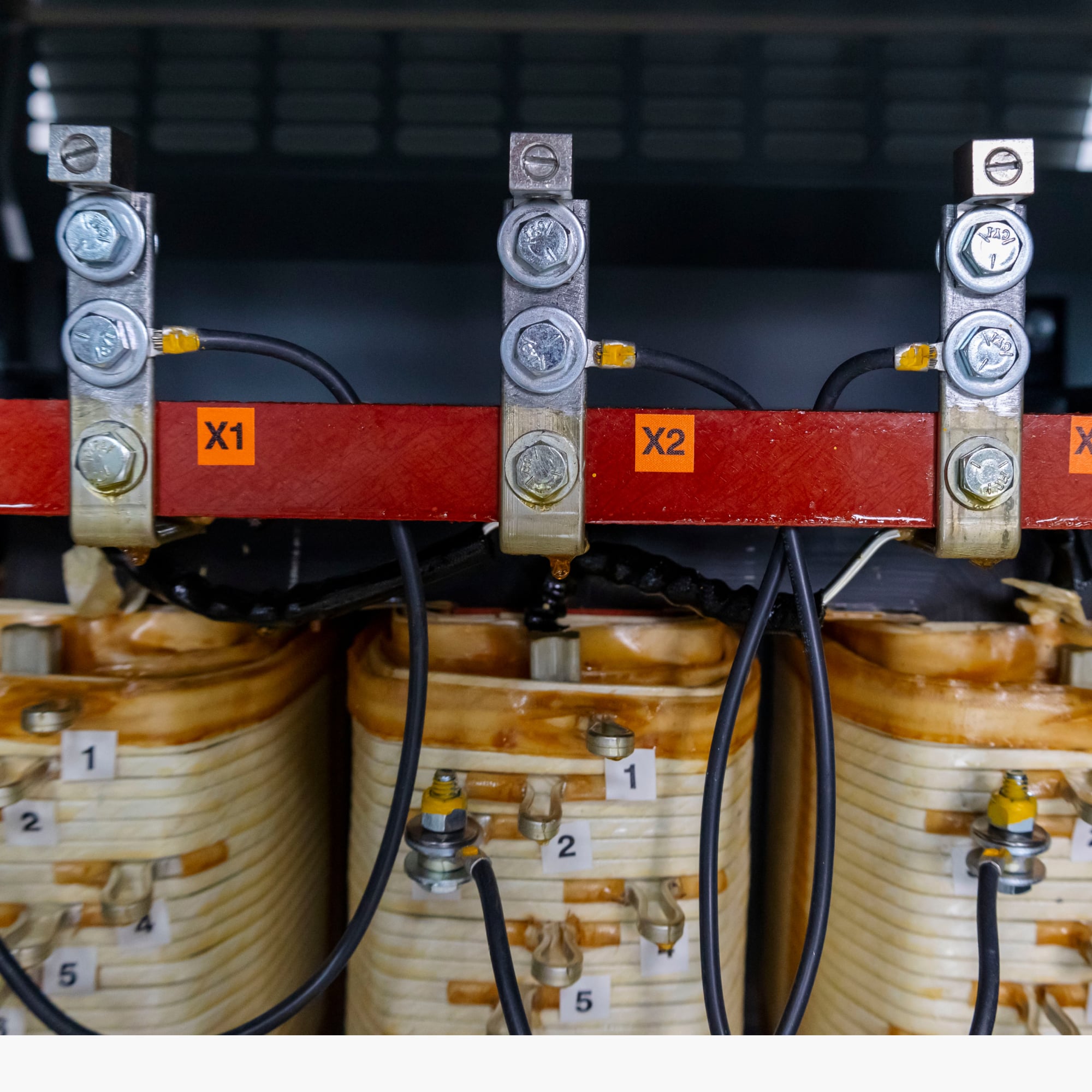

3-phase dry type transformer connections

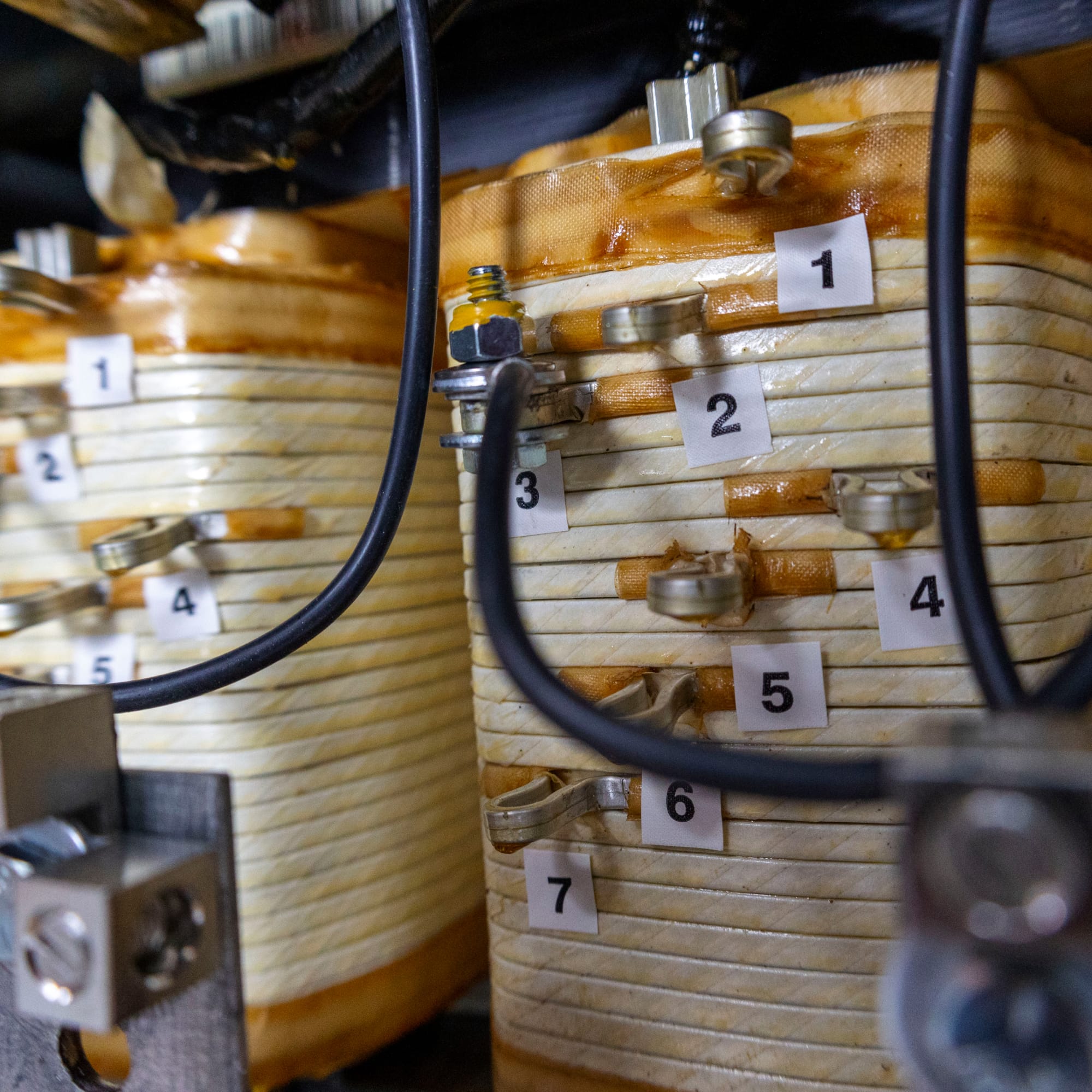

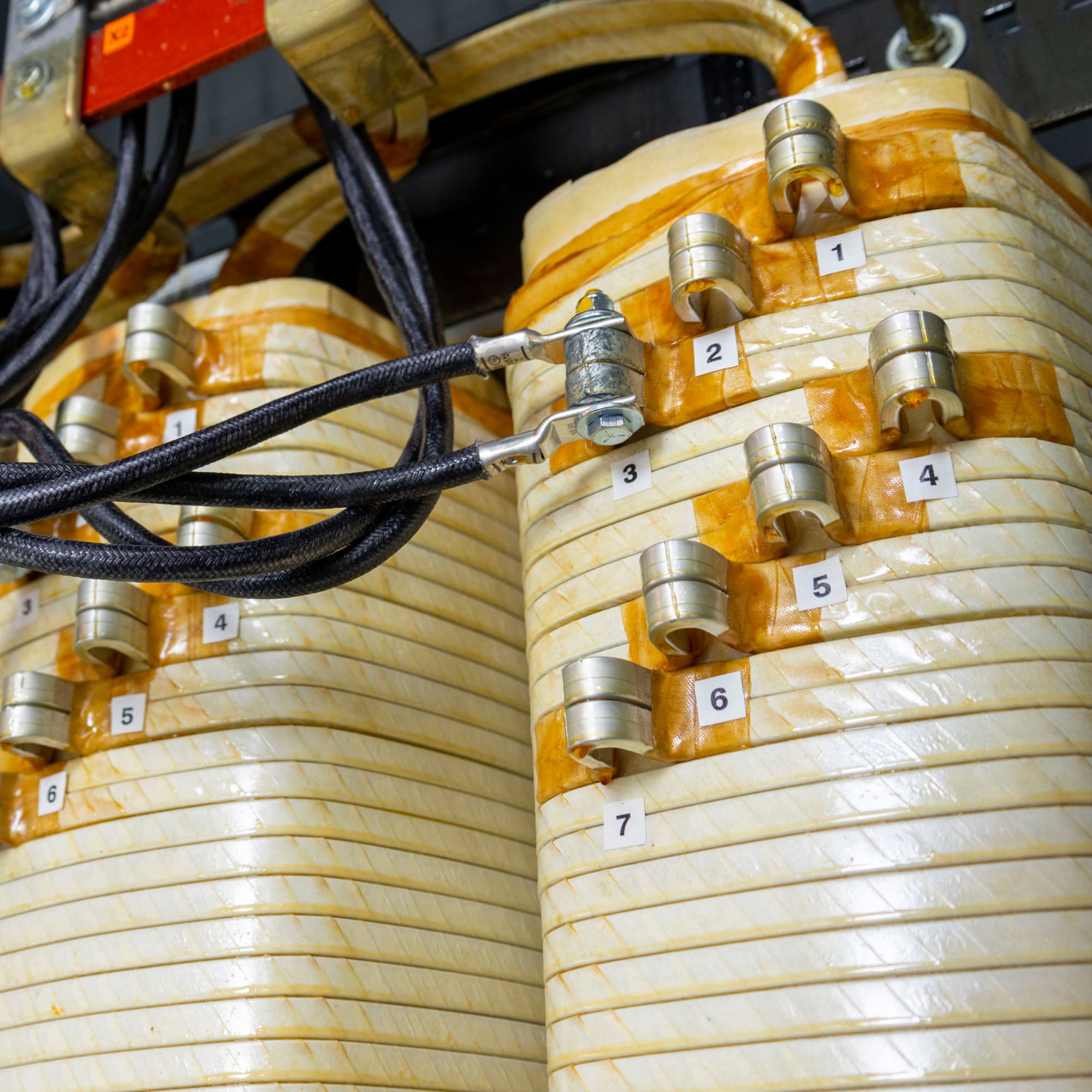

3-phase dry type transformer taps

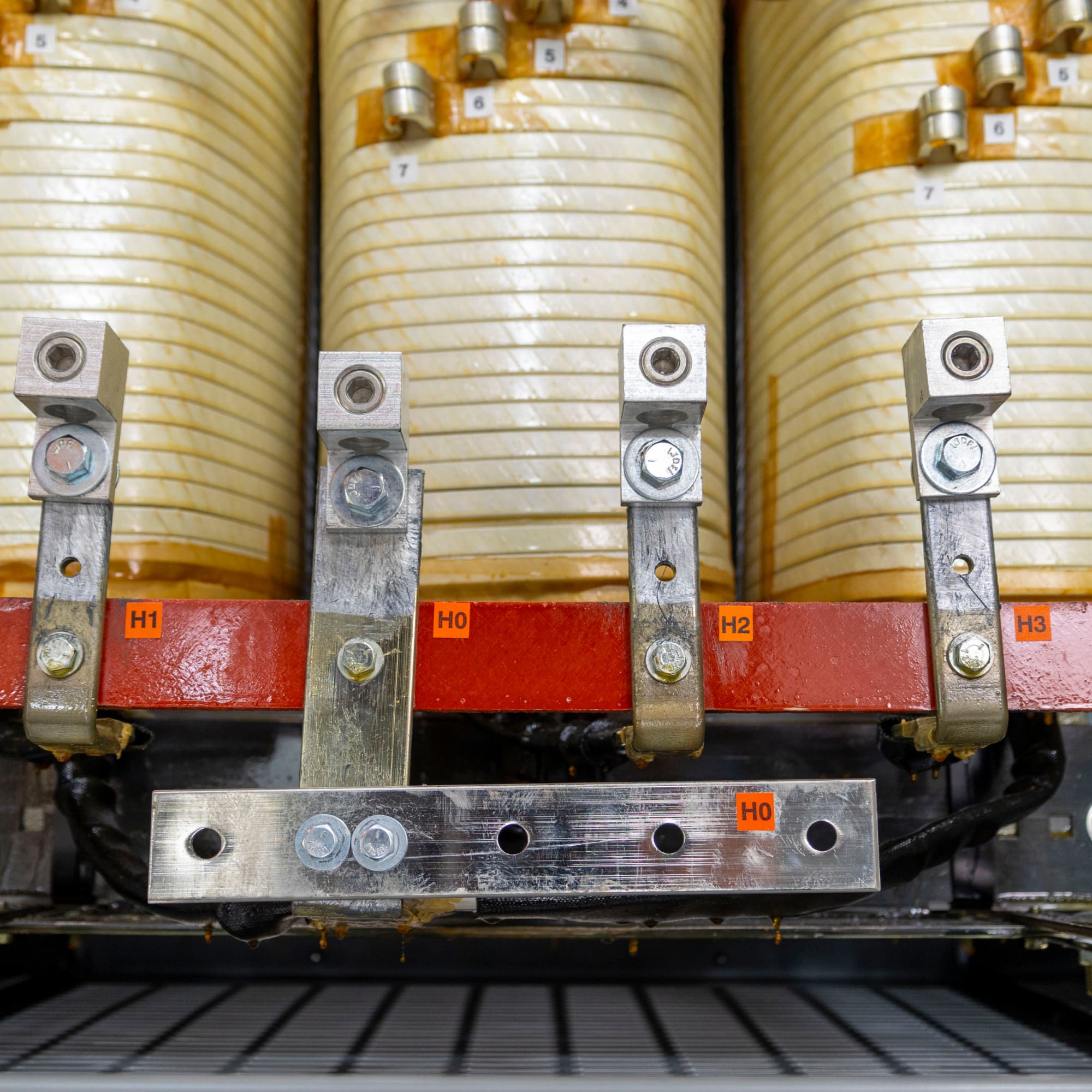

3-phase dry type transformer connections

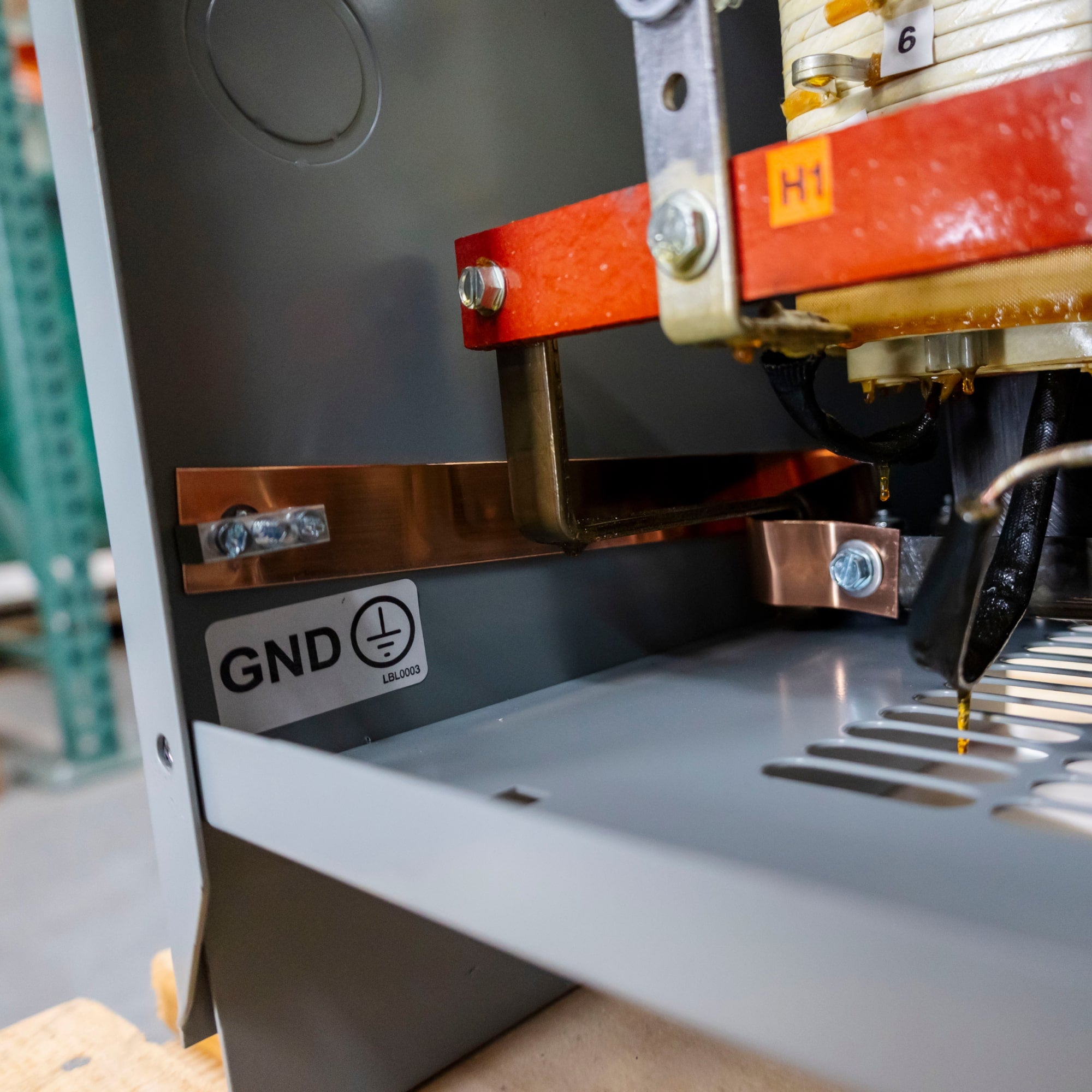

3-phase dry type transformer grounding strap

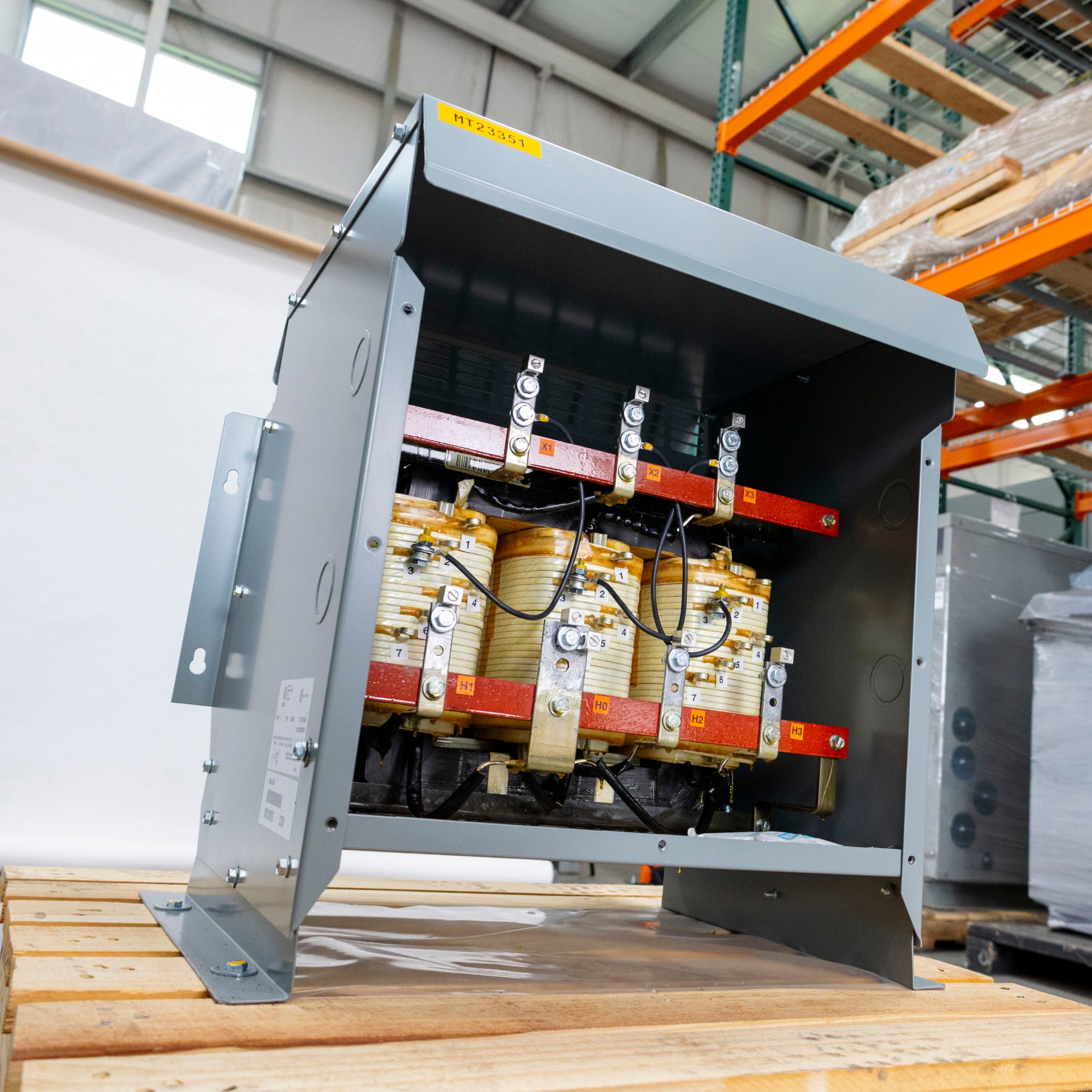

3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer taps

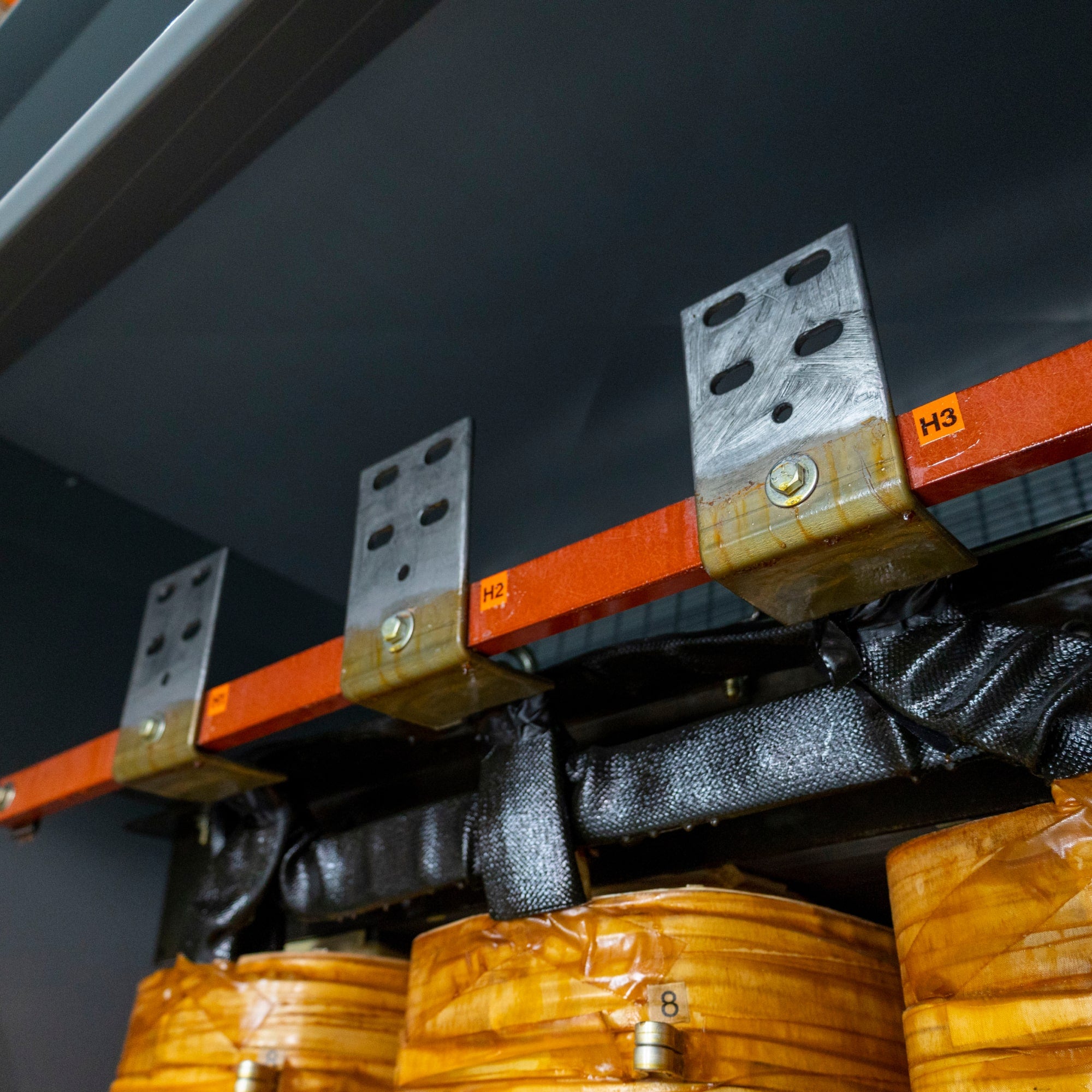

3-phase dry type transformer connections

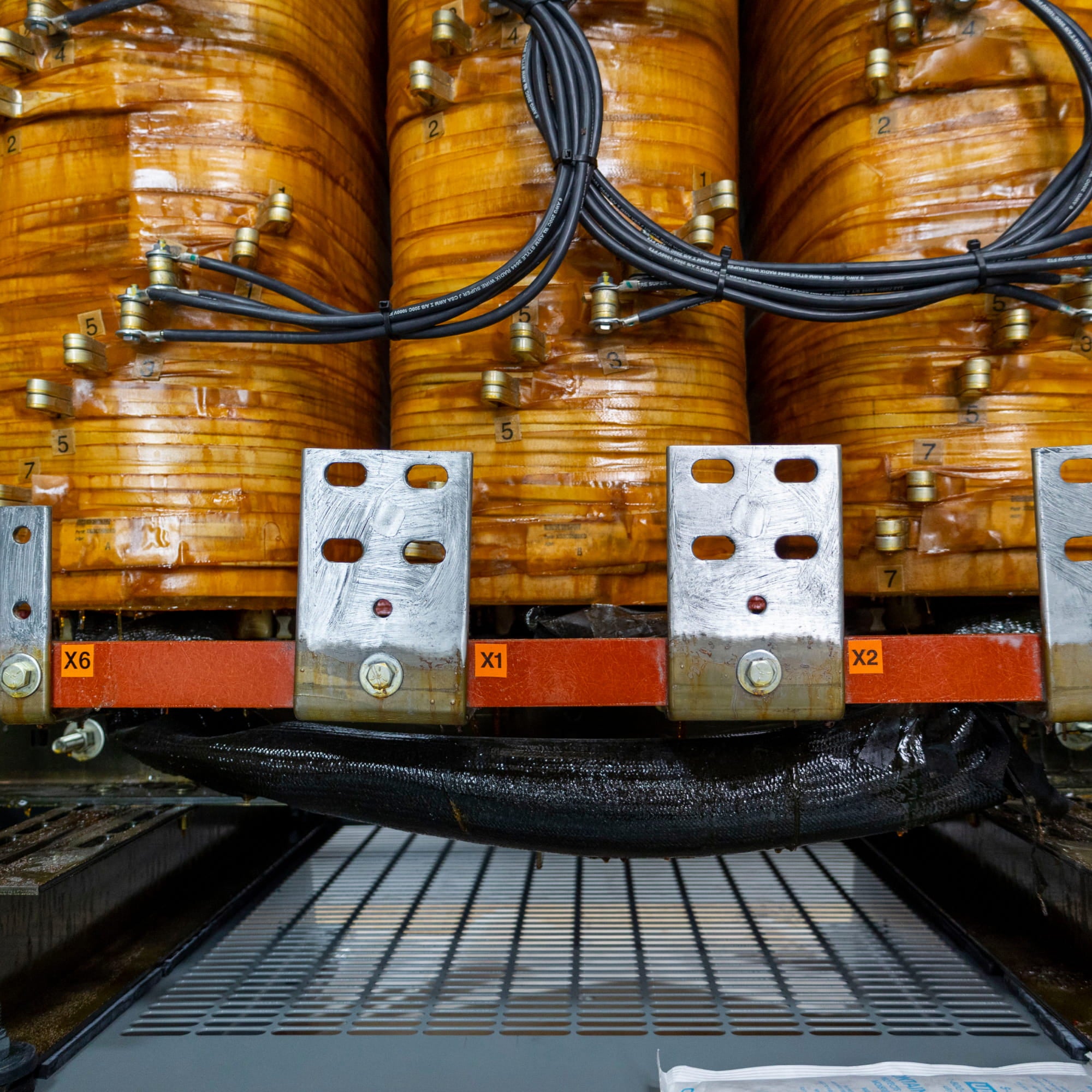

3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer side view
3-phase dry type transformer
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail

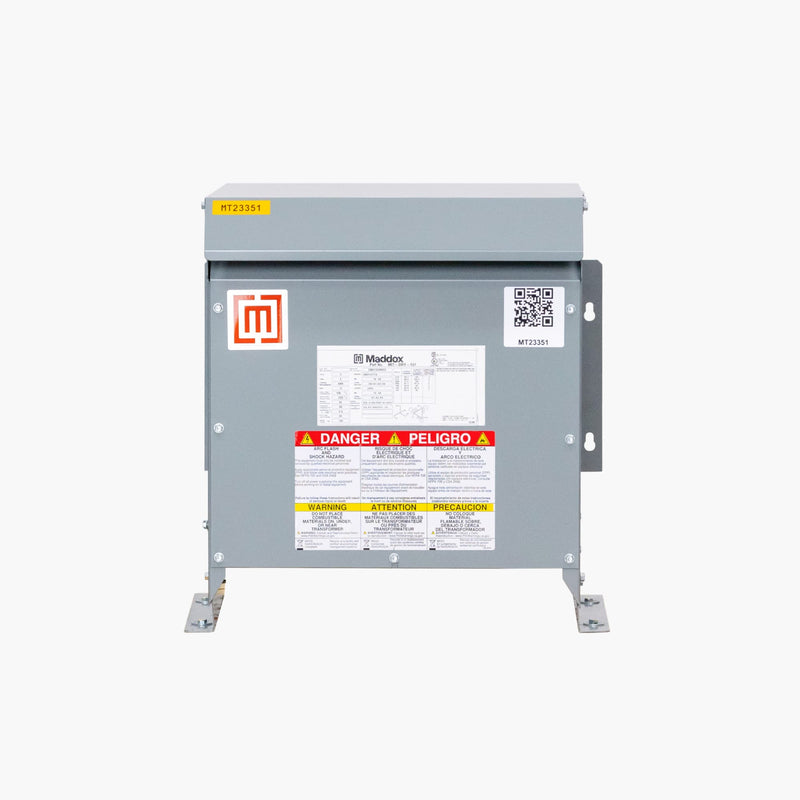

3-Phase 208V Delta - 416 Y/ 240 (Step Up Transformer)

SKU: MIT-DRY-187-3
Size:

Size

New

$2,369

Used

$1,896
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days



Overview

This transformer is designed to convert 3-phase 208v to 3-phase 416 Y 240 to run equipment such as motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, cryptocurrency miners datacenter equipment, and other business machines.

Not sure what to buy? Find out more about how to buy the right transformer.

Primary Voltage: 208 Delta

Secondary Voltage: 416 Y 240

Transformer Specifications:

  • 60 Hz Frequency
  • 150°C Temperature Rise

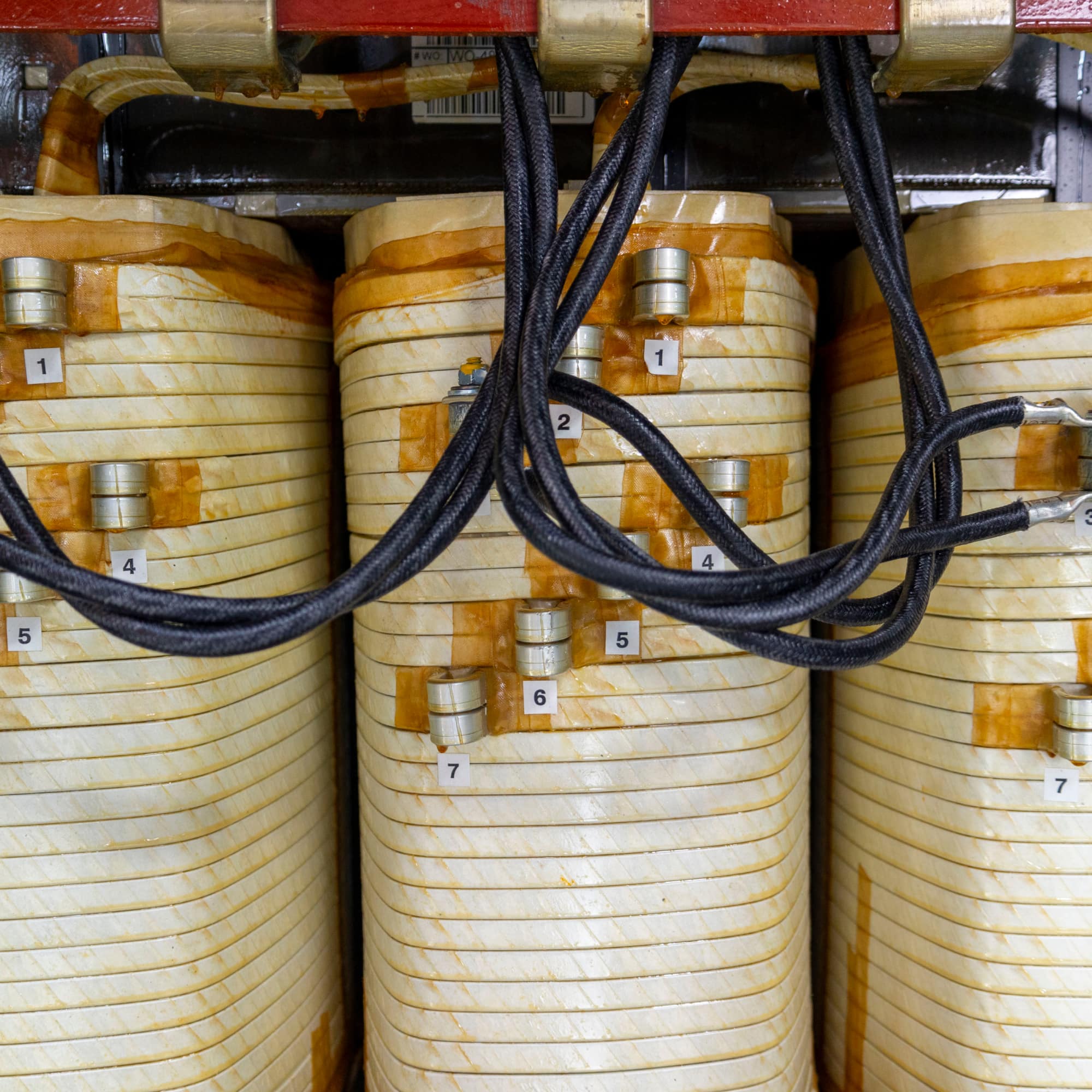

  • Primary Adjustment Taps 2 above, 4 below in 2.5% increments
  • High Efficiency Aluminum Windings
  • 220°C Insulation Class
  • Vacuum pressure Impregnated Windings
  • DOE 2016 Energy Efficient
  • Lugs included up to 75 kVA



Transformer may appear different than pictured.

    416 Y 240 transformers allow you to pull 3 legs of 240 1-phase at full power and are often used in cryptocurrency mining applications.

    Size Guide

    kVA Amps at 208V Amps at 416 Y 240
    15 42 21
    30 83 42
    45 125 62
    75 208 104
    112.5 312 156
    150 416 208
    225 625 312
    300 833 416
    500 1388

    694



    Dimensions & Weights

    kVA Dimensions (HxWxD) Weight (lbs)
    15 28" x 21" x 14" 220
    30 32" x 27" x 17" 320
    45 32" x 27" x 17" 385
    75 39" x 29" x 20" 565
    112.5 41" x 32" x 22" 725
    150 41" x 32" x 22" 860
    225 52" x 41" x 36" 1465
    300 52" x 41" x 36" 1600
    500 66" x 51" x 41" 2900


     Approximate Enclosure Dimensions & Weights



    Shipping rates vary, but are generally 10% of the total purchase price.

    Transformers deliver in 5-7 business days.

    Read more here: Shipping Policy

    Ordered the wrong unit, or not sure if a product is right for you? Our web store exchange policy has you covered! We’ll send you a replacement transformer, all you pay for is shipping, plus the difference in unit price. Our policy lasts 30 days. If 30 days have gone by since your purchase, we cannot offer you a refund or exchange, but we still may be interested in buying the unit back. Proof of purchase is required to process a return or exchange.

    Read more here: Return and Refund Policy

    Buy with confidence. All new and used Maddox transformers are tested and come with a full 5 year warranty against defects. If you experience any problems just give us a call and receive a replacement, free of charge. We'll even pay the shipping!

    Read more here: Warranty, Terms and Conditions
