3-Phase 240V Delta - 380 Y 219 (Step Up Transformer)
Size
Estimated Delivery Date: (call to expedite)
Transformer is in stock! Delivers in 5 - 7 business days
Overview
This transformer is designed to convert 3-phase 240v to 3-phase 380 Y 219 to run equipment such as panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, cryptocurrency miners, and other business machines.
Not sure what to buy? Find out more about how to buy the right transformer.
Primary Voltage: 240 Delta
Secondary Voltage: 380 Y 219
Transformer Specifications:
- 60 Hz Frequency
- 150°C Temperature Rise
- Primary Adjustment Taps 2 above, 4 below in 2.5% increments
- High Efficiency Aluminum Windings
- 220°C Insulation Class
- Vacuum pressure Impregnated Windings
- DOE 2016 Energy Efficient

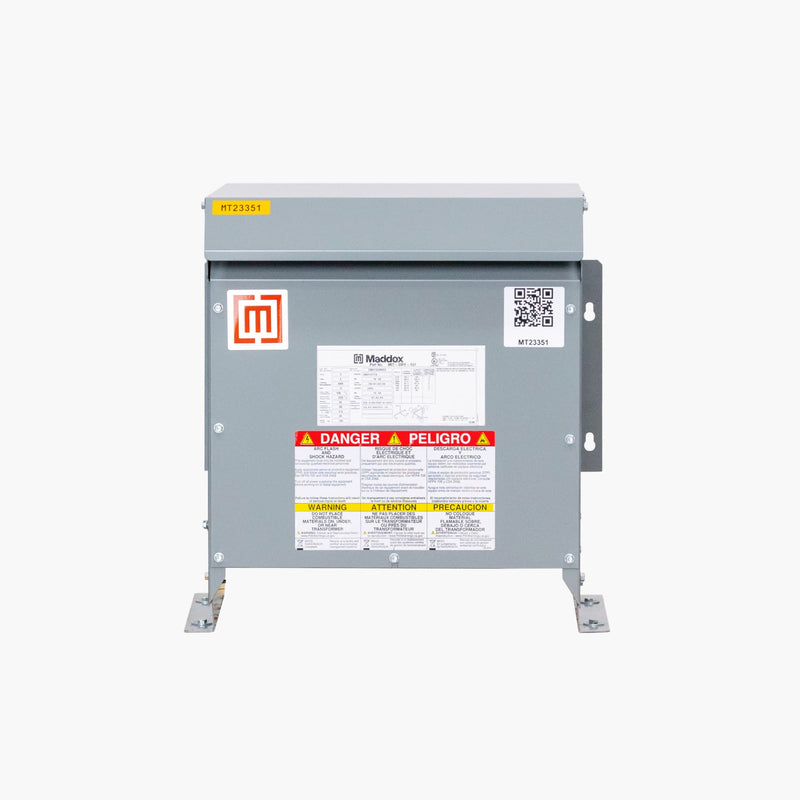

Transformer may appear different than pictured.
Size Guide
| kVA | Amps at 240V | Amps at 380 Y 219 |
|---|---|---|
| 15 | 36 | 23 |
| 30 | 72 | 46 |
| 45 | 108 | 68 |
| 75 | 180 | 114 |
| 112.5 | 271 | 171 |
| 150 | 361 | 228 |
| 225 | 541 | 342 |
| 300 | 722 | 456 |
| 500 | 1203 |
760 |
Dimensions & Weights
| kVA | Dimensions (HxWxD) | Weight (lbs) |
| 15 | 28"x21"x14" | 245 |
| 30 | 32"x27"x17" | 375 |
| 45 | 32"x27"x17" | 395 |
| 75 | 39"x29"x20" | 750 |
| 112.5 | 41"x32"x22" | 740 |
| 150 | 41"x32"x22" | 915 |
| 225 | 52"x41"x25" | 1450 |
| 300 | 52"x41"x36" | 1650 |
| 500 | 66"x51"x41" | 2750 |
Approximate Enclosure Dimensions & Weights
Shipping rates vary, but are generally 10% of the total purchase price.
Transformers deliver in 5-7 business days.
