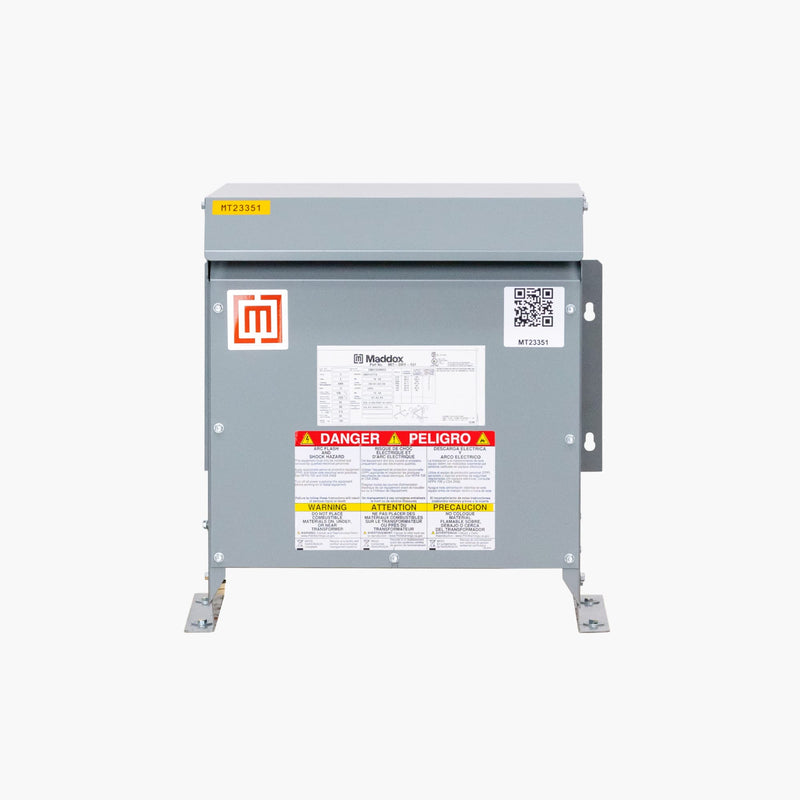

3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer back view
3-phase dry type transformer ready to ship
3-phase dry type transformer connections
3-phase dry type transformer taps
3-phase dry type transformer connections
3-phase dry type transformer grounding strap
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer taps
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer side view
3-phase dry type transformer
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail

3-Phase 240V Delta - 400 Y 231 (Step Up Transformer)

SKU: MIT-DRY-211-2
Size:

Size

New

$2,808

Used

$2,246
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days



This transformer is designed to convert 3-phase 240v to 400 Y 231 to run equipment such as motors, CNC machines, pumps, printing equipment, fabrication tools, cryptocurrency miners, and other business machines.



Primary: 240 Delta

Secondary: 400 Y 231



Transformer Specifications:

  • CSA and UL Approved
  • 60 Hz Frequency
  • 150°C Temperature Rise
  • Primary Adjustment Taps 2 above, 4 below in 2.5% increments
  • High Efficiency Aluminum Windings
  • 220°C Insulation Class
  • Vacuum pressure Impregnated Windings
  • NEMA 3R Outdoor/Indoor Enclosure
  • DOE 2016 Energy Efficient
  • Lugs included up to 75 kVA

Transformer may appear different than pictured.



Size Guide

kVA Amps at 240V Amps at 400 Y 231
15 36 22
30 72 43
45 108 65
75 180 108
112.5 271 162
150 361 217
225 541 325
300 722 433
500 1203

722

Dimensions & Weights

kVA Dims (HxWxD)
Weight (Lbs)
15 kVA 28"x21"x14"
220
30 kVA 32"x27"x17"
320
45 kVA 32"x27"x17"
385
75 kVA 39"x29"x20"
565
112.5 kVA 41"x32"x22"
725
150 kVA 41"x32"x22" 860



Approximate Enclosure Dimensions & Weights


Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
