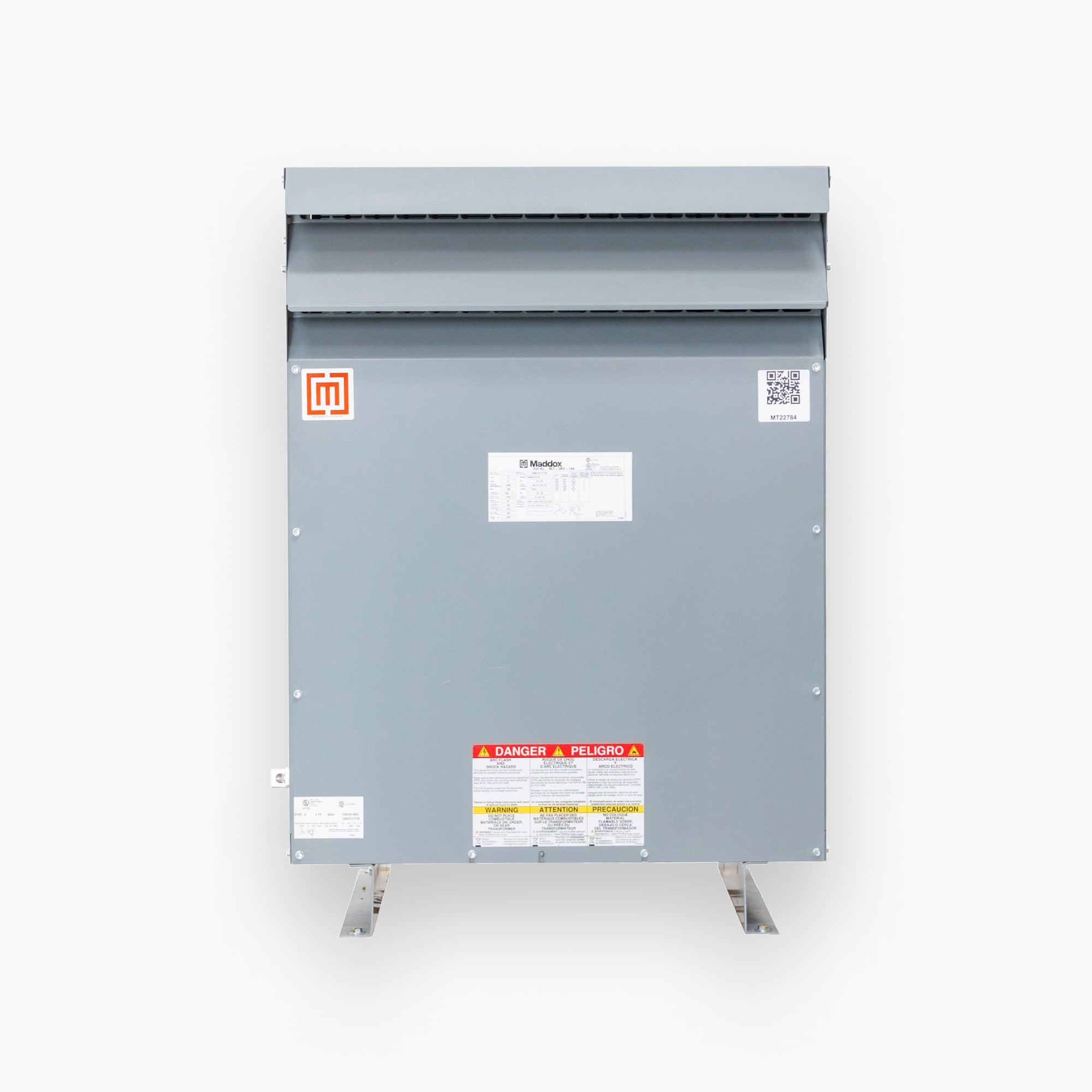

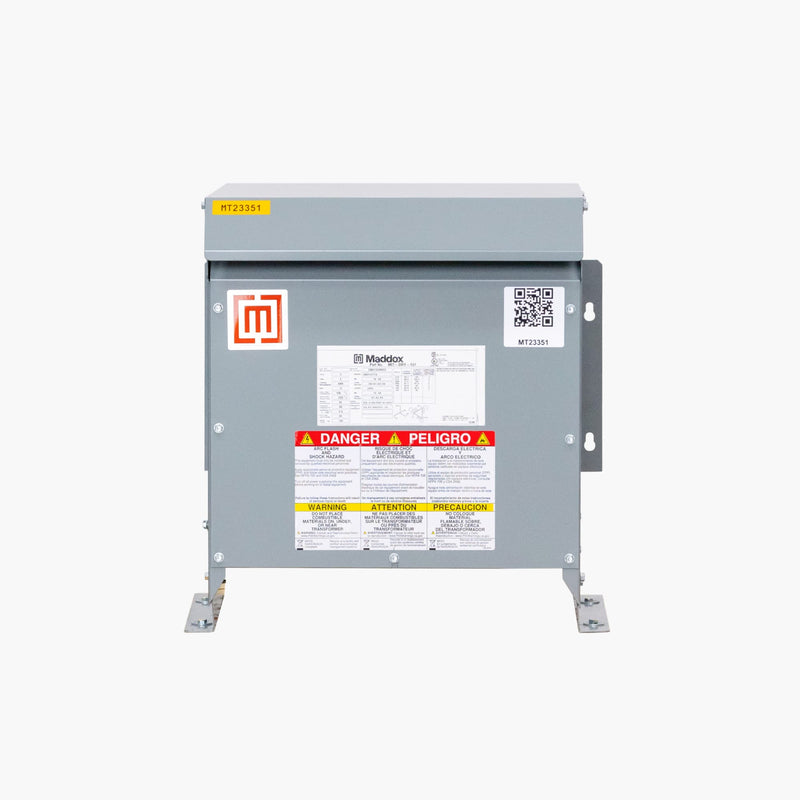

3-phase dry type transformer

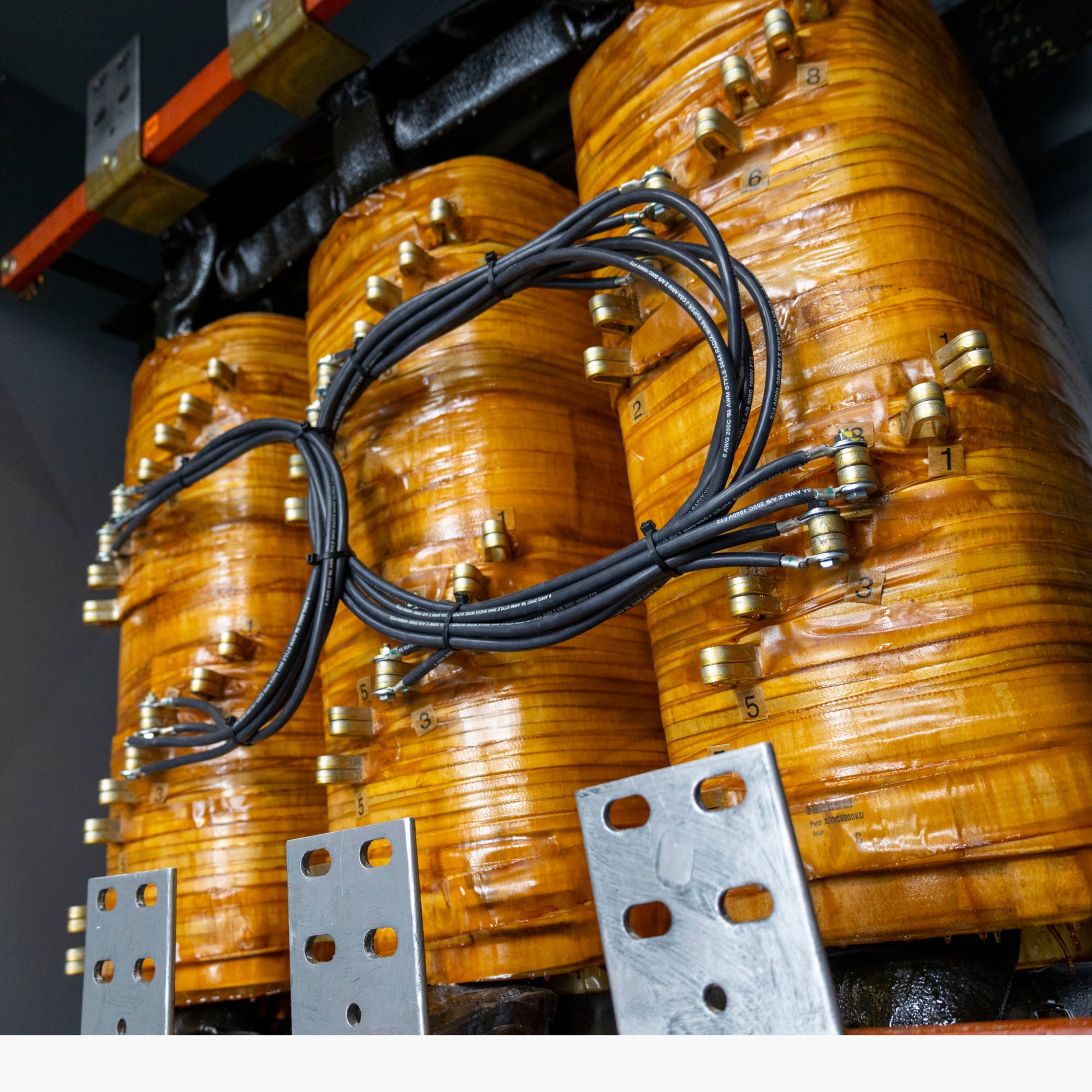

3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer back view

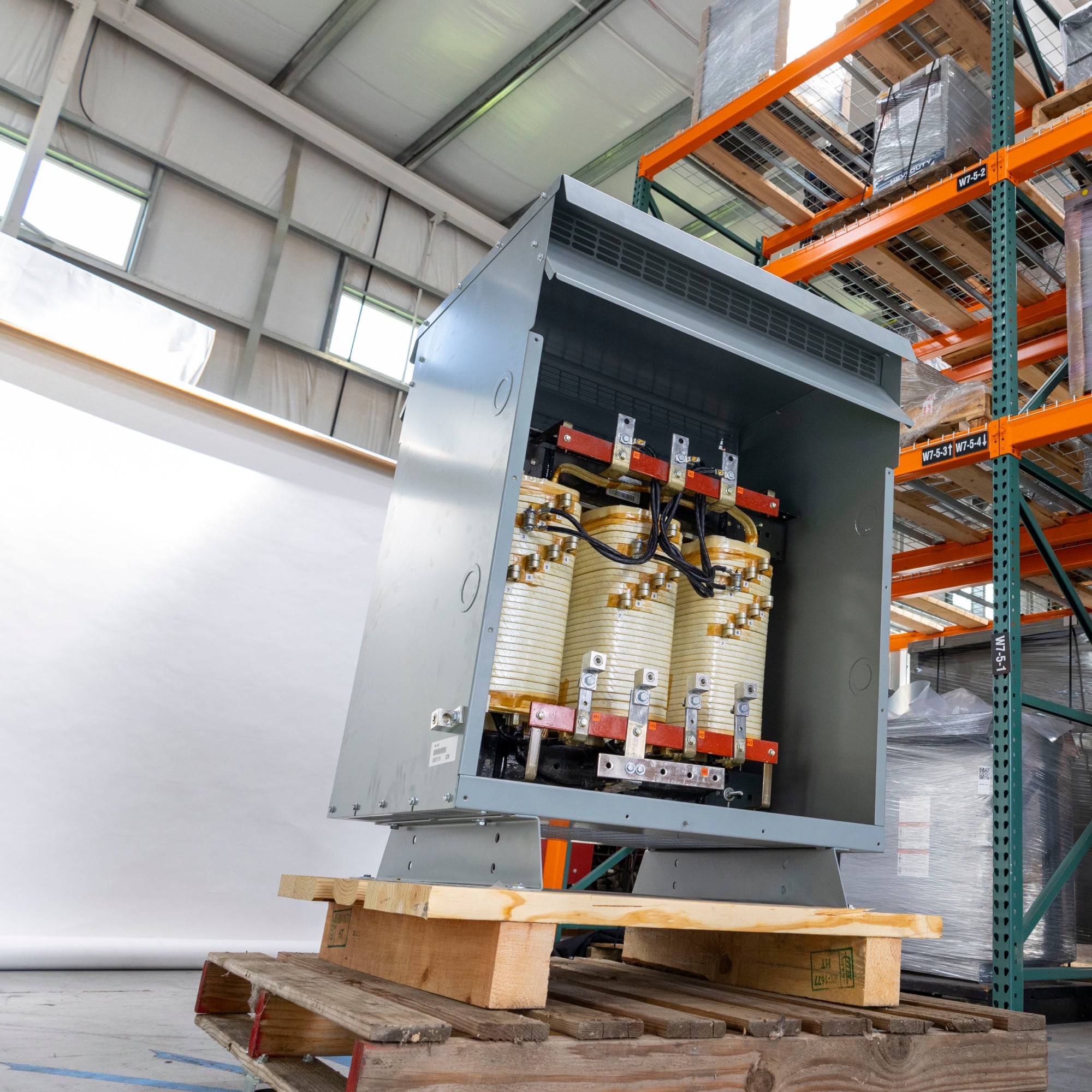

3-phase dry type transformer ready to ship

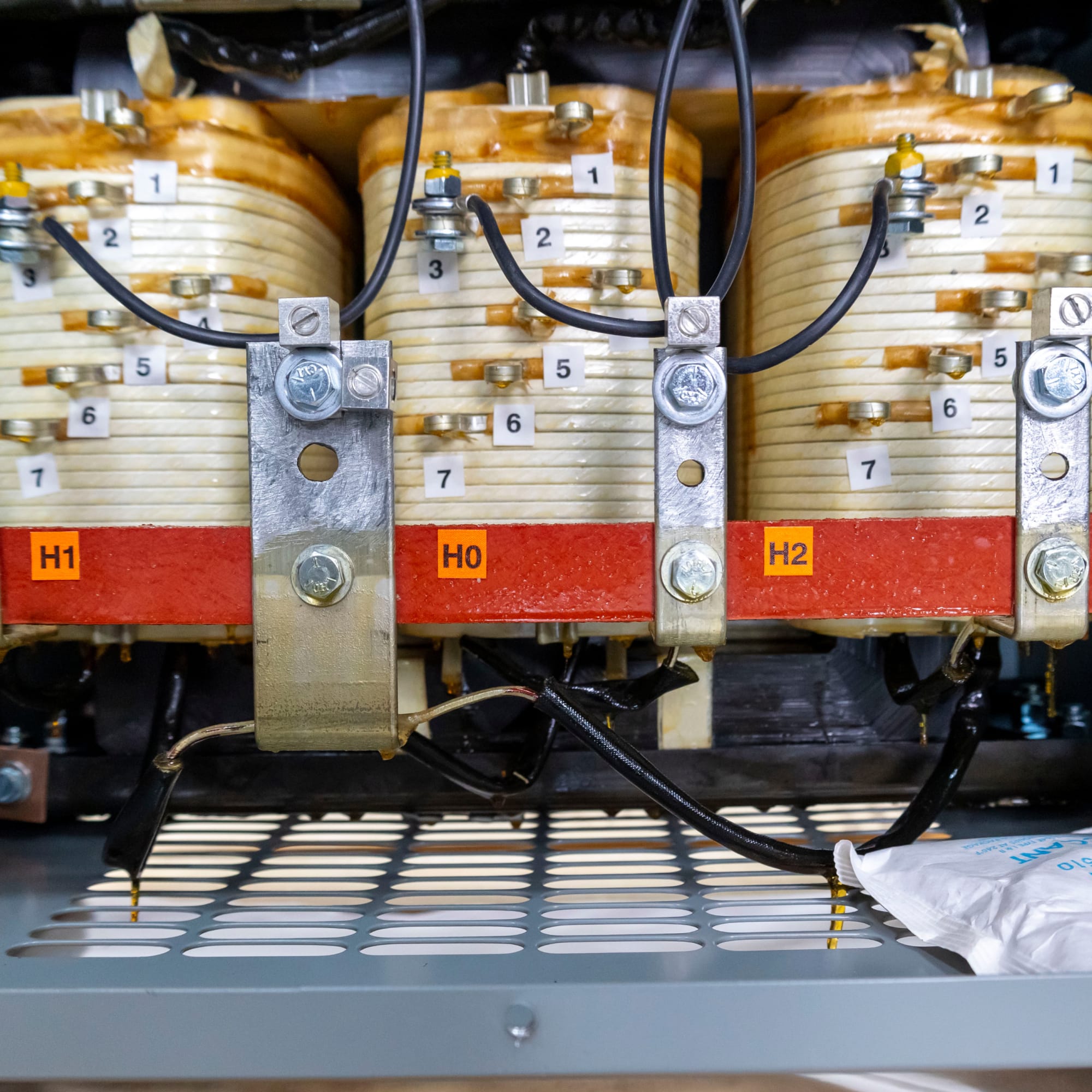

3-phase dry type transformer connections

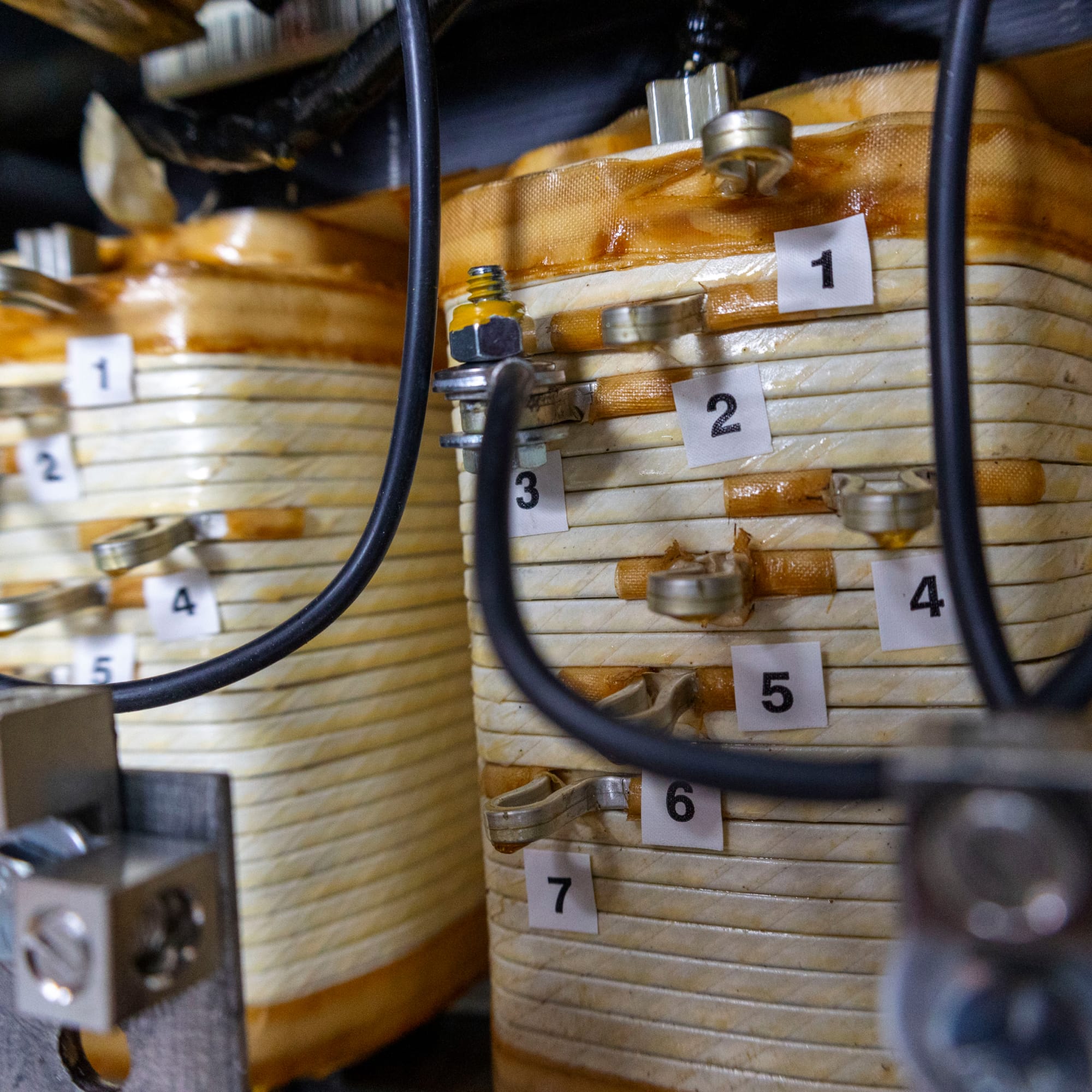

3-phase dry type transformer taps
3-phase dry type transformer connections

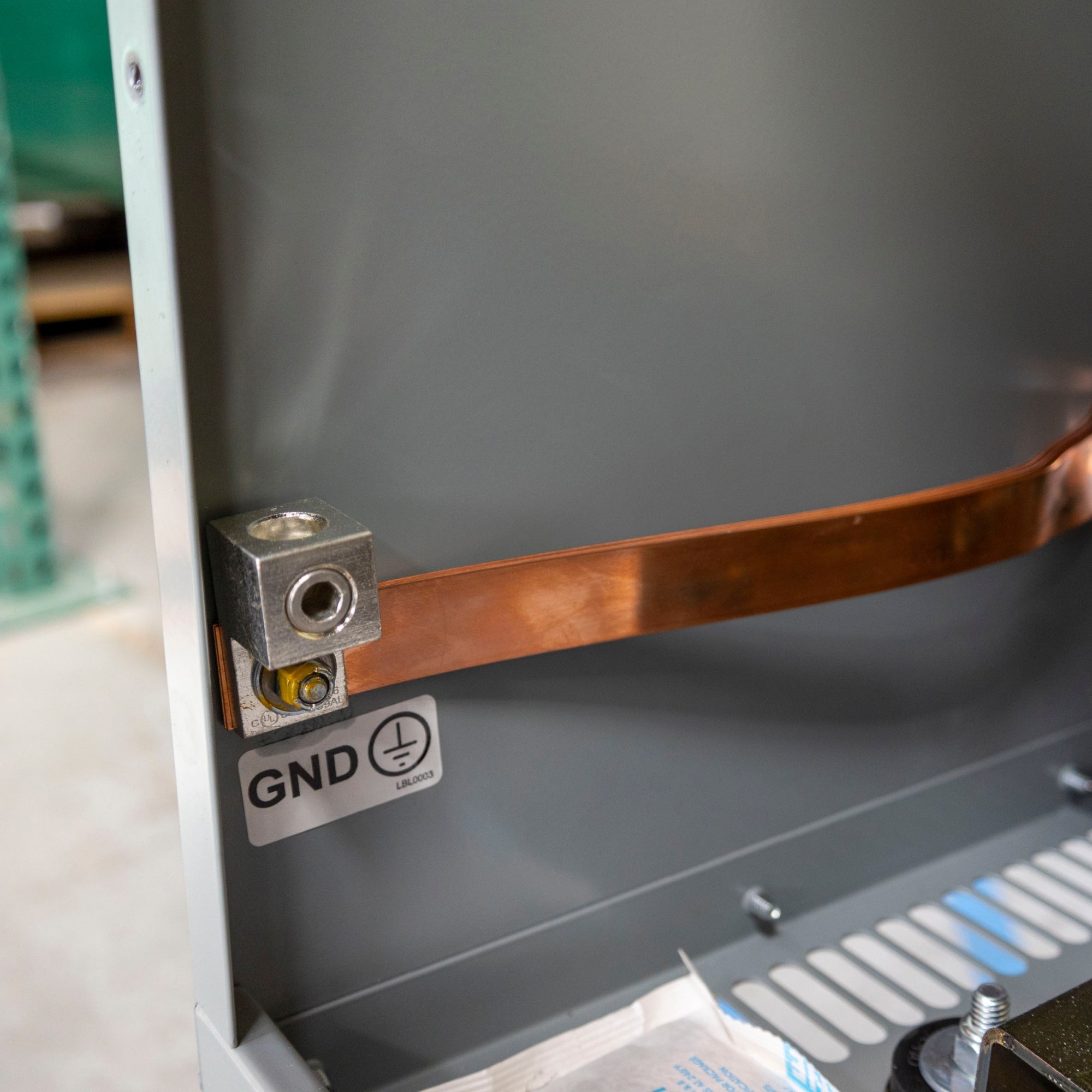

3-phase dry type transformer grounding strap

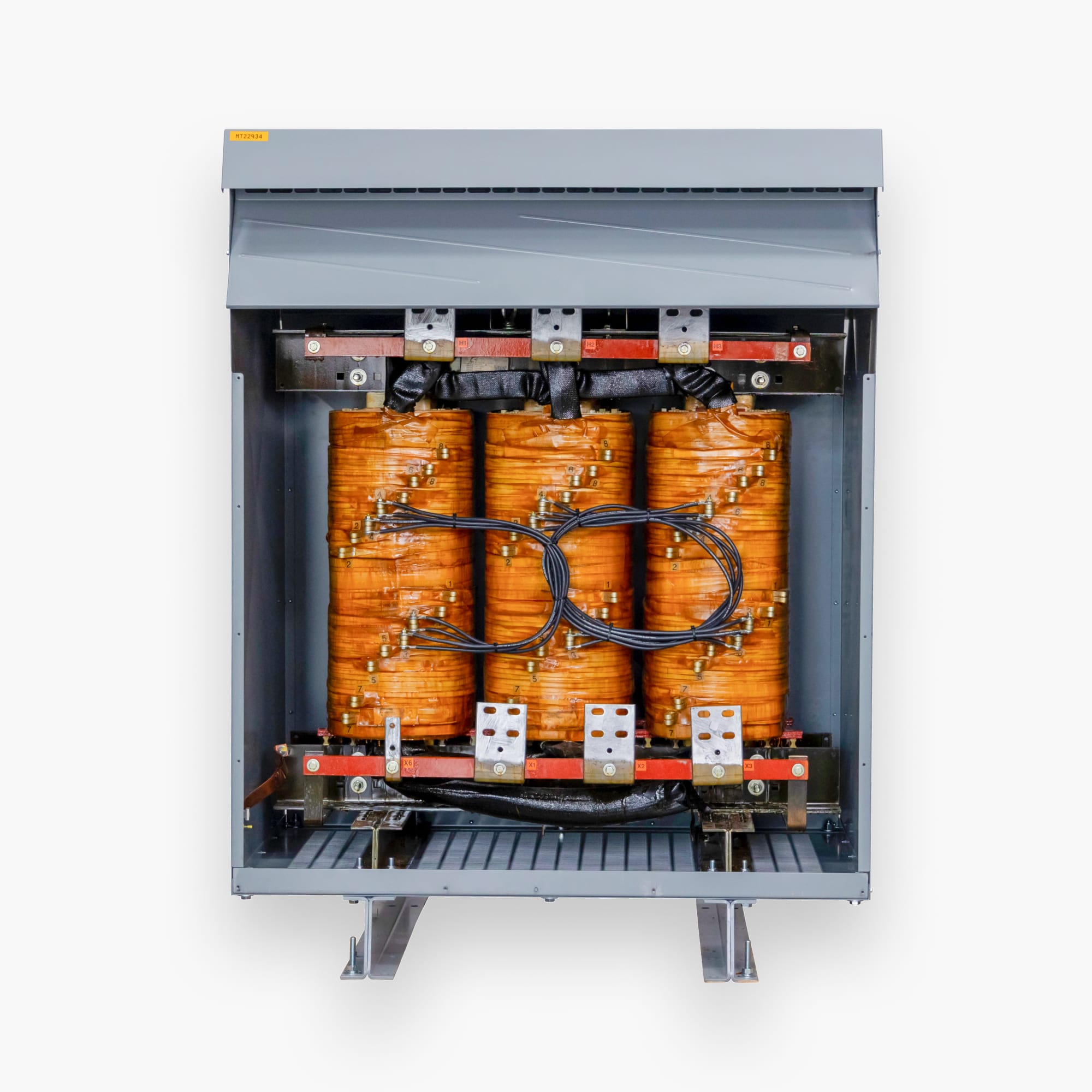

3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer taps
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer side view
3-phase dry type transformer
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a transformer video thumbnail
How to install a 3-phase transformer video thumbnail

3-Phase 240V Delta - 416 Y 240 (Step Up Transformer)

SKU: MIT-DRY-211-3
Size:

Size

New

$2,808

Used

$2,246
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days



Overview

This transformer is designed to convert 3-phase 240v to 3-phase 400 Y 231 to run equipment such as panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, datacenter equipment, cryptocurrency miners, and other business machines.

Not sure what to buy? Find out more about how to buy the right transformer.



Primary Voltage: 240 Delta

Secondary Voltage: 416 Y 240



Transformer Specifications:

  • 60 Hz Frequency
  • 150°C Temperature Rise

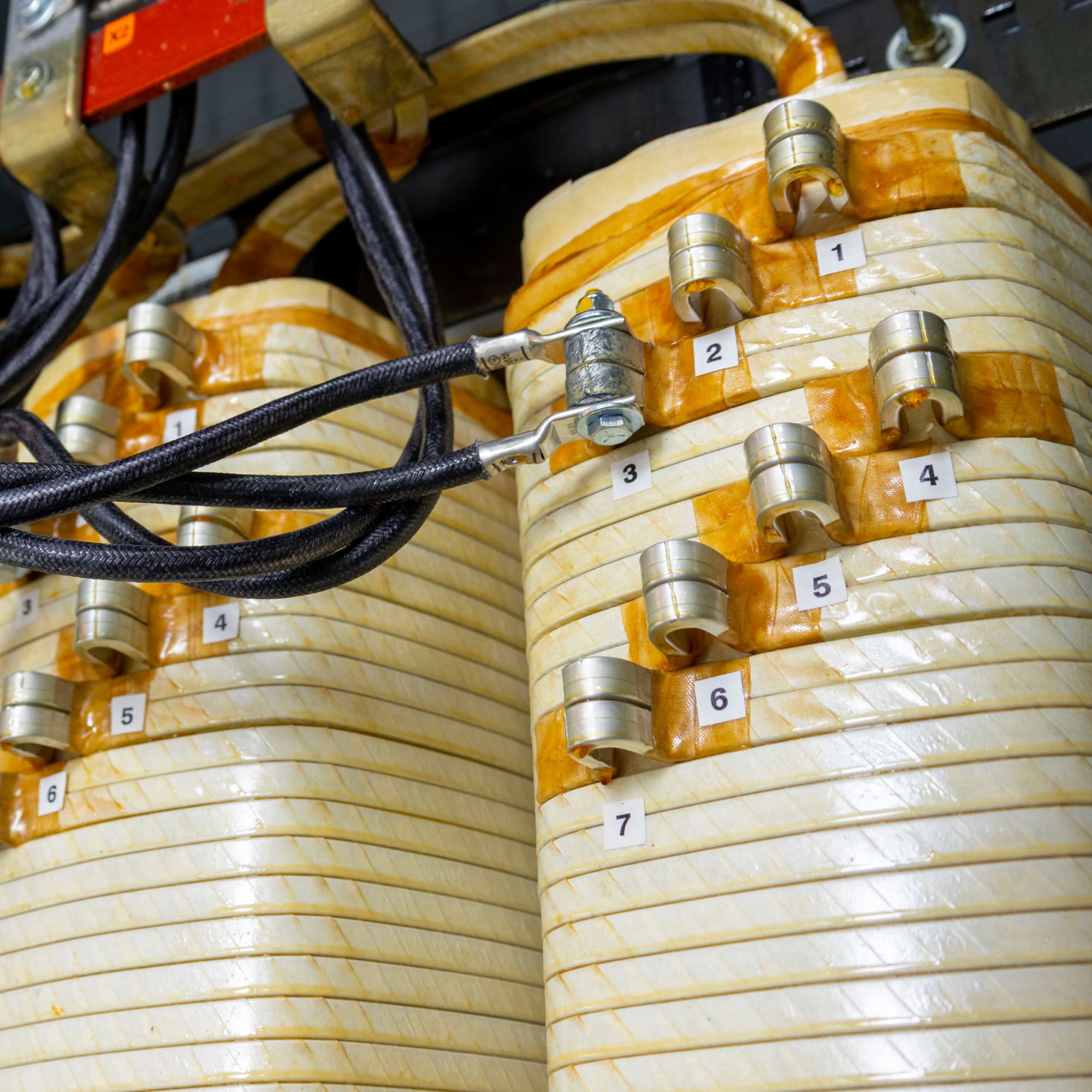

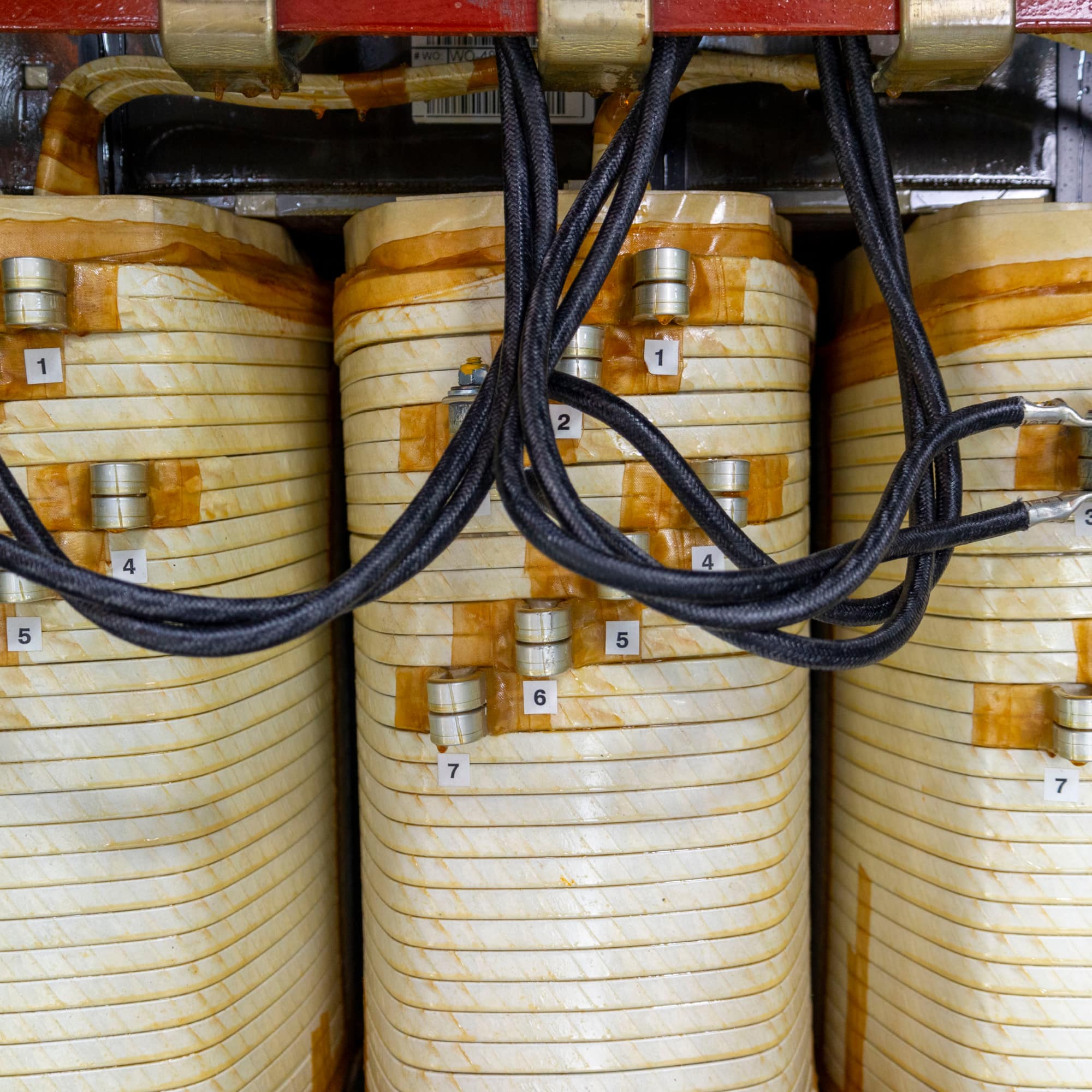

  • Primary Adjustment Taps 2 above, 4 below in 2.5% increments
  • High Efficiency Aluminum Windings
  • 220°C Insulation Class
  • Vacuum pressure Impregnated Windings
  • Silicon Steel Core
  • DOE 2016 Energy Efficient

Transformer may appear different than pictured.



Size Guide

KVA  Amps at 240v Amps at 416 Y 240
15 36 21
30 72 42
45 108 62
75 180 104
112.5 271 156
150 361 208
225 541 312
300 722 416
500 1203 694



Dimensions & Weights

KVA Dims (HxWxD)
Weight (Lbs)
15 28" x 21" x 14"
220
30 32" x 27" x 17"
320
45 32" x 27" x 17"
385
75 39" x 29" x 20"
565
112.5 41" x 32" x 22"
725
150 41" x 32" x 22" 860
225 52" x 41" x 36" 1450
300 52" x 41" x 36" 1650
500 66" x 51" x 41" 2750



Approximate Enclosure Dimensions & Weights

Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
