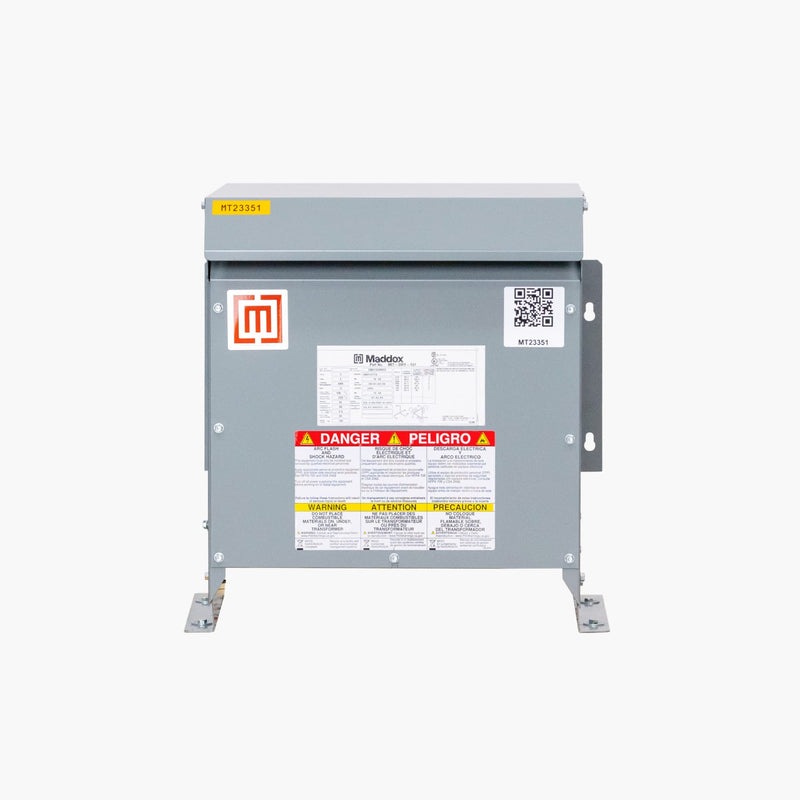

3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer back view
3-phase dry type transformer ready to ship
3-phase dry type transformer connections
3-phase dry type transformer taps
3-phase dry type transformer connections
3-phase dry type transformer grounding strap
3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer taps
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail

3-Phase 460 D - 230 Y 133 (Drive Isolation Transformer)

SKU: MIT-DIT-159
Size:

Size

New

$1,401

Used

$1,121
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days

Overview

Maddox Drive-Isolation Transformers are designed to meet the rugged demands of both AC and DC variable speed drives and provide the required voltage change.

The separate windings provide electrical isolation between the incoming power and the SCR or VFD load. The windings are designed to withstand overcurrent at 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds, as well as minor harmonic noise at or below K-Factor 4. Standard duty cycle is one start every two hours.

Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings.

Standard sizes range from 5 to 600 HP in six standard voltages.

Not sure what to buy? Find out more about how to buy the right transformer.



Primary Voltage: 460 D

Secondary Voltage: 230 Y 133

Transformer Specifications:

  • 60 Hz Frequency
  • 150°C Temperature Rise
  • 220°C Insulation Class
  • Primary Adjustment Taps 1 above, 1 below in 5% increments
  • Electrostatic Shield Between HV & LV Windings
    High Efficiency Aluminum Windings

  • Vacuum pressure Impregnated Windings
  • K4 Rated
  • 200% Rated Neutral
  • DOE Exempt
  • Lugs included up to 75 kVA
  • High Efficiency Design
  • Silicon Steel Core

Transformer may appear different than pictured.




Size Guide

kVA Amps at 460 Amps at 230 Startup Amps (low) Startup Amps (high)
7.5 9 19 75 113
11 14 28 110 166
14 18 35 141 211
20 25 50 201 301
27 34 68 271 407
34 43 85 341 512
40 50 100 402 602
51 64 128 512 768
63 79 158 633 949
75 94 188 753 1130
93 117 233 934 1401
118 148 296 1185 1777



kVA Sizing Recommendation: At least 20% above the rated horsepower on the motor.

Dimensions & Weights



kVA Dimensions (HxWxD) Weight (lbs)
11 21.5" x 19.38" x 20.2" 150
14 21.5" x 19.38" x 20.2" 180
20 28.75" x 23.9" x 25" 225
27 28.75" x 23.9" x 25" 280
34 28.75" x 23.9" x 25" 305
40 28.75" x 23.9" x 25" 315
51 28.75" x 23.9" x 25" 370
63 38" x 26" x 21" 510
75 38" x 26" x 21" 570
93 52" x 38" x 34" 1950
118 64" x 49" x 39" 2800



Approximate Enclosure Dimensions & Weights

Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
