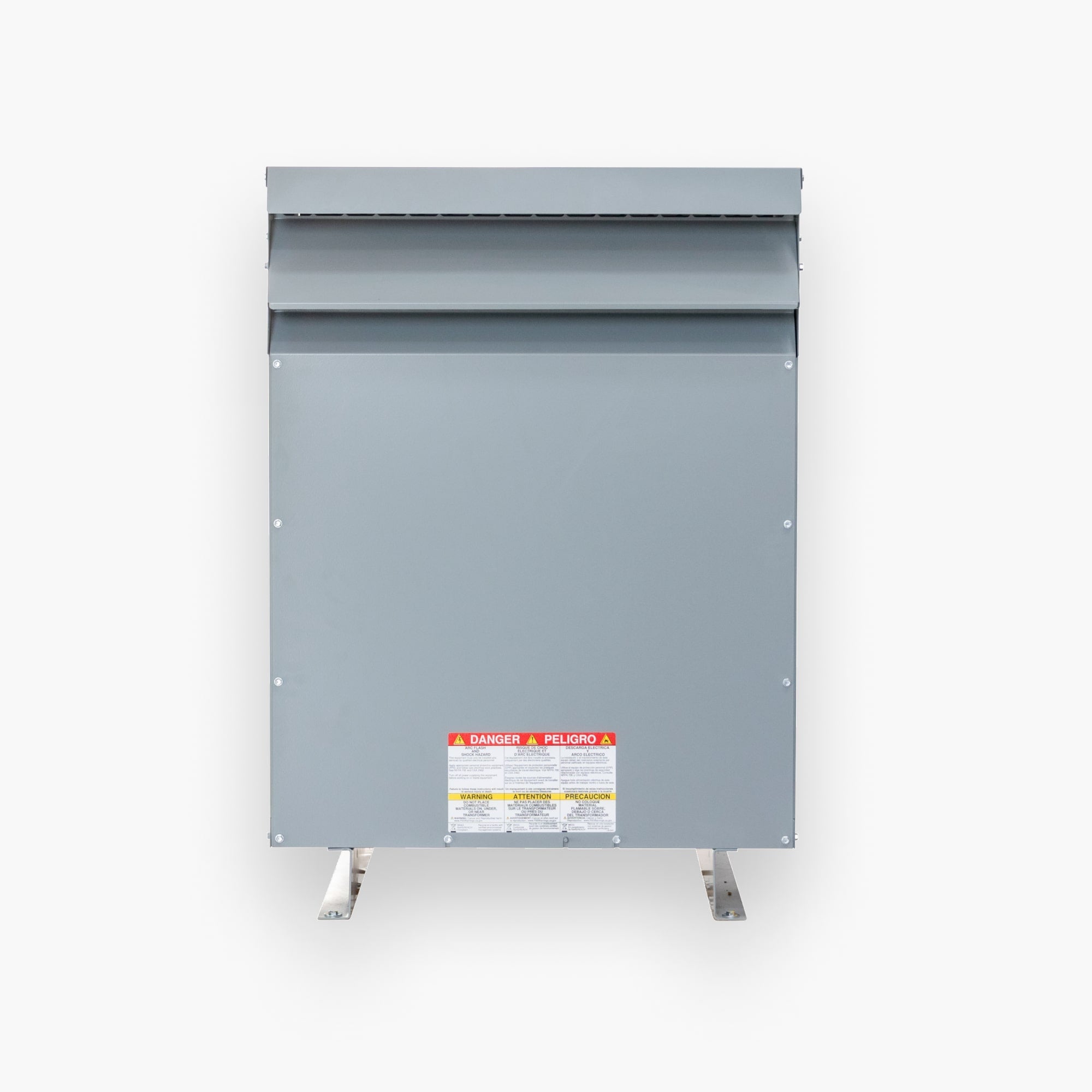

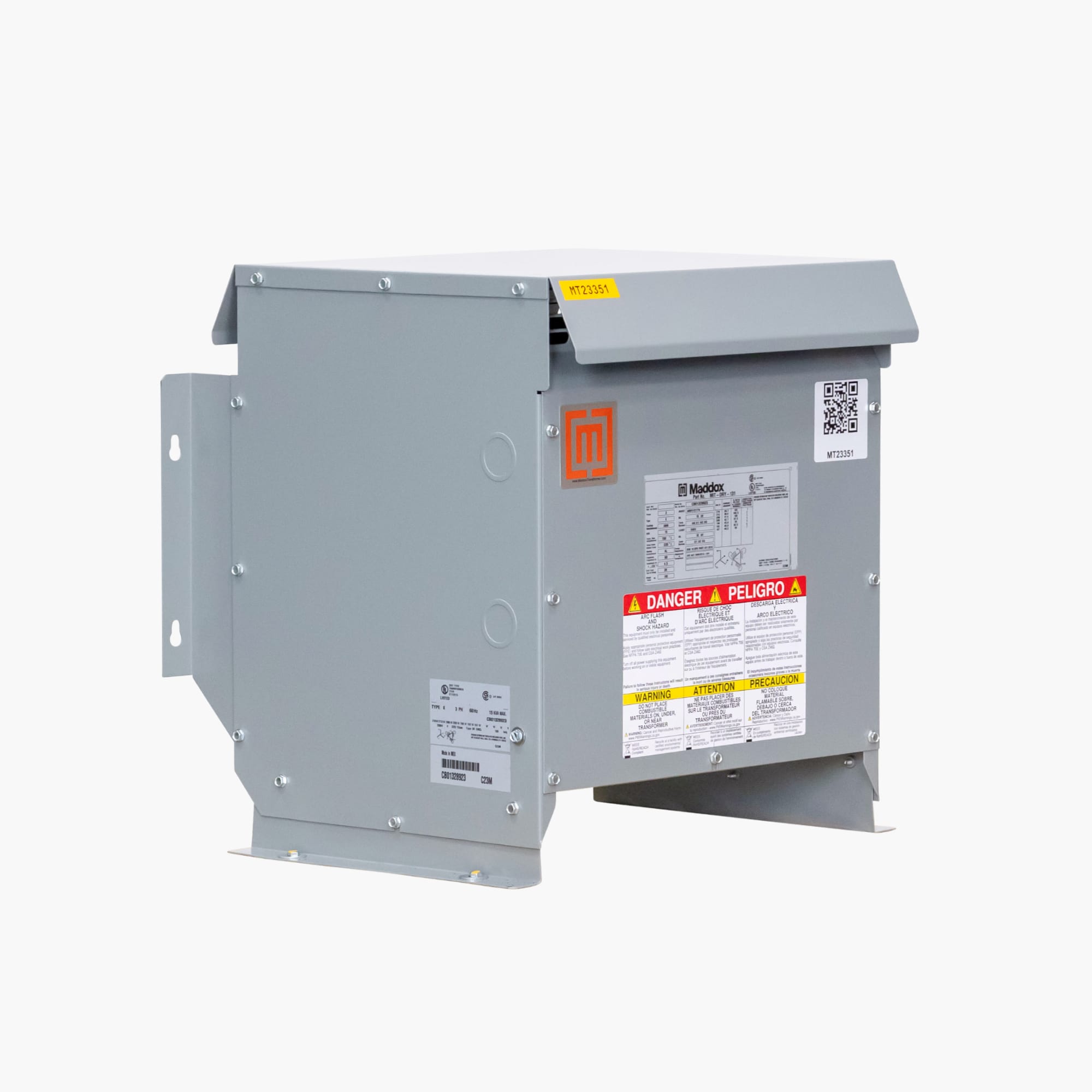

3-phase dry type transformer

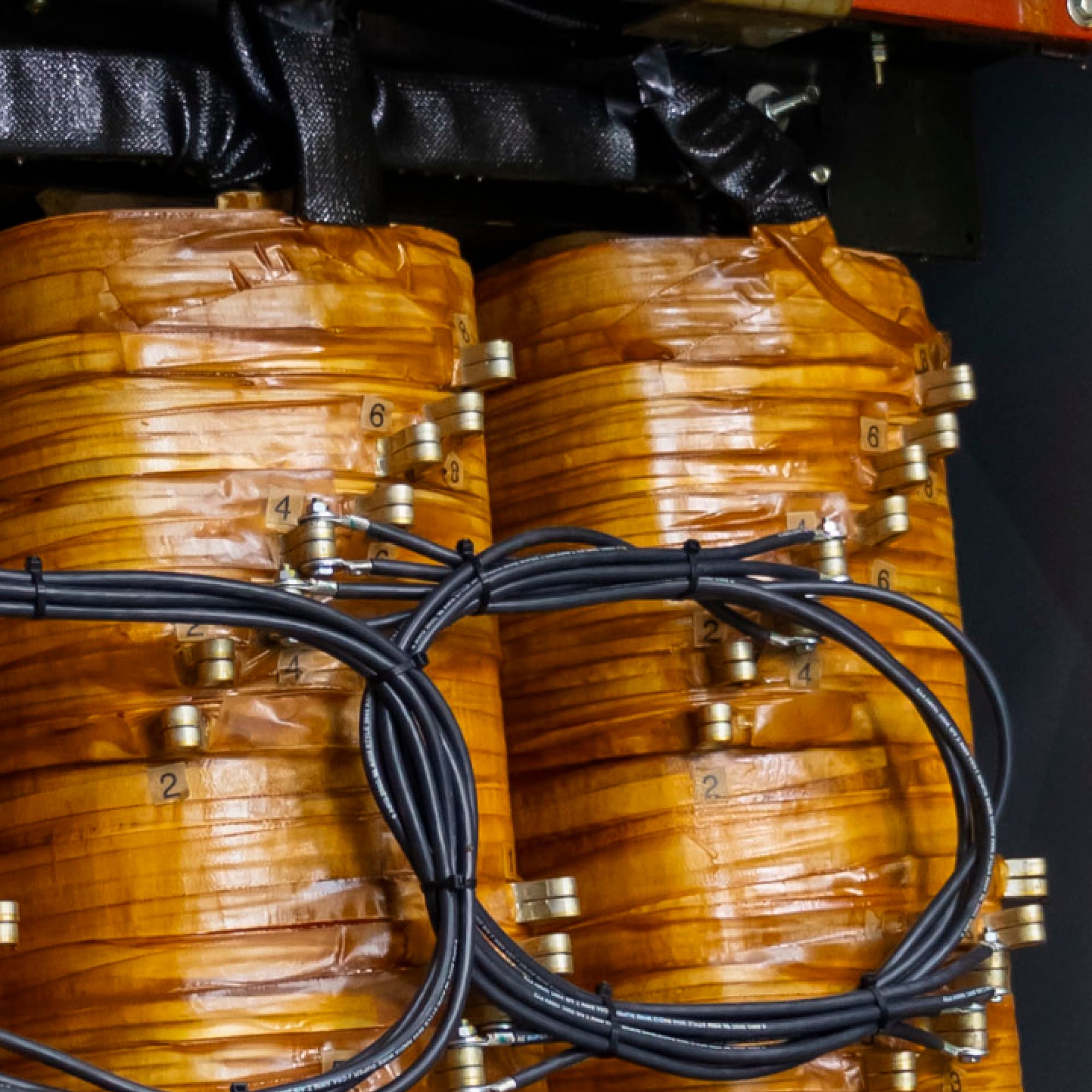

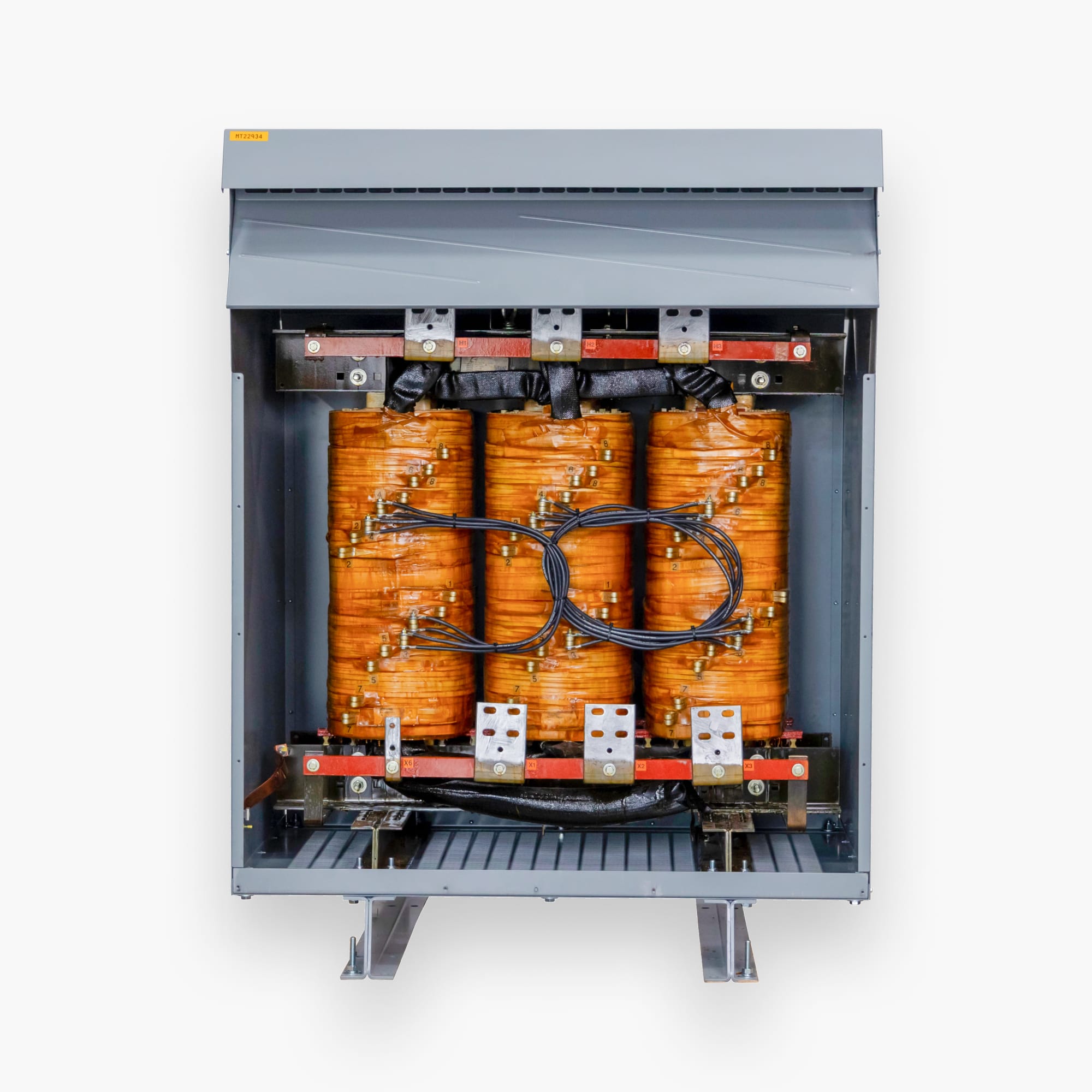

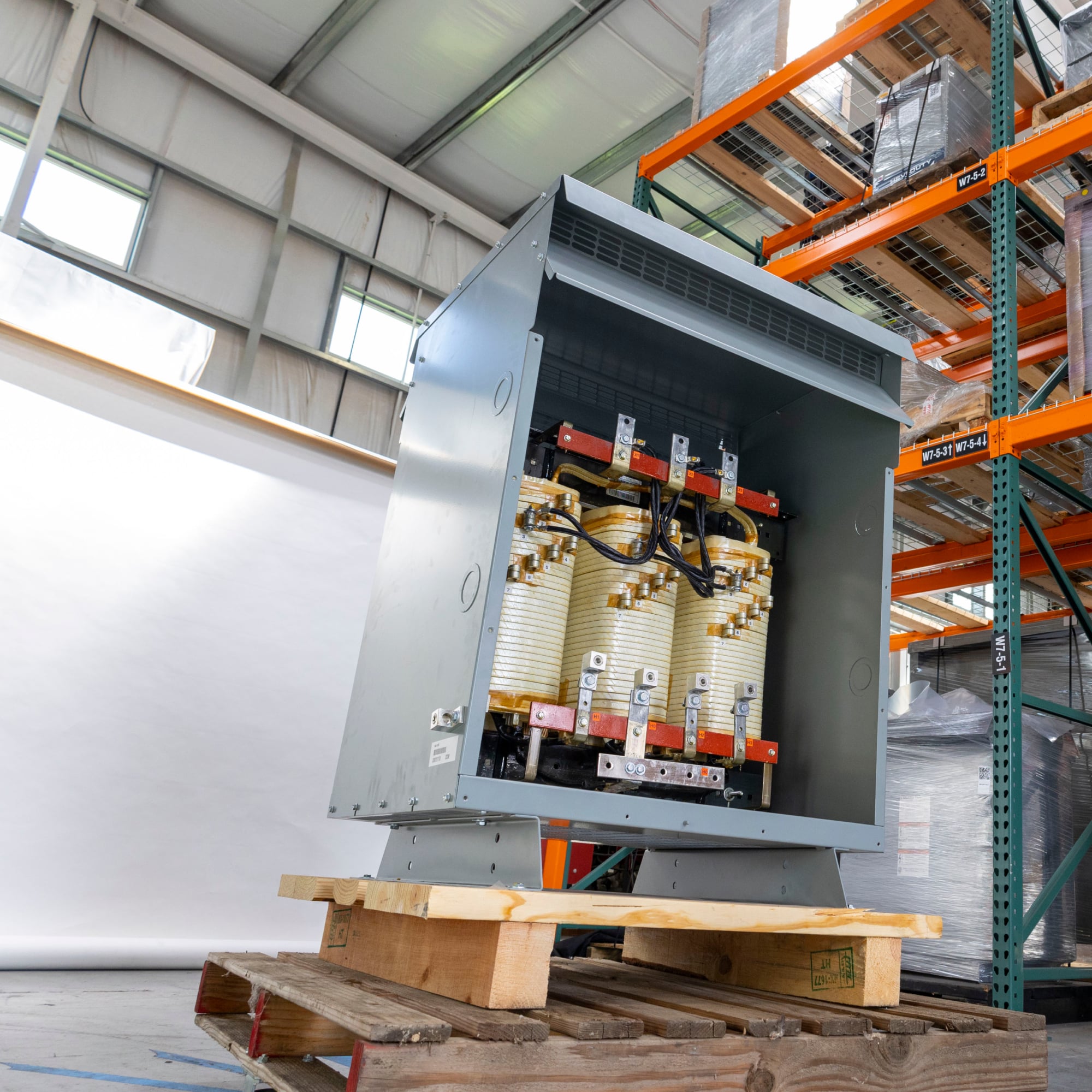

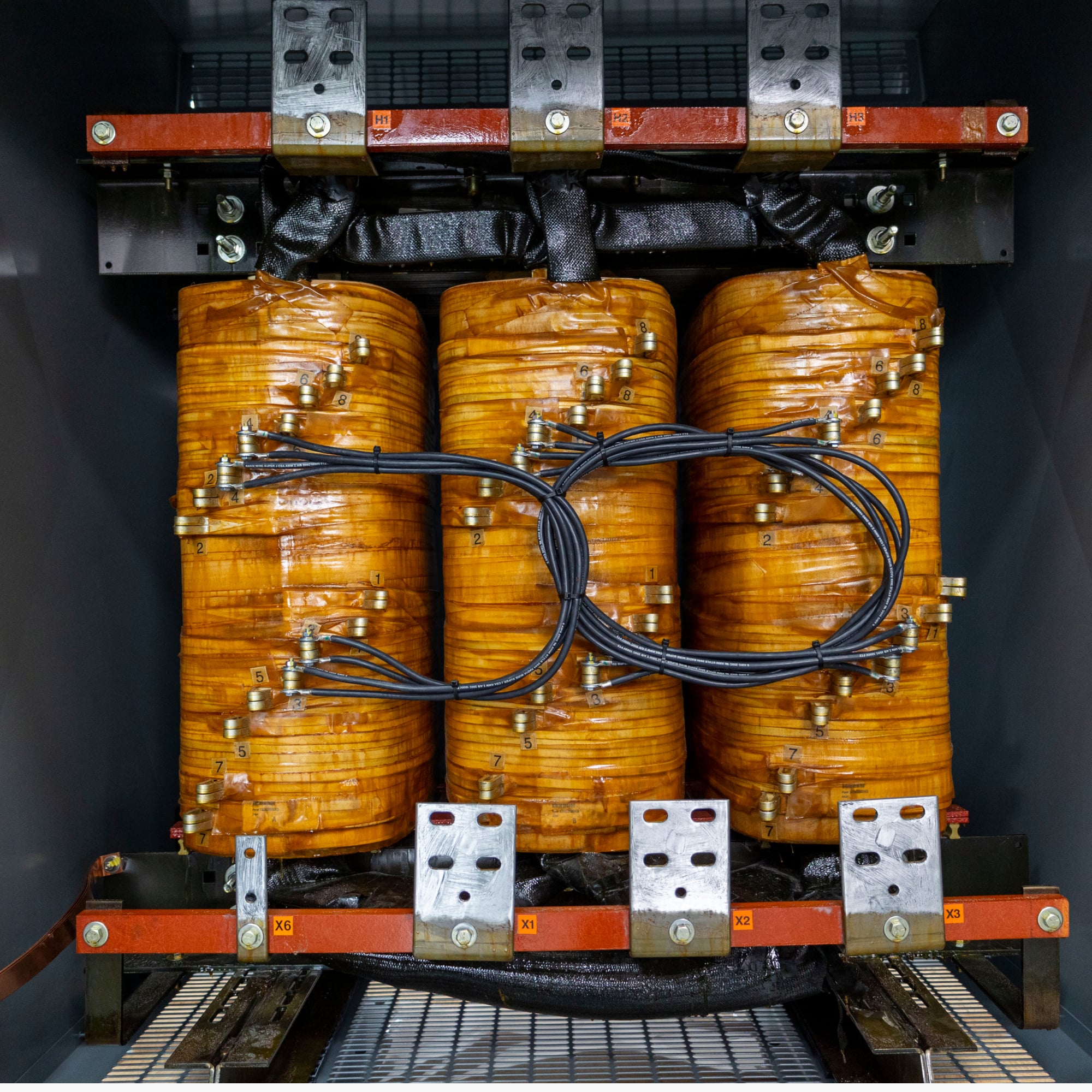

3-phase dry type transformer core

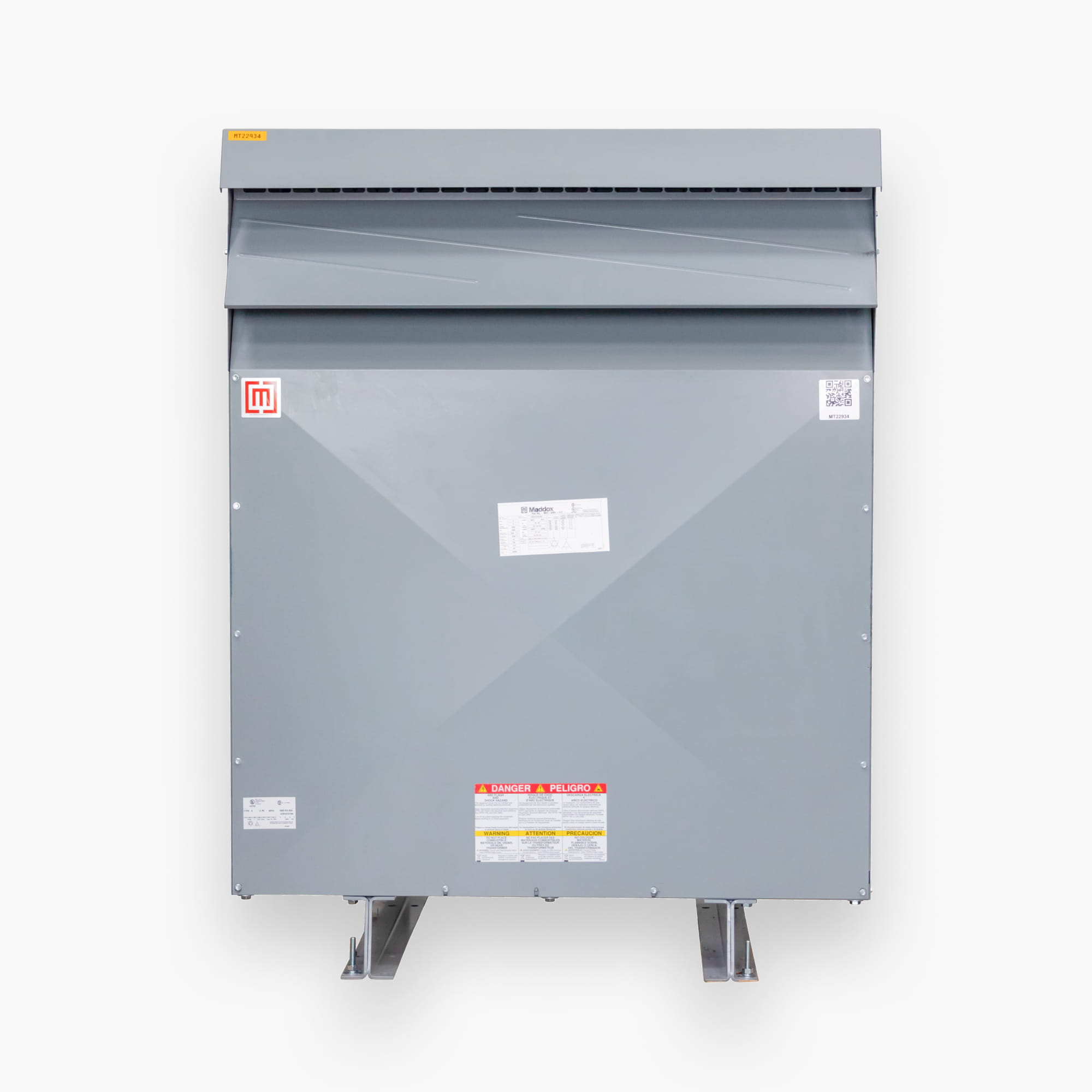

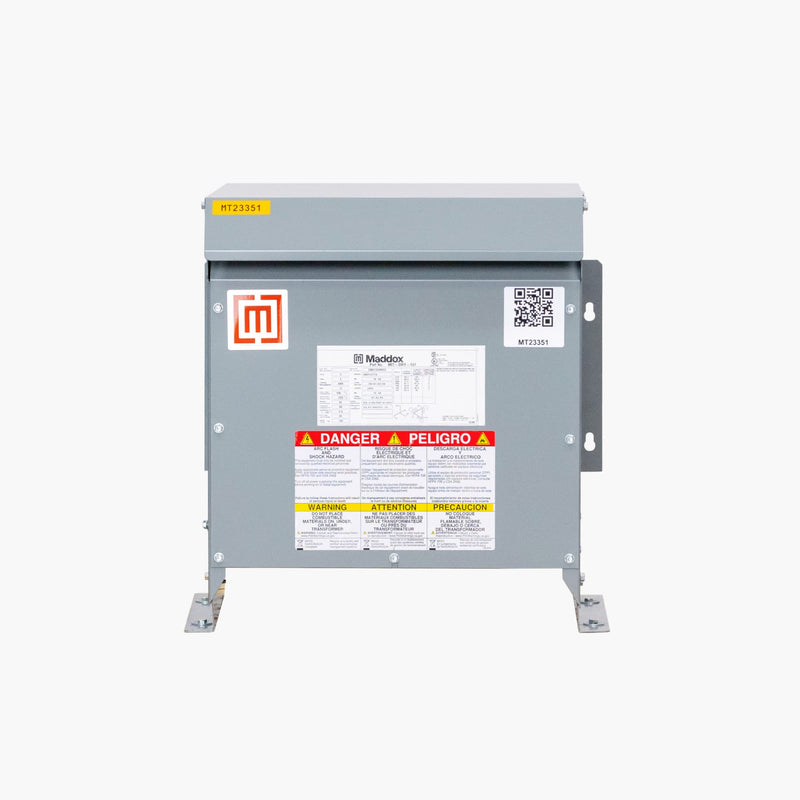

3-phase dry type transformer

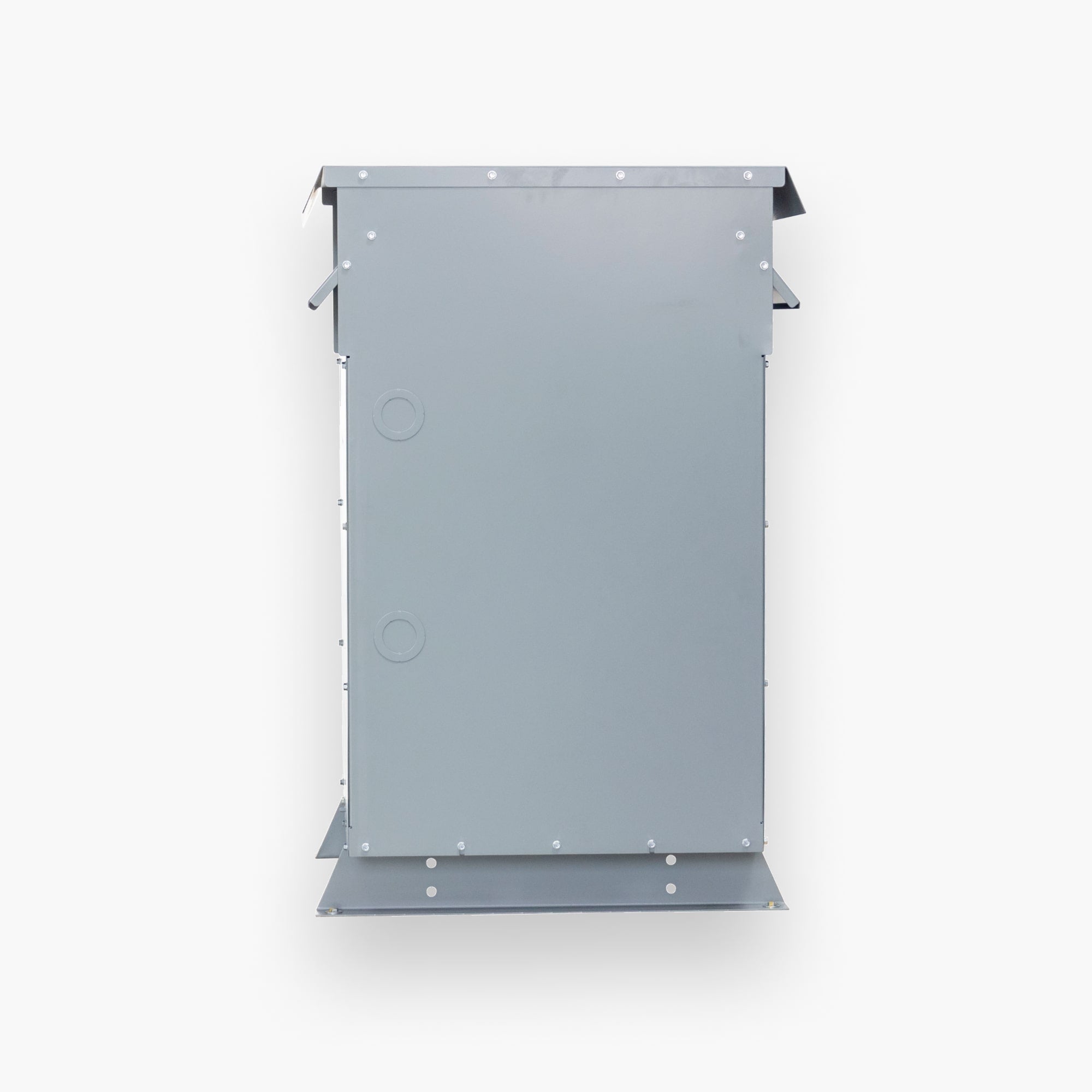

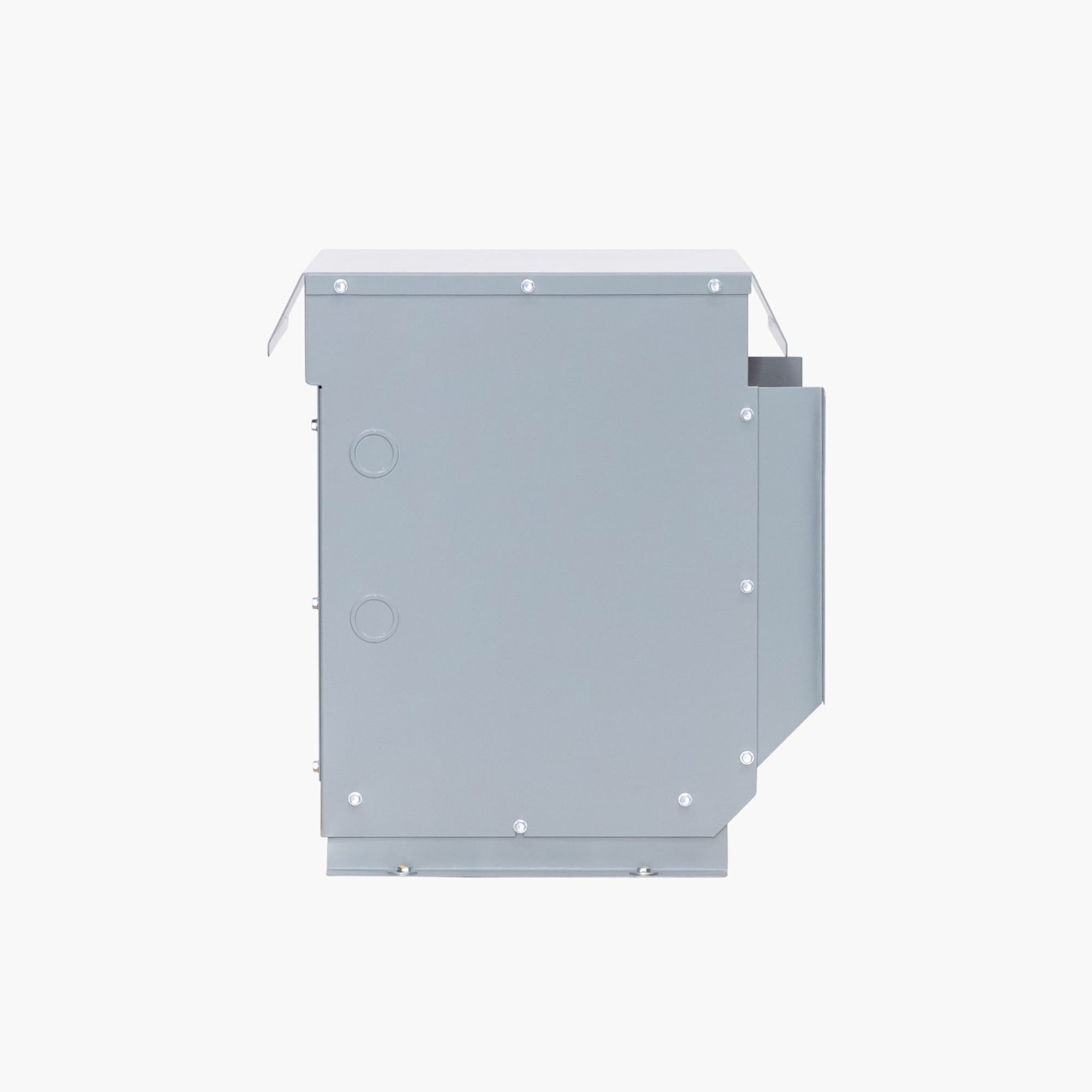

3-phase dry type transformer side view

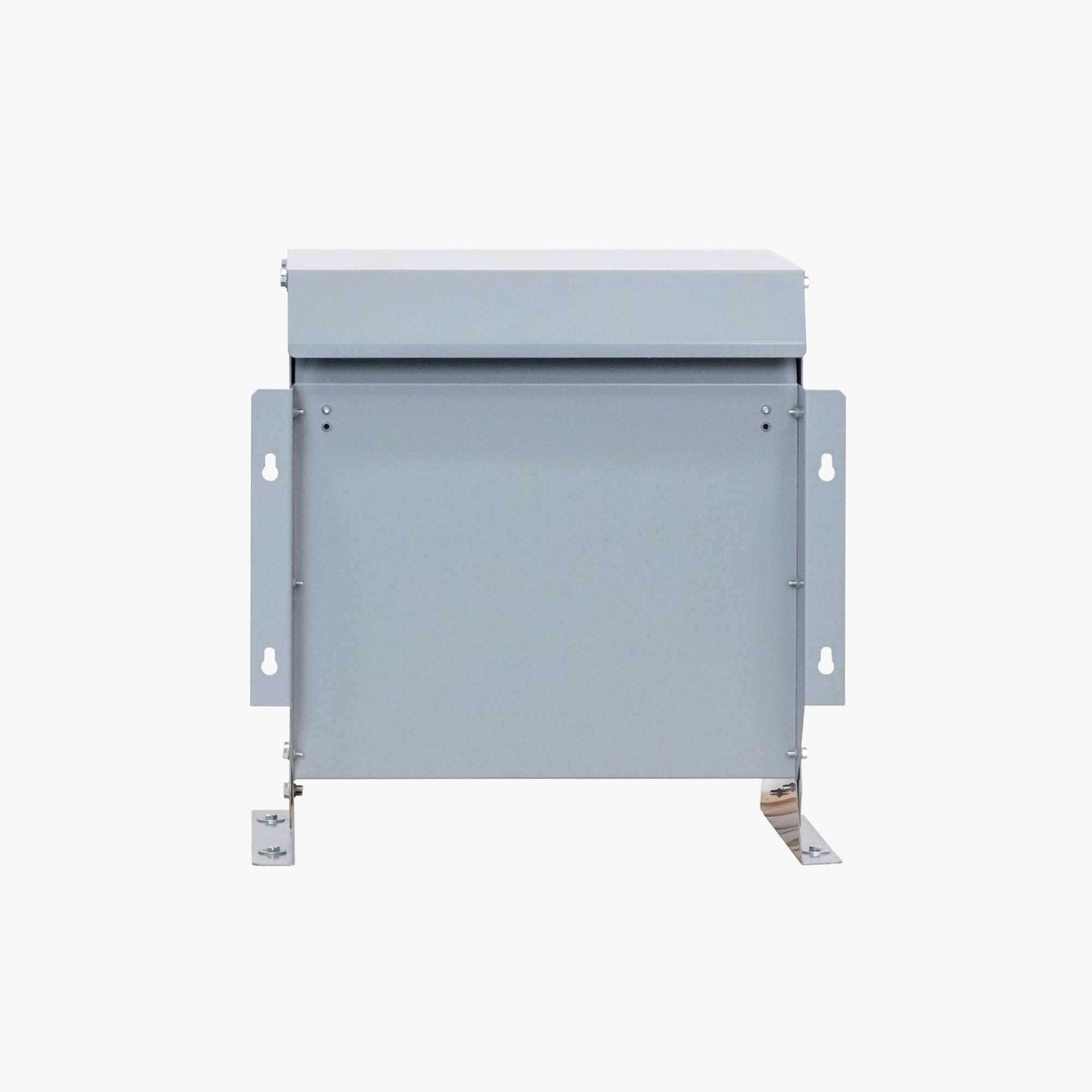

3-phase dry type transformer back view

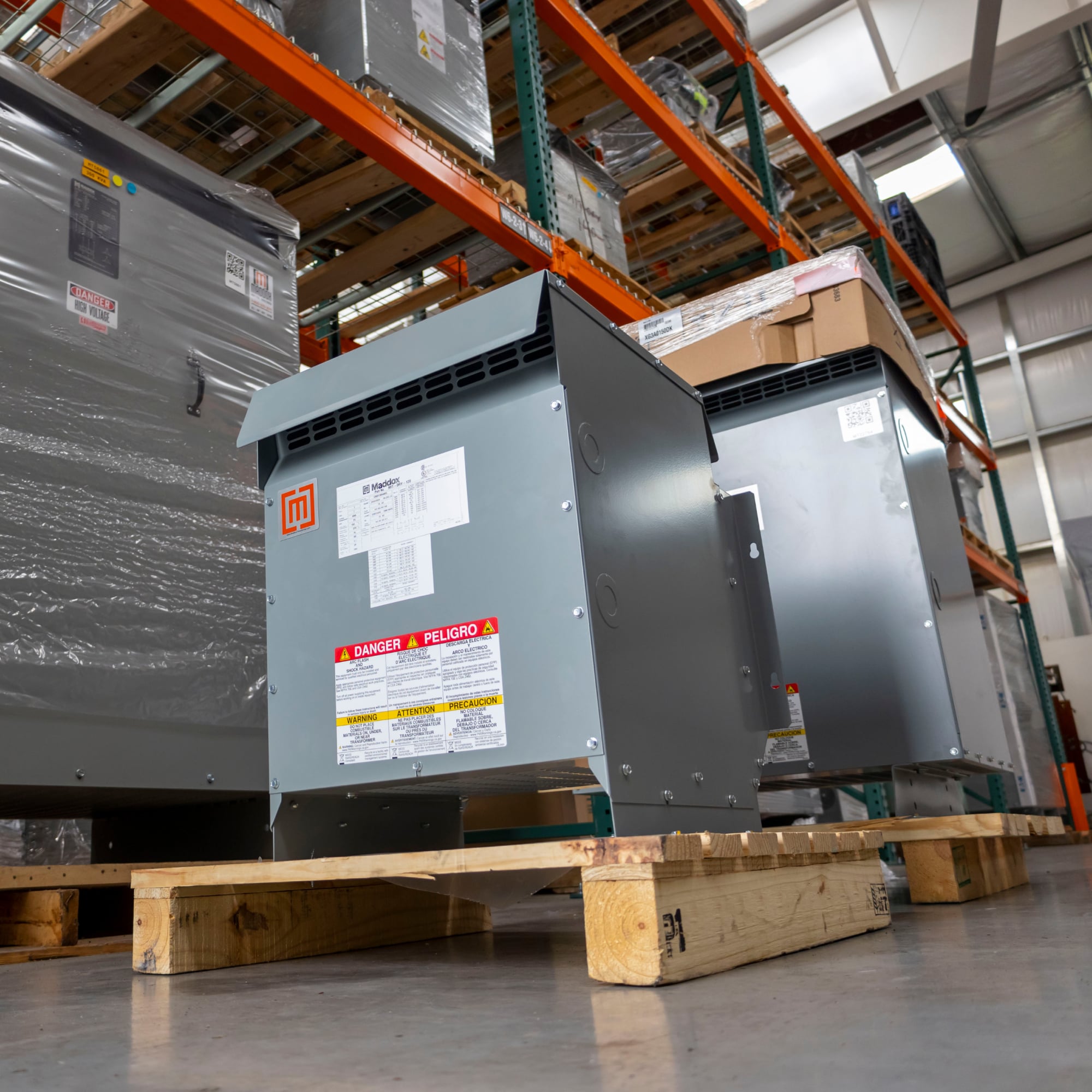

3-phase dry type transformer ready to ship

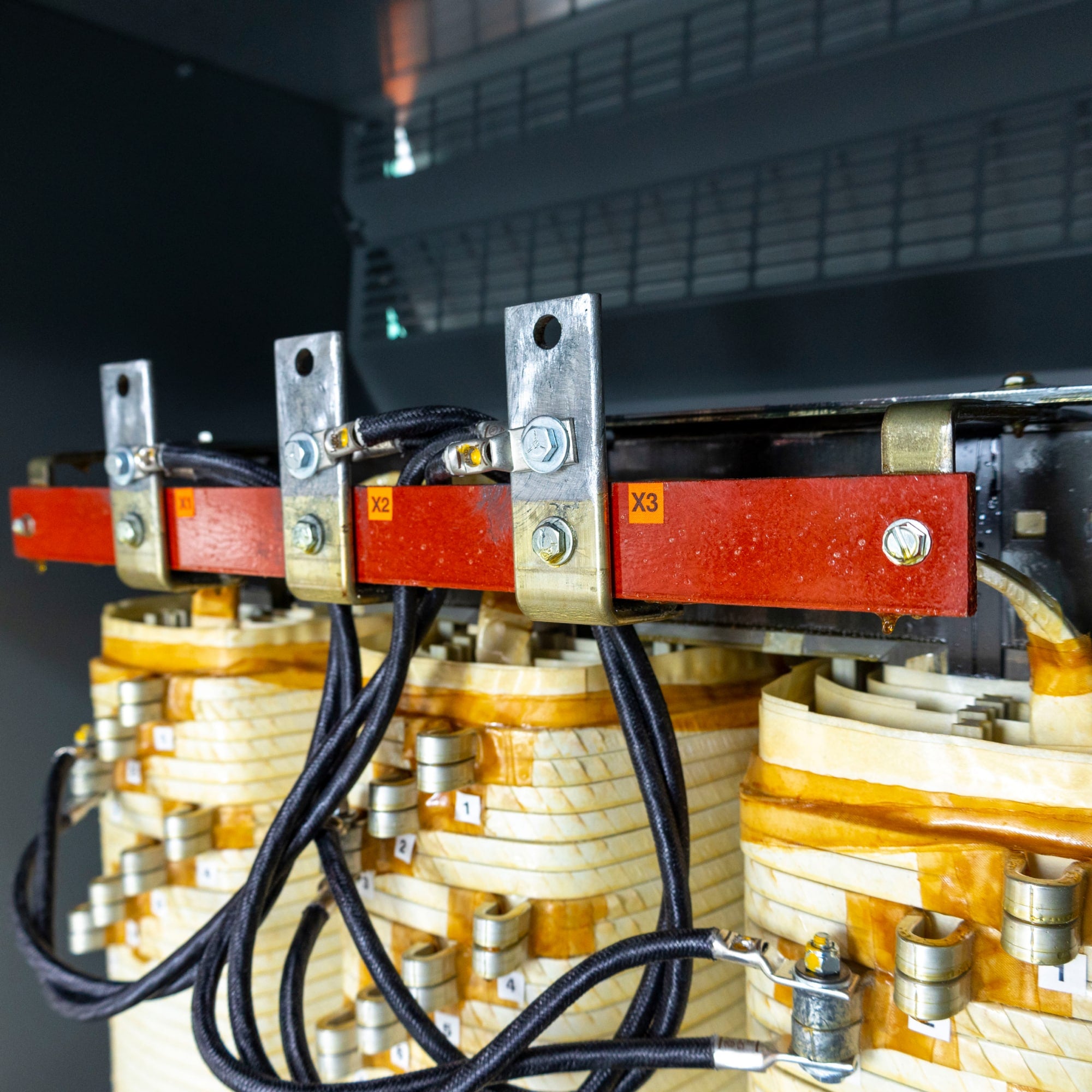

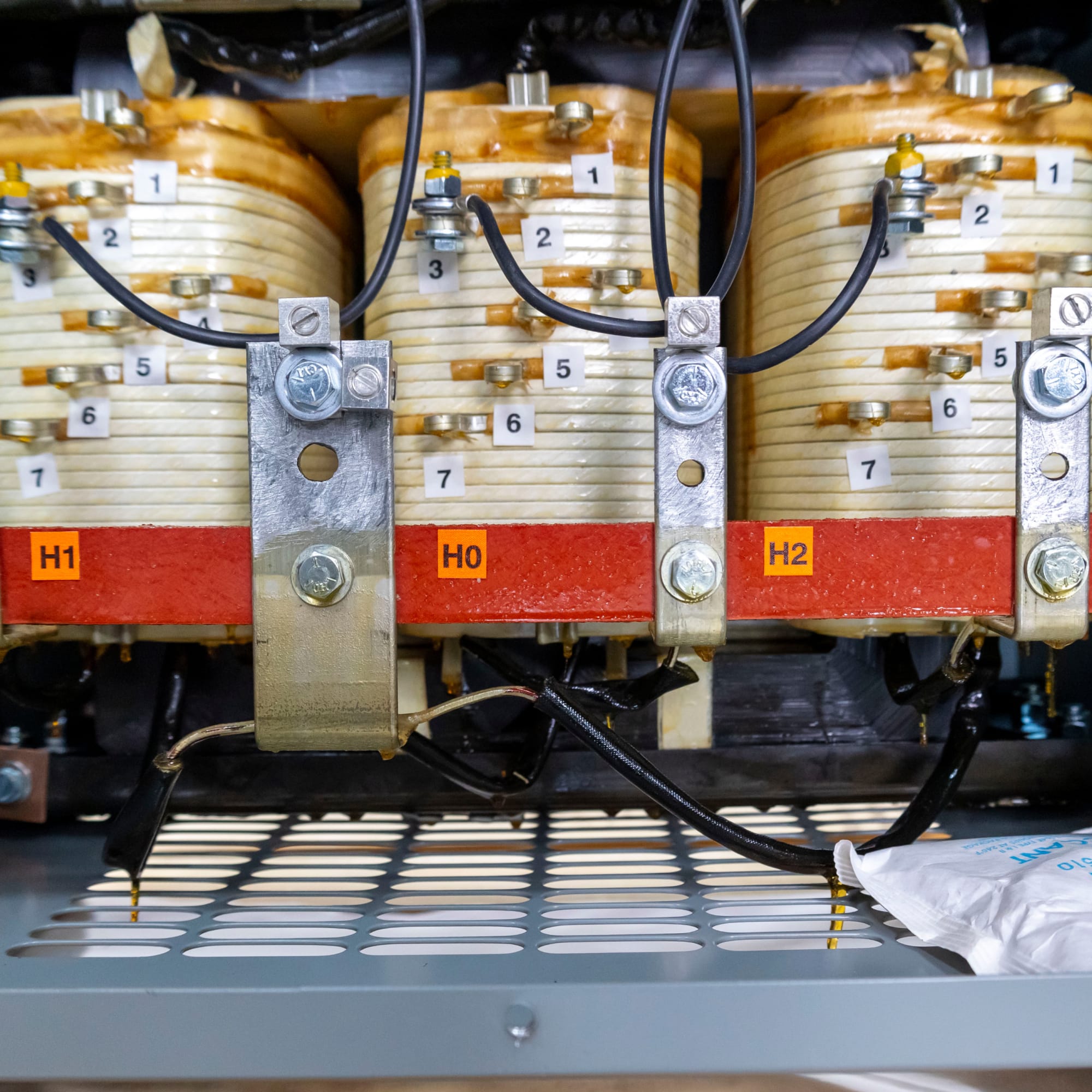

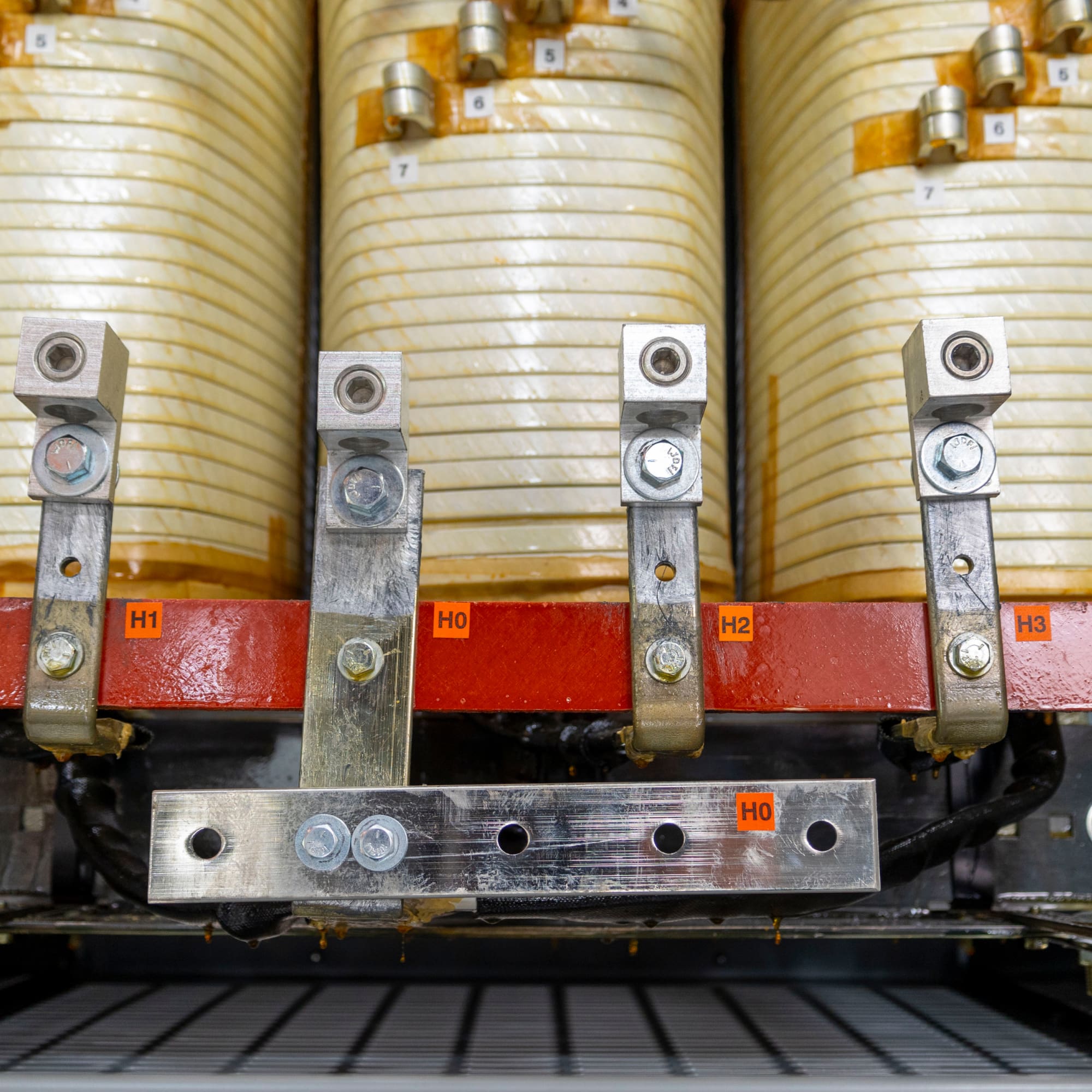

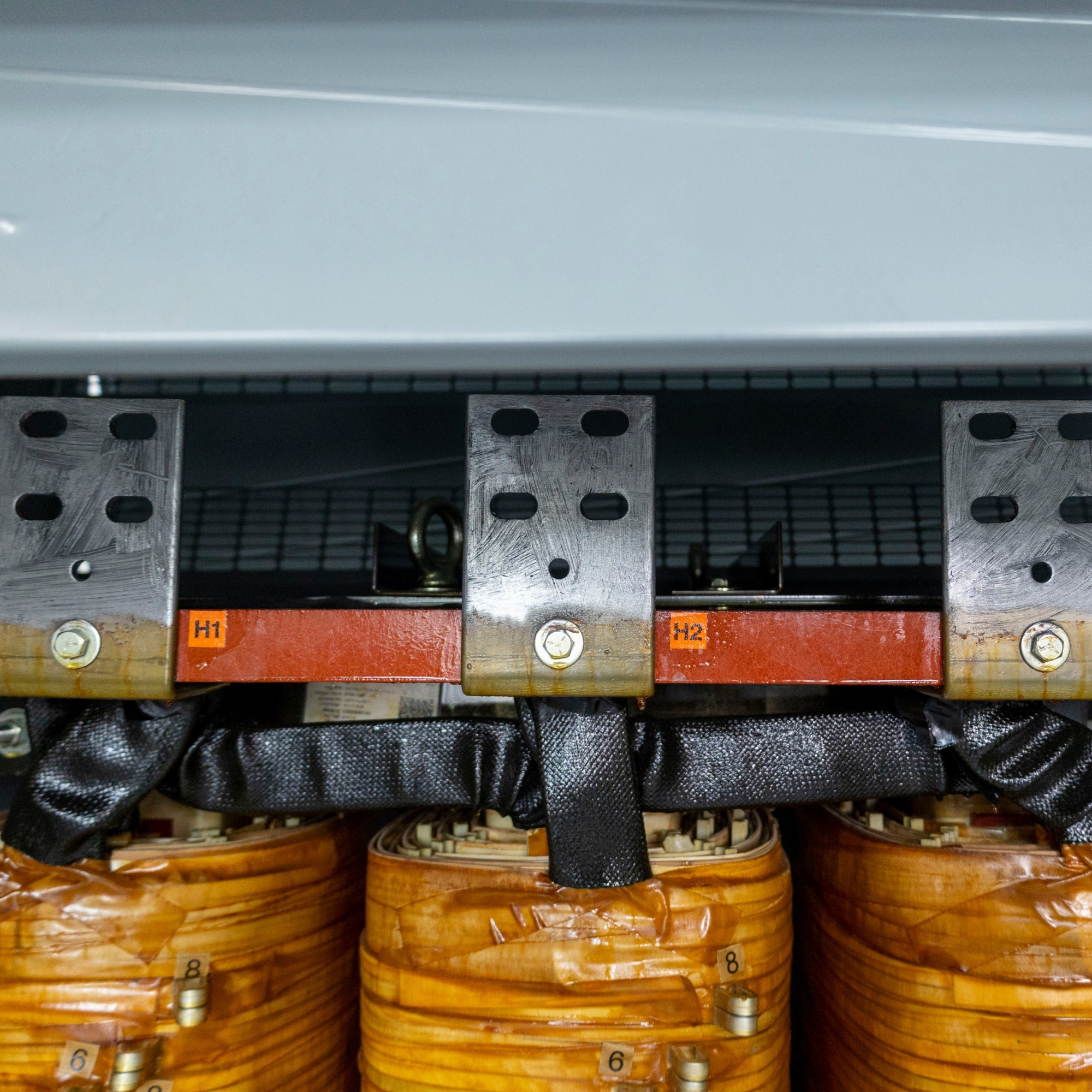

3-phase dry type transformer connections
3-phase dry type transformer taps

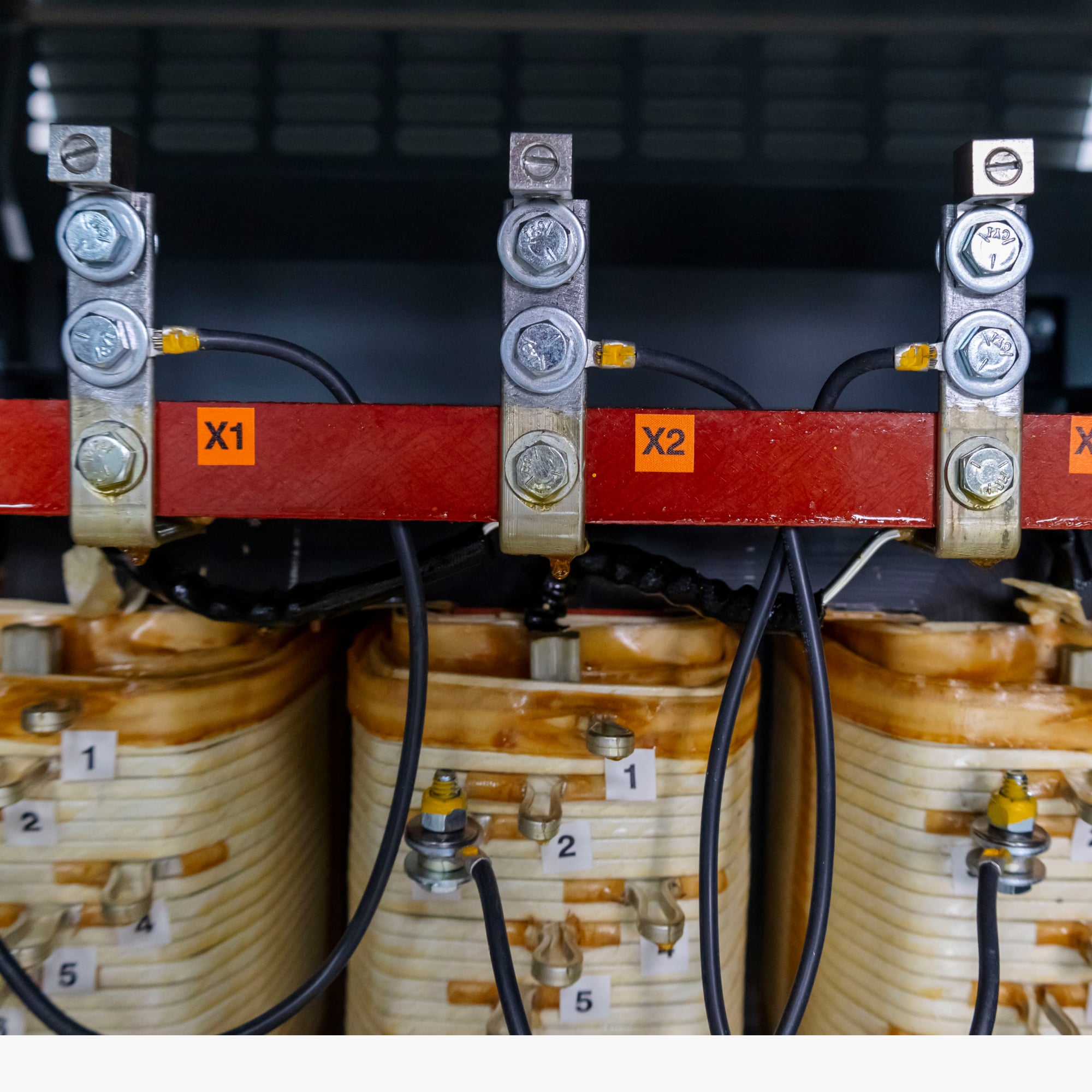

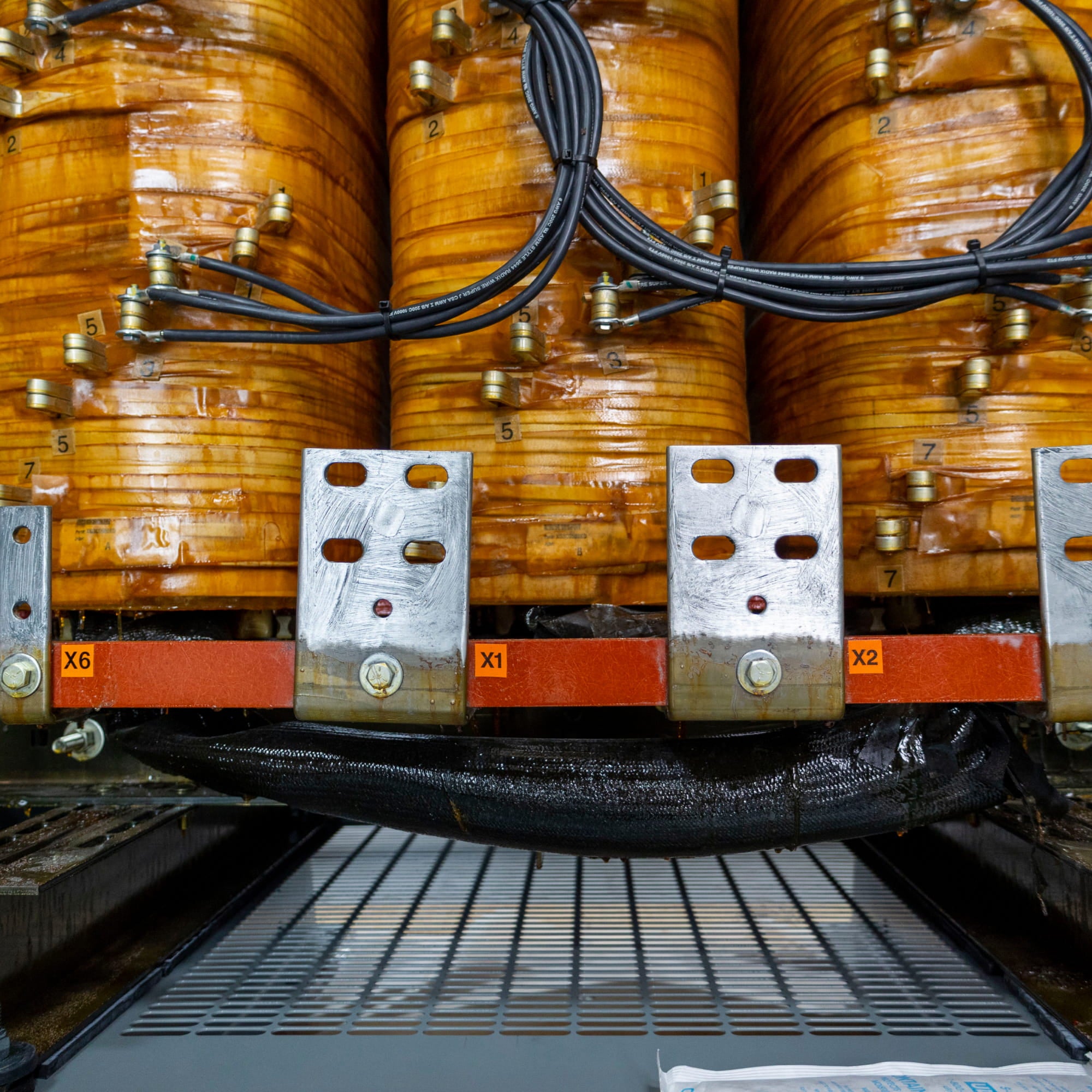

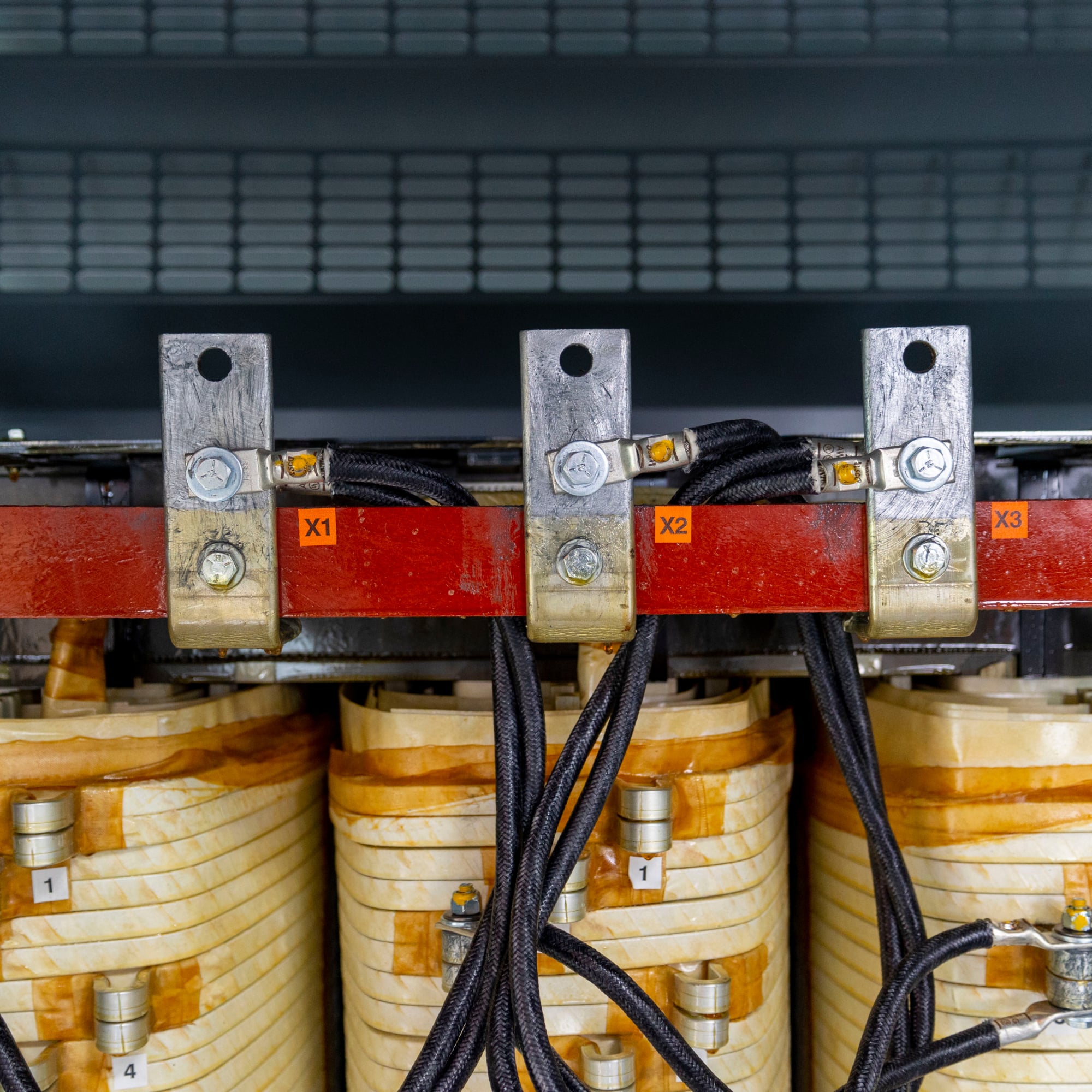

3-phase dry type transformer connections

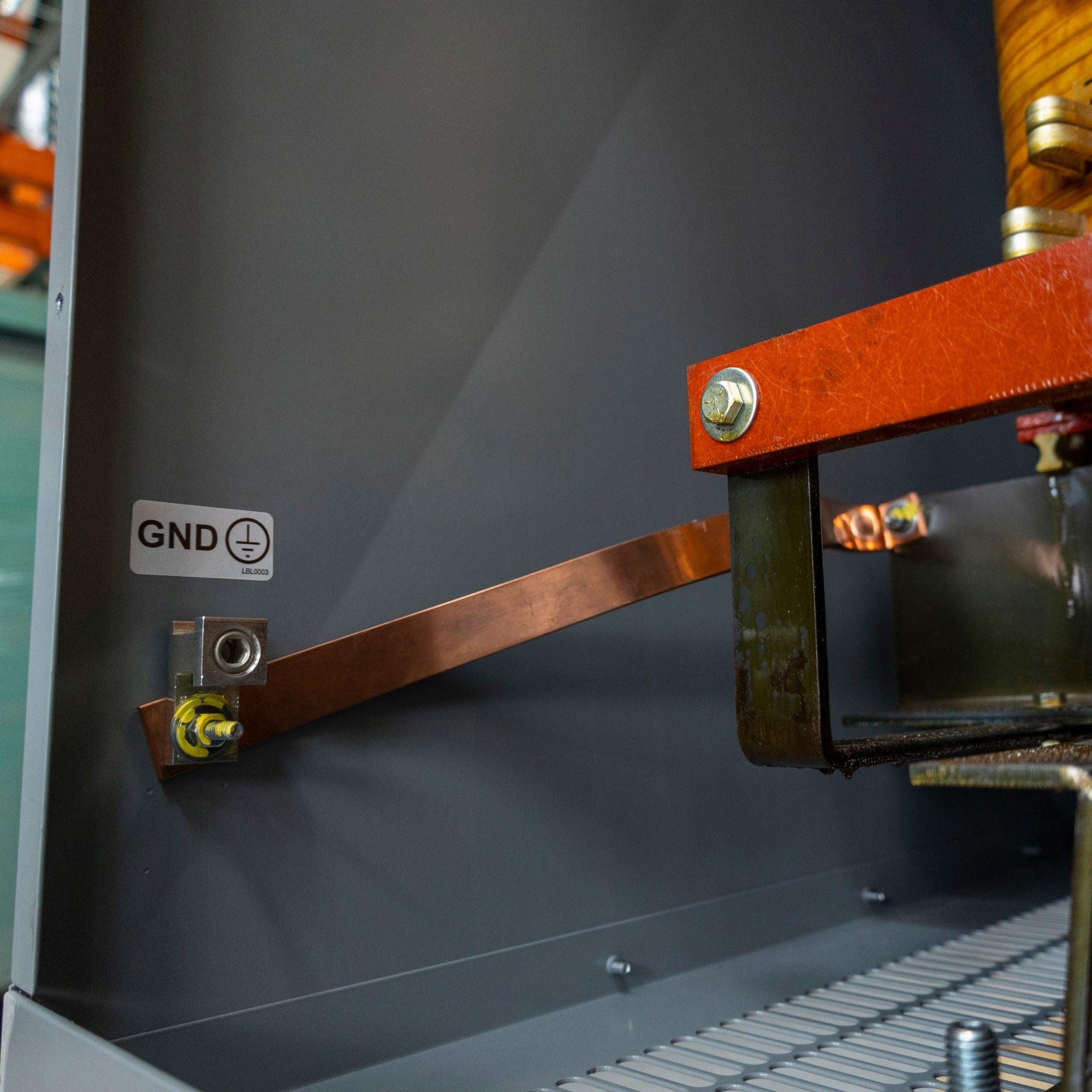

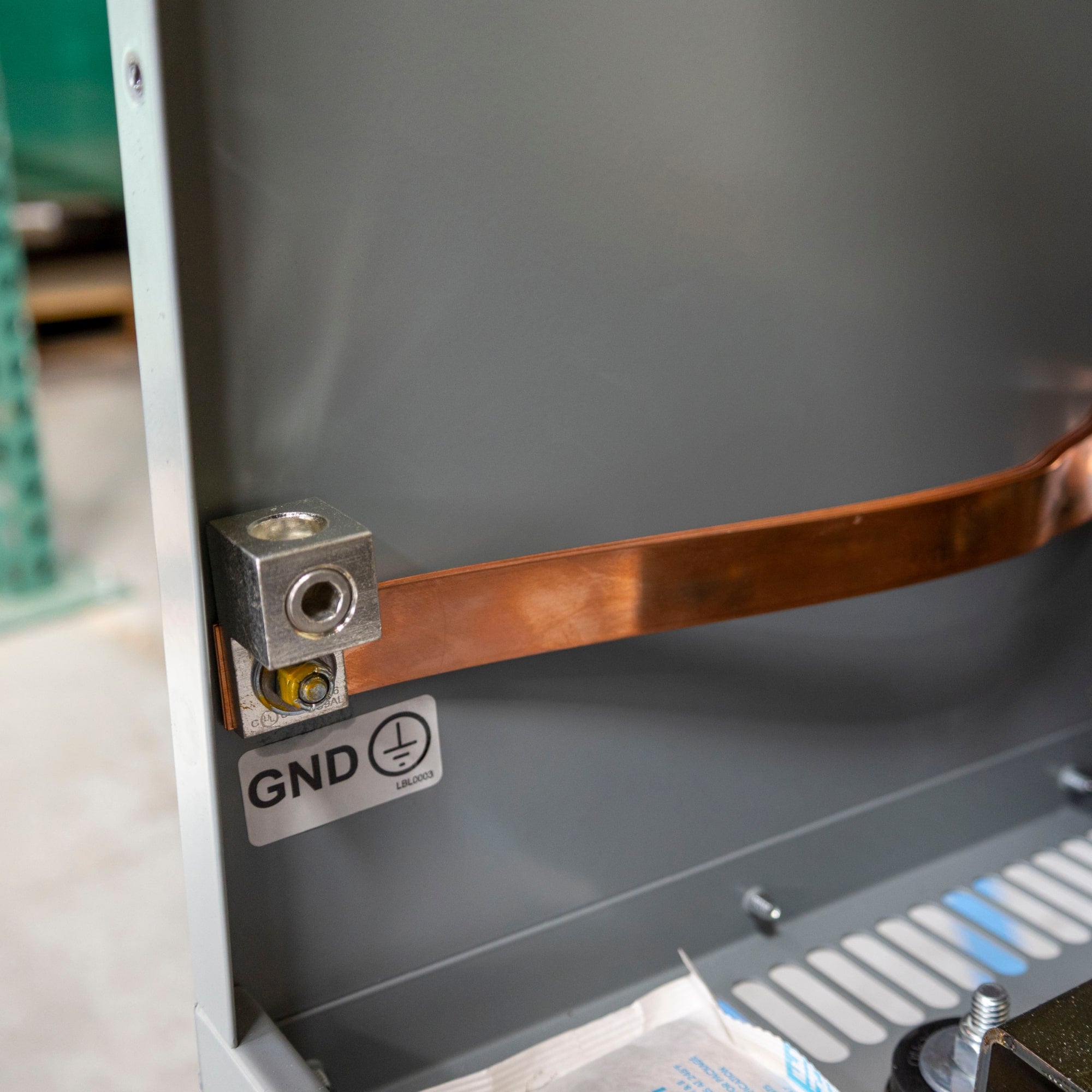

3-phase dry type transformer grounding strap

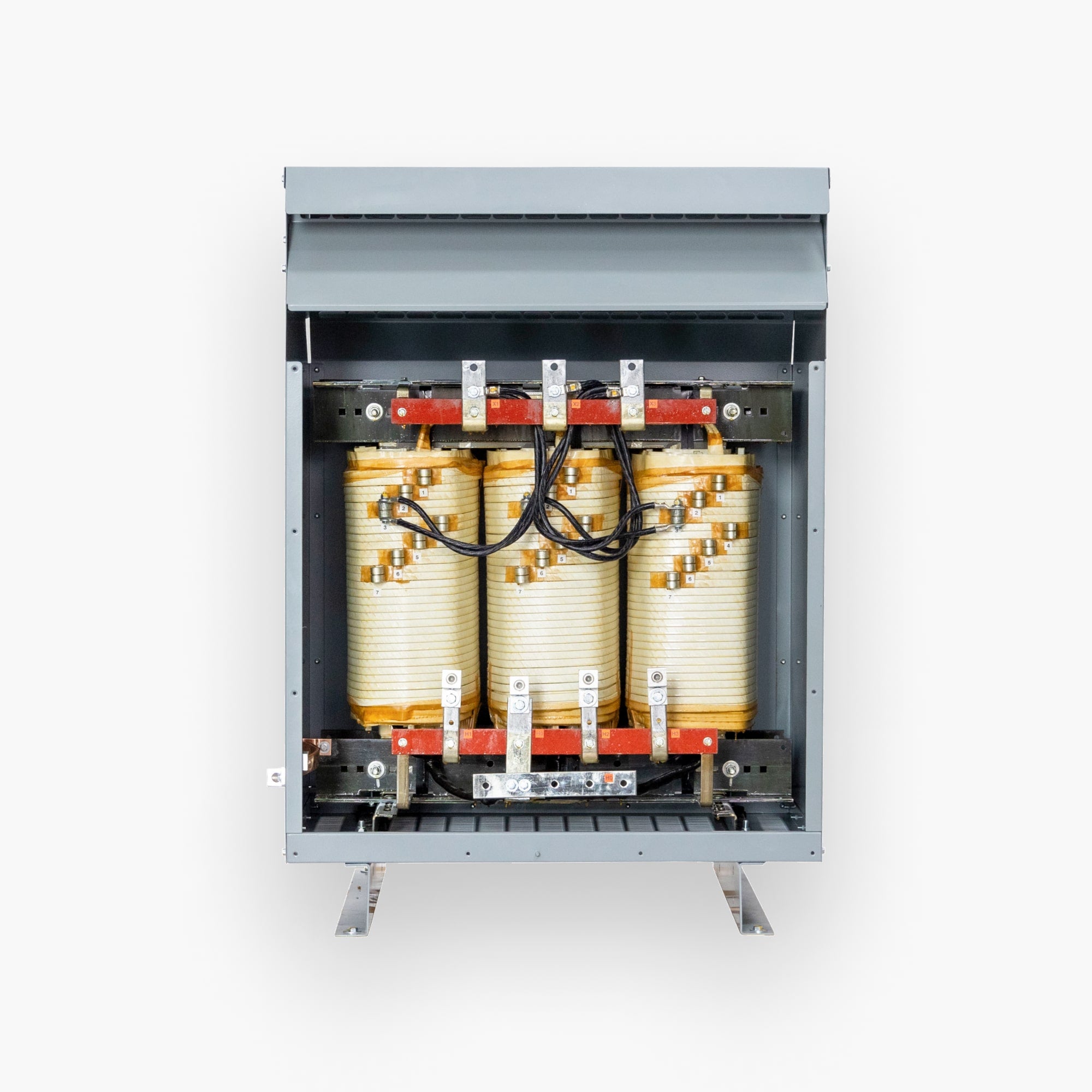

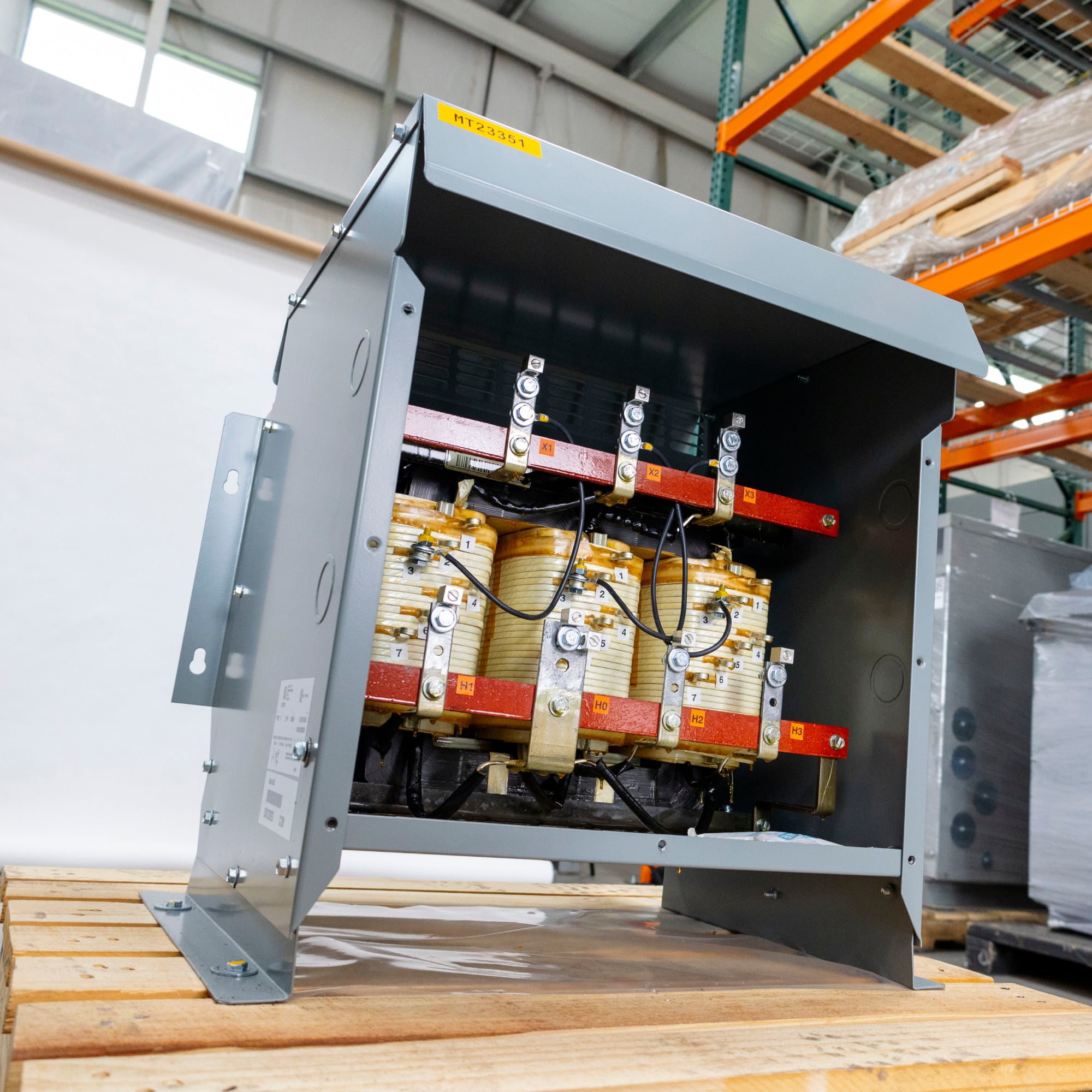

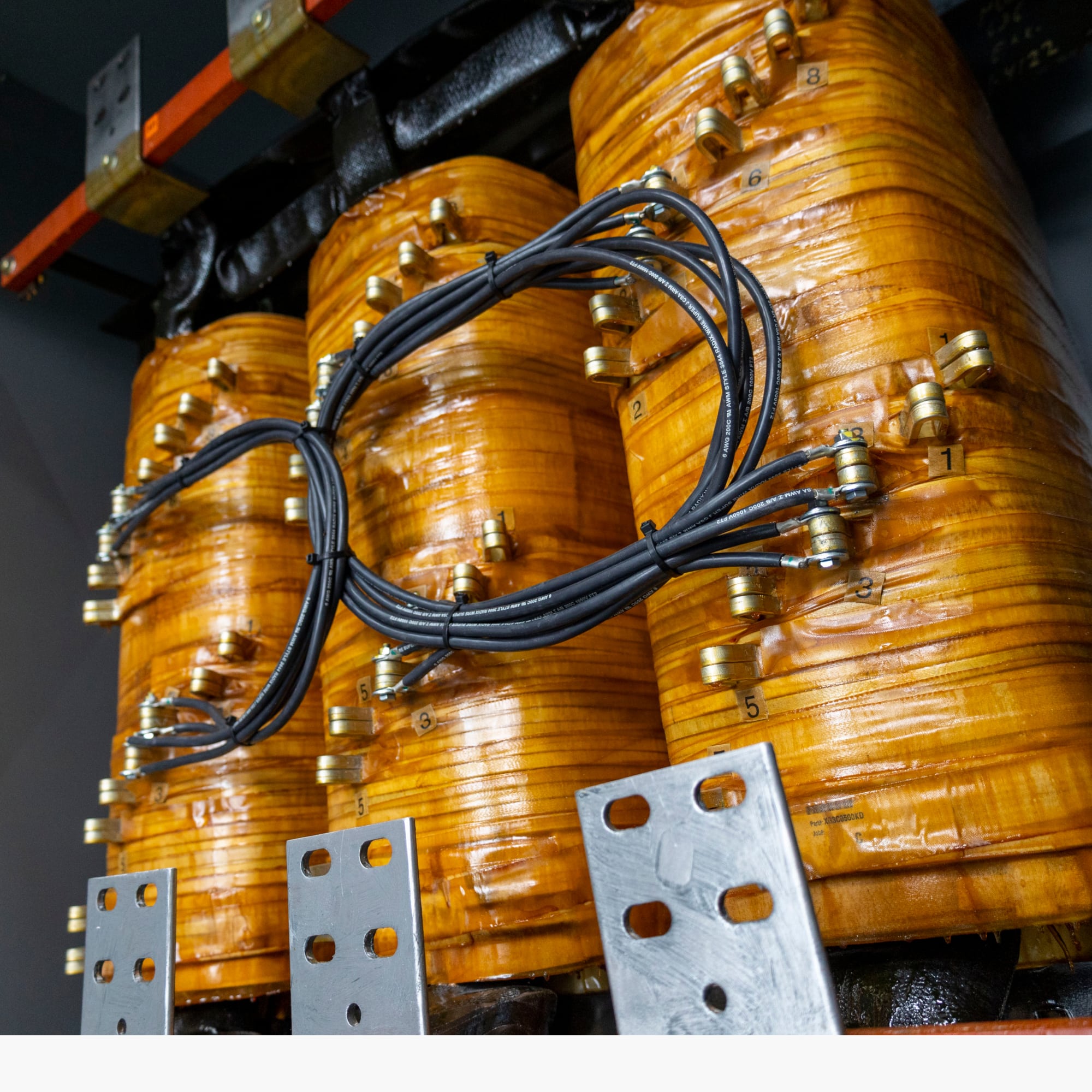

3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer side view
3-phase dry type transformer taps

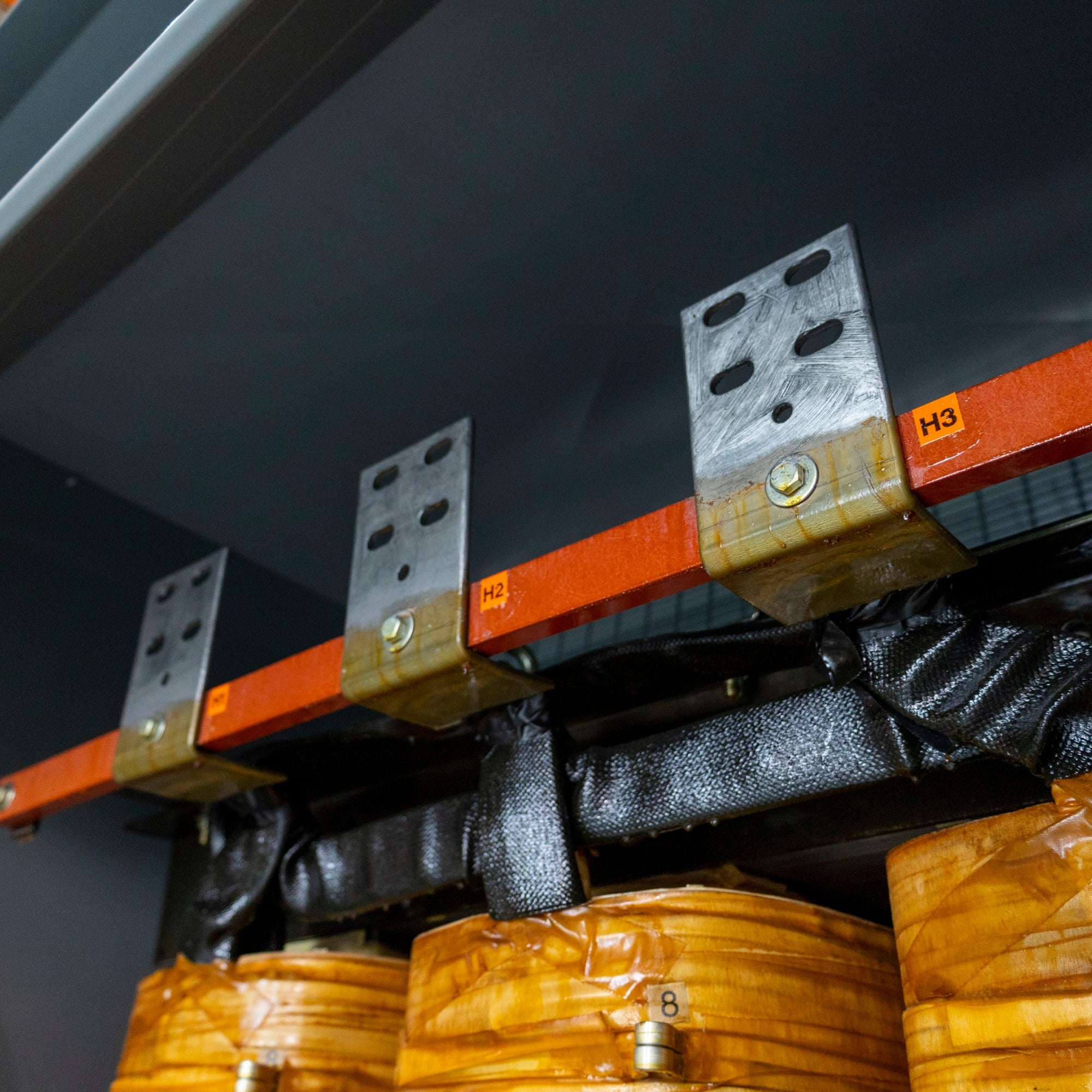

3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail
3-phase dry type transformer
3-phase dry type transformer
3-phase dry type transformer core
3-phase dry type transformer side view
3-phase dry type transformer
3-phase dry type transformer connections
3-phase dry type transformer connections
3-phase dry type transformer core
3-phase dry type transformer core
3-phase dry type transformer grounding strap
3-phase dry type transformer connections
3-phase dry type transformer core
How to install a 3-phase transformer video thumbnail

3-Phase 460 D - 460 Y 266 (Drive Isolation Transformer)

SKU: MIT-DIT-120
Size:

Size

Sale price$1,328
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days

Overview

Maddox Drive-Isolation Transformers are designed to meet the rugged demands of both AC and DC variable speed drives and provide the required voltage change.

The separate windings provide electrical isolation between the incoming power and the SCR or VFD load. The windings are designed to withstand overcurrent at 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds, as well as minor harmonic noise at or below K-Factor 4. Standard duty cycle is one start every two hours.

Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings.

Standard sizes range from 5 to 600 HP in six standard voltages.

Not sure what to buy? Find out more about how to buy the right transformer.





Primary Voltage: 460 D

Secondary Voltage: 460 Y 266

Transformer Specifications:



  • 60 Hz Frequency
  • 150°C Temperature Rise
  • 220°C Insulation Class

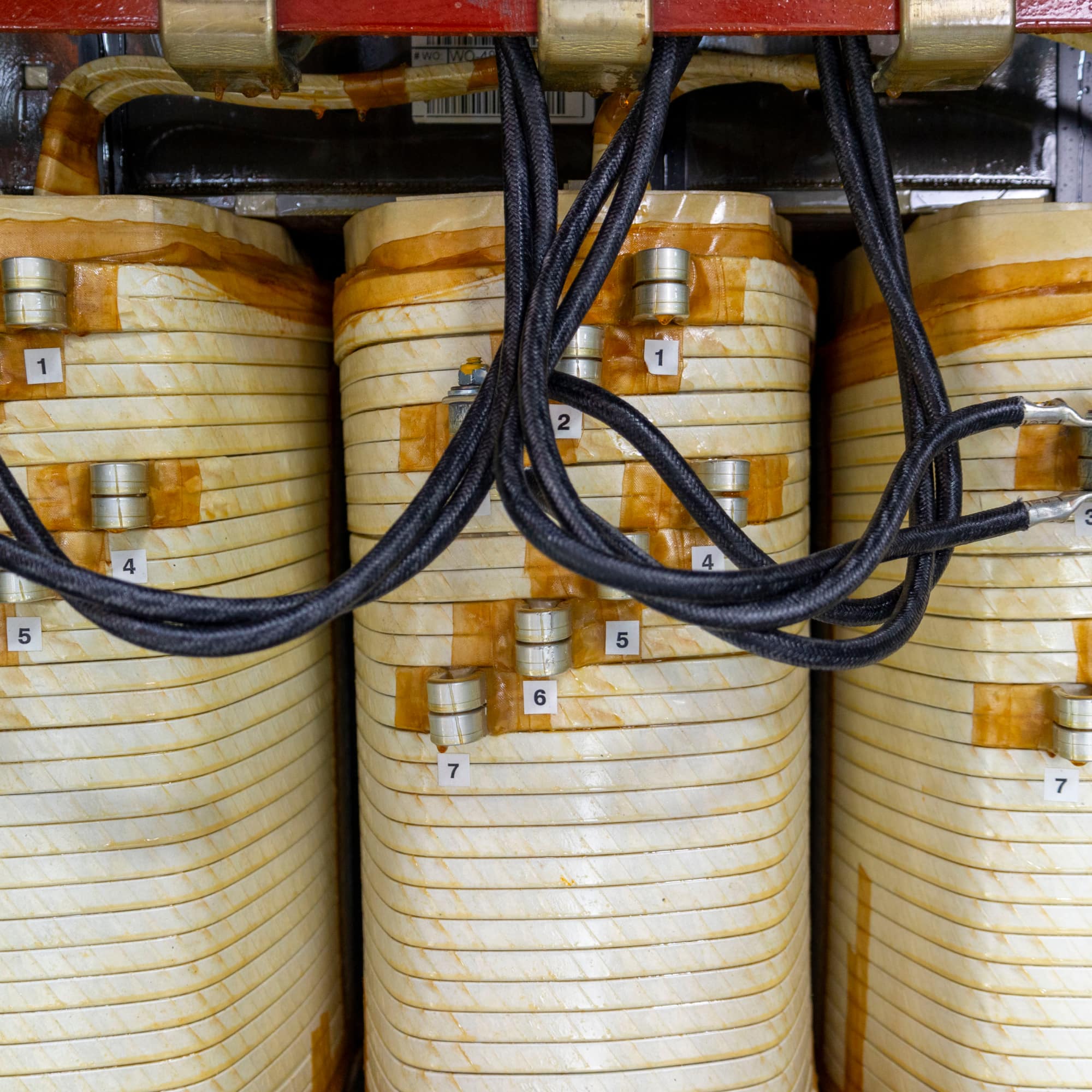

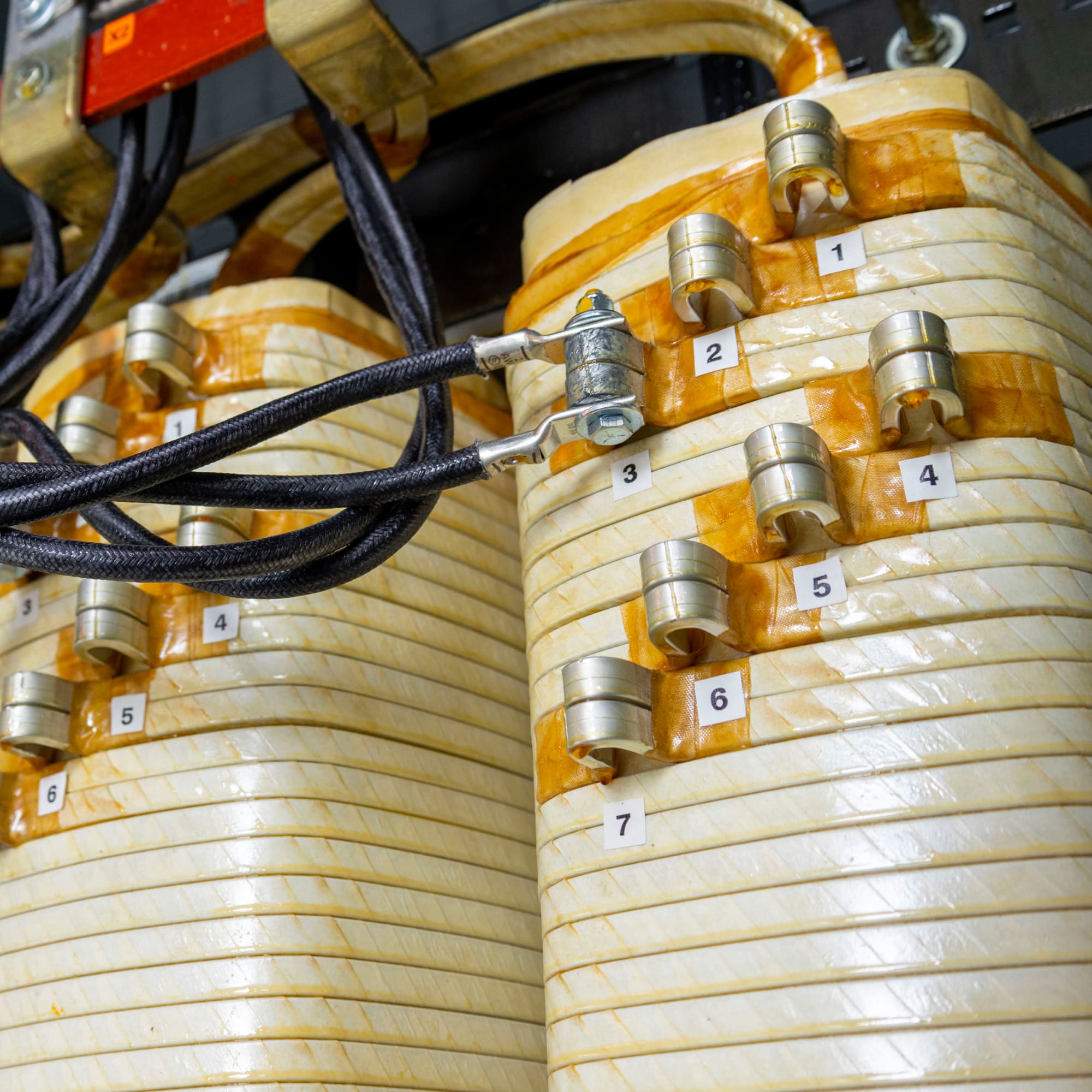

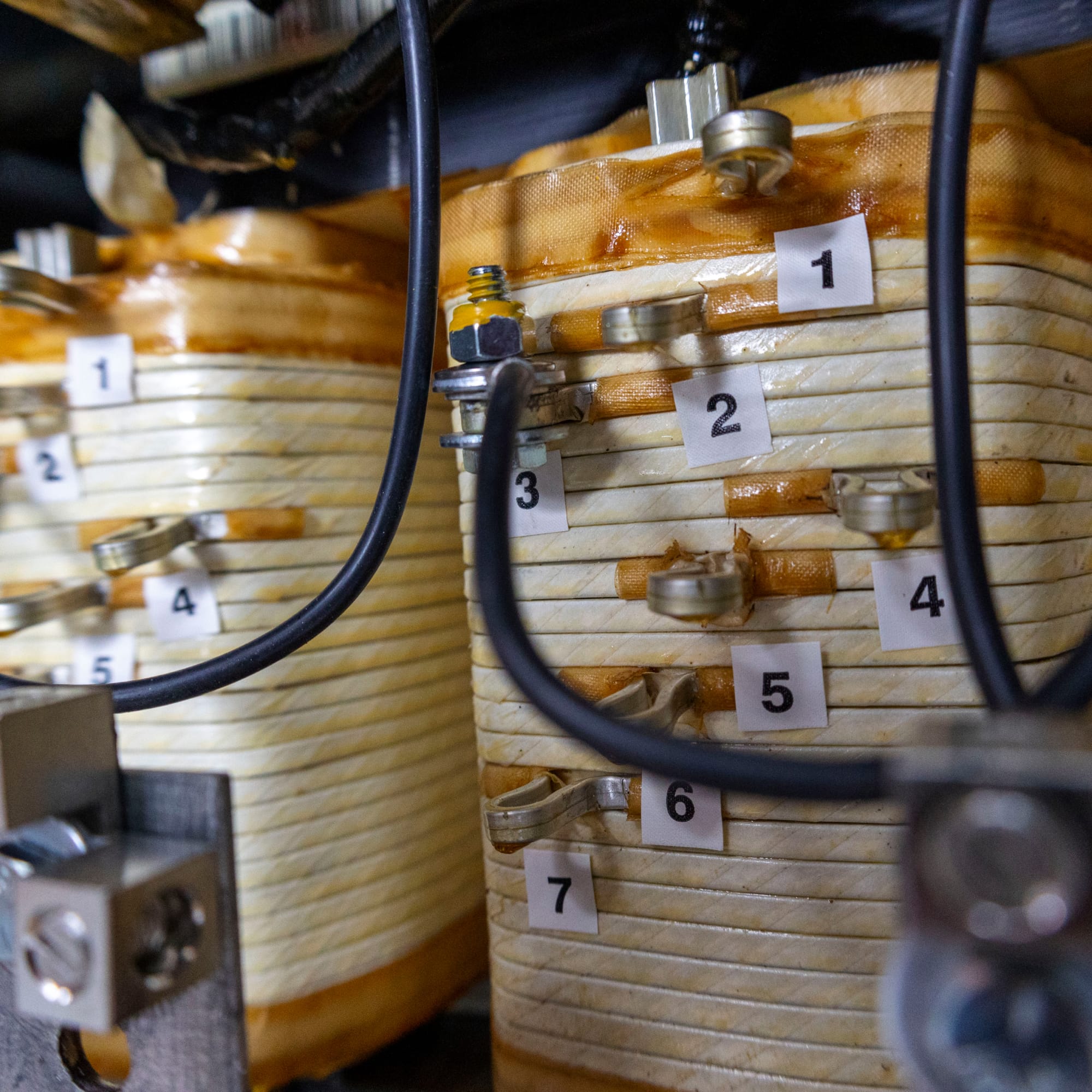

  • Primary Adjustment Taps 2 above, 4 below in 2.5% increments
  • Electrostatically Shielded
  • High Efficiency Aluminum Windings
  • Vacuum pressure Impregnated Windings
  • K4 Rated
  • DOE Exempt
  • Lugs included up to 75 kVA

Transformer may appear different than pictured.




Size Guide

kVA Amps at 460 Startup Amps (low Startup Amps (high)
7.5 9 38 56
11 14 55 83
14 18 70 105
20 25 100 151
27 34 136 203
34 43 171 256
40 50 201 301
51 64 256 384
63 79 316 474
75 94 377 565
93 117 467 700
118 148 592 889
145 182 728 1092
175 220 879 1318
220 276 1105 1657
275 345 1381 2071
330 414 1647 2485
440 552 2209 3314
550 690 2761 4142
660 828 3314 4970

kVA Sizing Recommendation: At least 20% above the rated horsepower on the motor.

Dimensions & Weights

kVA Dimensions (HxWxD) Weight (lbs)
7.5 21.5"x19.38"x20.2" 125
11 21.5"x19.38"x20.2" 150
14 21.5"x19.38"x20.2" 180
20 28.75"x23.9"x25" 225
27 28.75"x23.9"x25" 280
34 28.75"x23.9"x25" 305
40 28.75"x23.9"x25" 315
51 28.75"x23.9"x25" 370
63 38"x26"x21" 510
75 38"x26"x21" 570
93 38"x26"x21" 570
118 38"x26"x21" 695
145 41"x32"x25.5" 825
175 41"x32"x25.5" 925
220 41"x32"x25.5" 1300
275 51.5"x39.5"x34" 1450
330 51.5"x39.5"x34" 1650
440 59"x48.5"x38" 2100
550 59"x48.5"x38" 2900
660 66"x51.5"x43" 3400



Approximate Enclosure Dimensions & Weights
