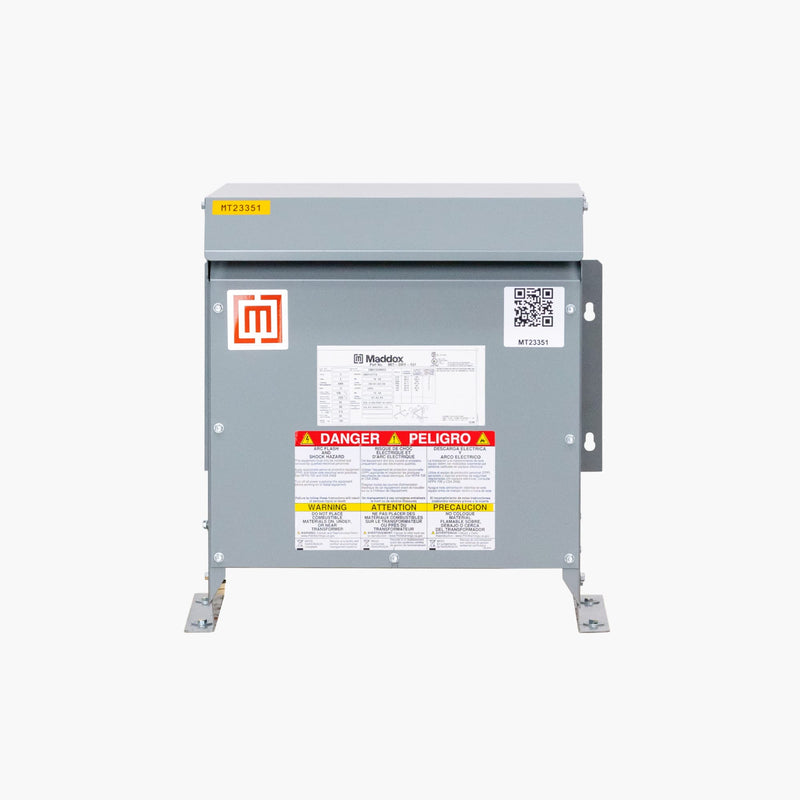

The front of a 3-Phase 480 D - 240 Y 139 (Drive Isolation Transformer)
3-phase drive isolation transformer core
3-phase drive isolation transformer
3-phase drive isolation transformer side view
3-phase drive isolation transformer back view
3-phase drive isolation transformer ready to ship
3-phase drive isolation transformer connections
3-phase drive isolation transformer taps
3-phase drive isolation transformer connections
3-phase drive isolation transformer grounding strap
3-phase drive isolation transformer core
How to install a 3-phase transformer video thumbnail
3-phase drive isolation transformer
3-phase drive isolation transformer core
3-phase drive isolation transformer
3-phase drive isolation transformer
3-phase drive isolation transformer side view
3-phase drive isolation transformer taps
3-phase drive isolation transformer connections
3-phase drive isolation transformer connections
3-phase drive isolation transformer core
3-phase drive isolation transformer grounding strap
3-phase drive isolation transformer connections
3-phase drive isolation transformer core
How to install a 3-phase transformer video thumbnail

3-Phase 480 D - 240 Y 139 (Drive Isolation Transformer)

SKU: MIT-DIT-149
Size:

Size

Sale price$1,401
Quantity:

Estimated Delivery Date: (call to expedite)

Transformer is in stock! Delivers in 5 - 7 business days



Primary Voltage: 480 D

Secondary Voltage: 240 Y 139

Maddox Drive-Isolation Transformers are designed to meet the rugged demands of both AC and DC variable speed drives and provide the required voltage change.

The separate windings provide electrical isolation between the incoming power and the SCR or VFD load. The windings are designed to withstand overcurrent at 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds, as well as minor harmonic noise at or below K-Factor 4. Standard duty cycle is one start every two hours.

Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings.

Standard sizes range from 5 to 600 HP in six standard voltages.

Transformer Specifications:



  • CSA and UL Approved
  • 60 Hz Frequency
  • 150°C Temperature Rise
  • 220°C Insulation Class
  • Primary Adjustment Taps 1 above, 1 below in 5% increments
  • Electrostatically Shielded
  • High Efficiency Aluminum Windings
  • Vacuum pressure Impregnated Windings
  • NEMA 3R Outdoor/Indoor Enclosure
  • DOE Exempt
  • Lugs included up to 75 kVA

Transformer may appear different than pictured.





Size Guide

kVA Amps at 480 Amps at 240 Startup Amps (low) Startup Amps (high)
11 13 26 106 159
14 17 34 135 202
20 24 48 192 289
27 32 65 260 390
34 41 82 327 491
40 48 96 385 577
51 61 123 491 736
63 76 152 606 909
75 90 180 722 1083



kVA Sizing Recommendation: At least 20% above the rated horsepower on the motor.

Dimensions & Weights

kVA Dimensions (HxWxD) Weight (lbs)
11 21.5"x19.38"x20.2" 150
14 21.5"x19.38"x20.2" 180
20 28.75"x23.9"x25" 225
27 28.75"x23.9"x25" 280
34 28.75"x23.9"x25" 305
40 28.75"x23.9"x25" 315
51 28.75"x23.9"x25" 370
63 38"x36"x21" 510
75 38"x36"x21" 570


Approximate Enclosure Dimensions & Weights

Shipping rates vary, but are generally 10% of the total purchase price.

Transformers deliver in 5-7 business days.
