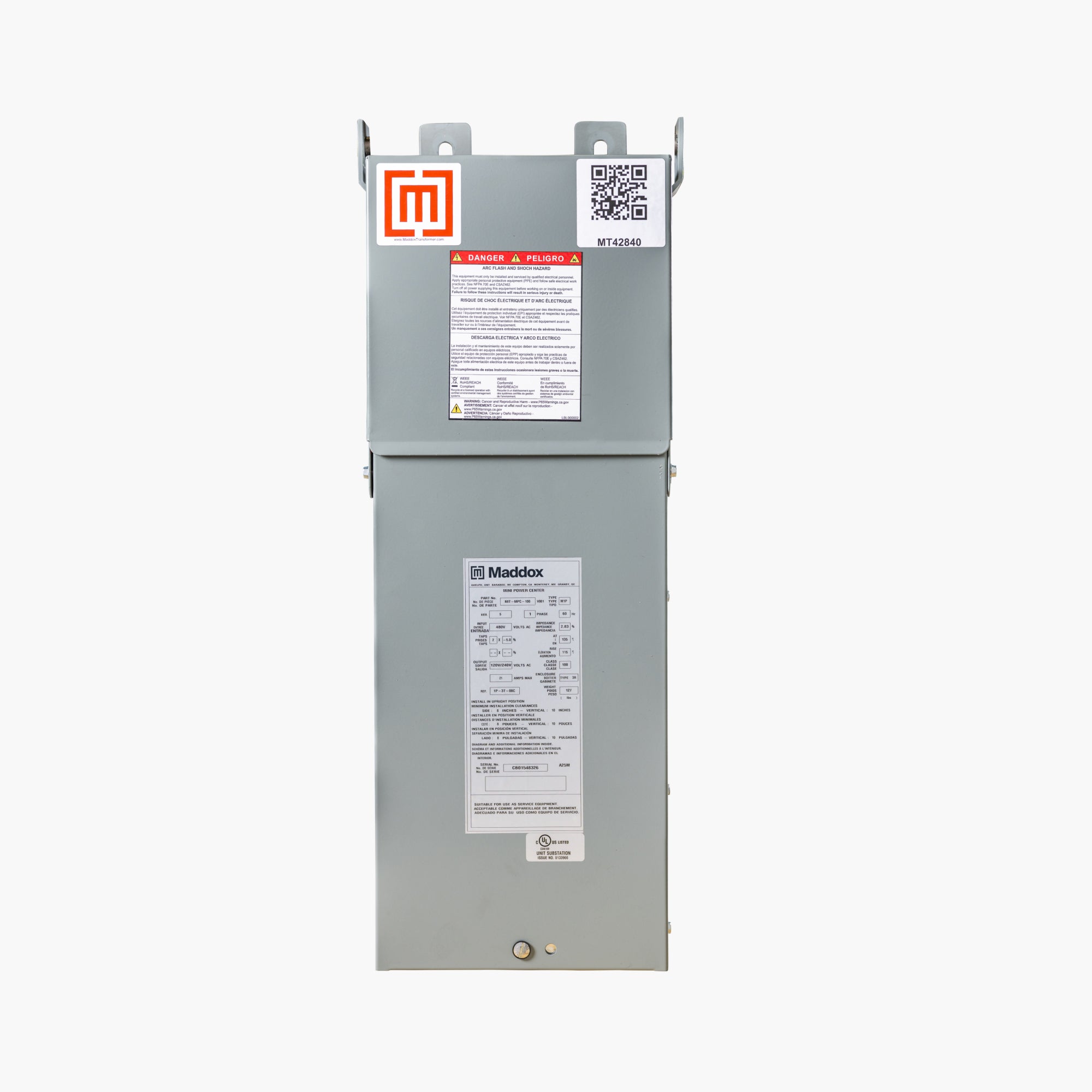

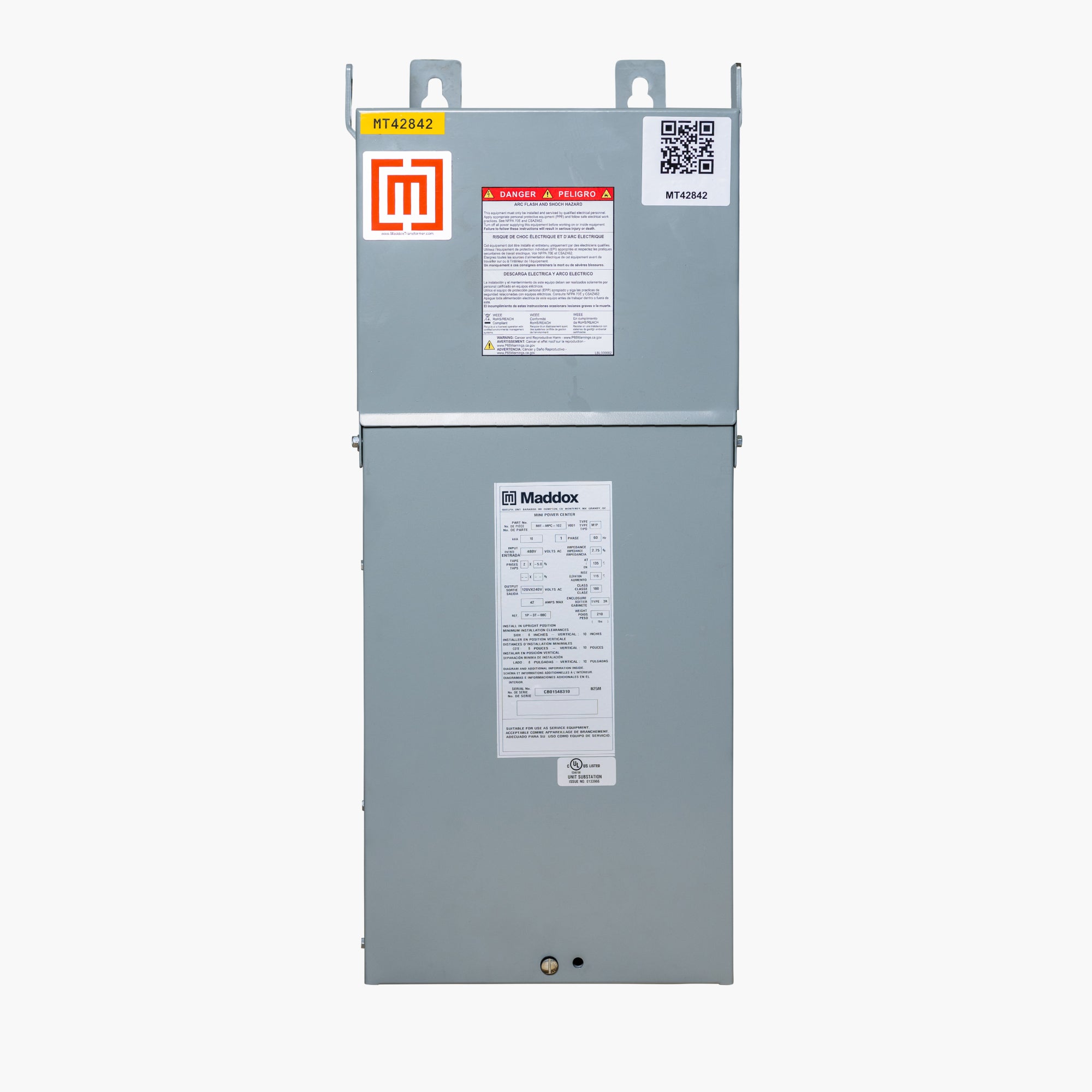

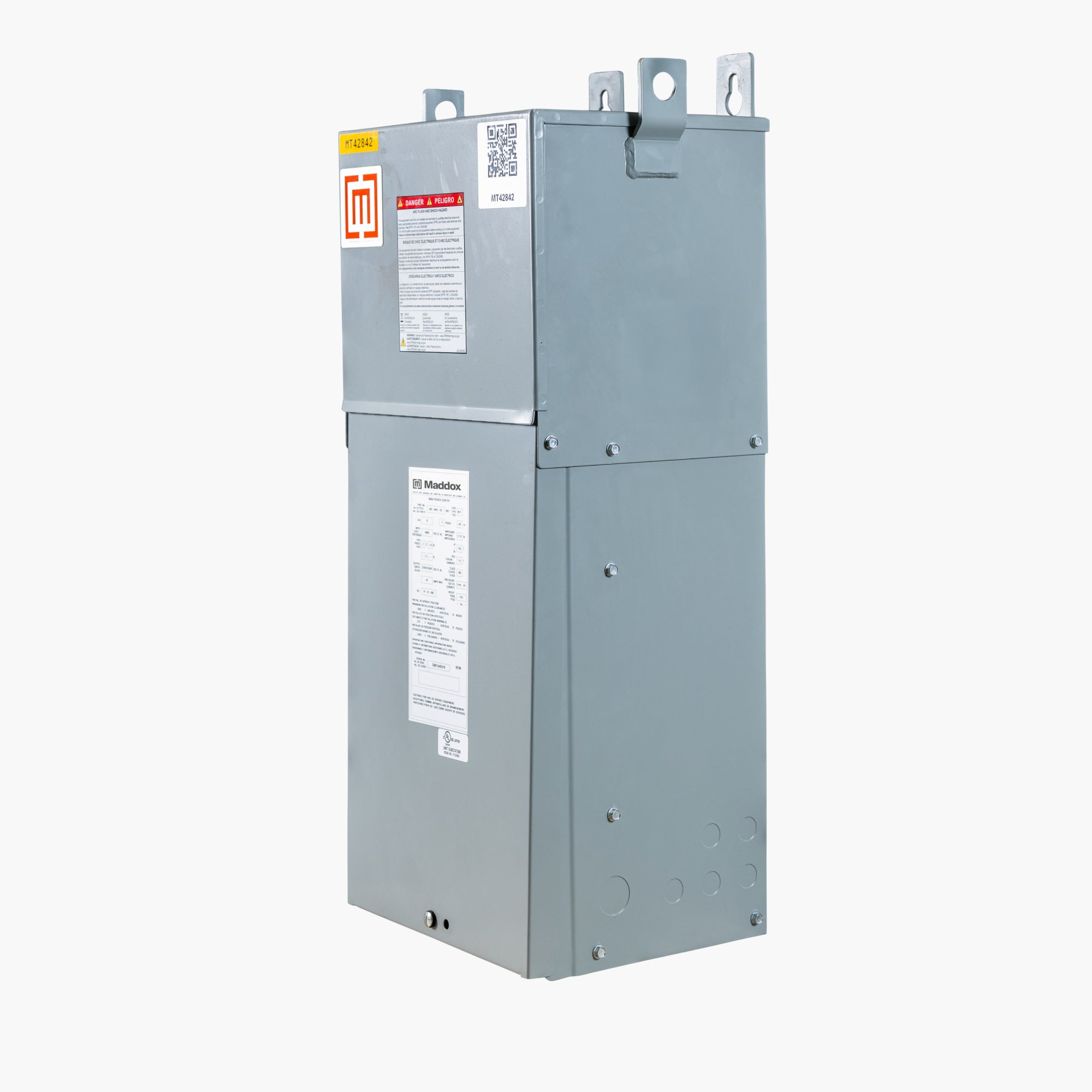

1-Phase Mini Power Center 480v - 120/240
Size
Estimated Delivery Date: (call to expedite)
Transformer is in stock! Delivers in 3 - 5 business days
WHY BUY USED?
Same Warranty. Better Price.
Used transformers carry the same warranty as new ones with pictures and test results available on request. Give us a call and we’ll check our inventory.
Overview

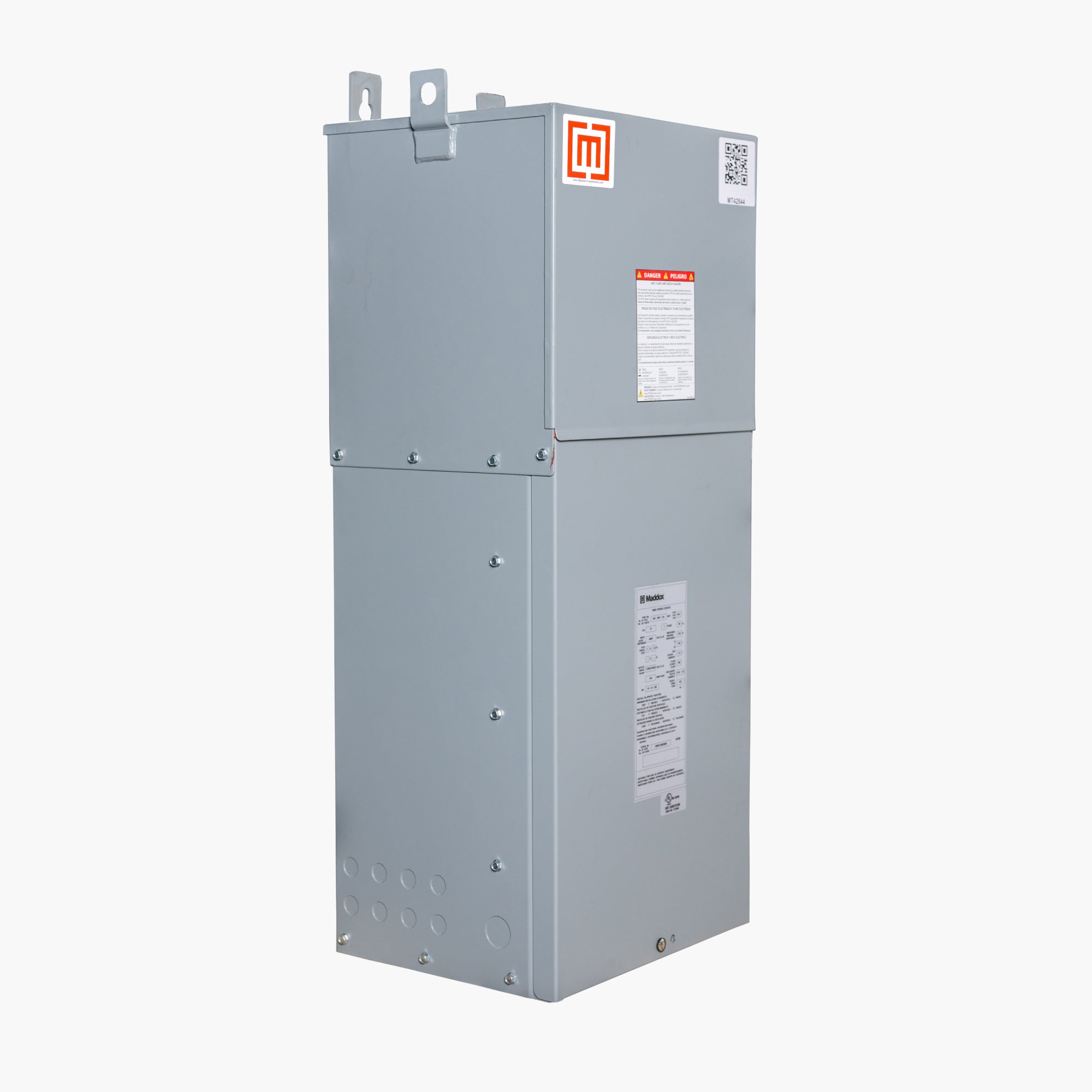

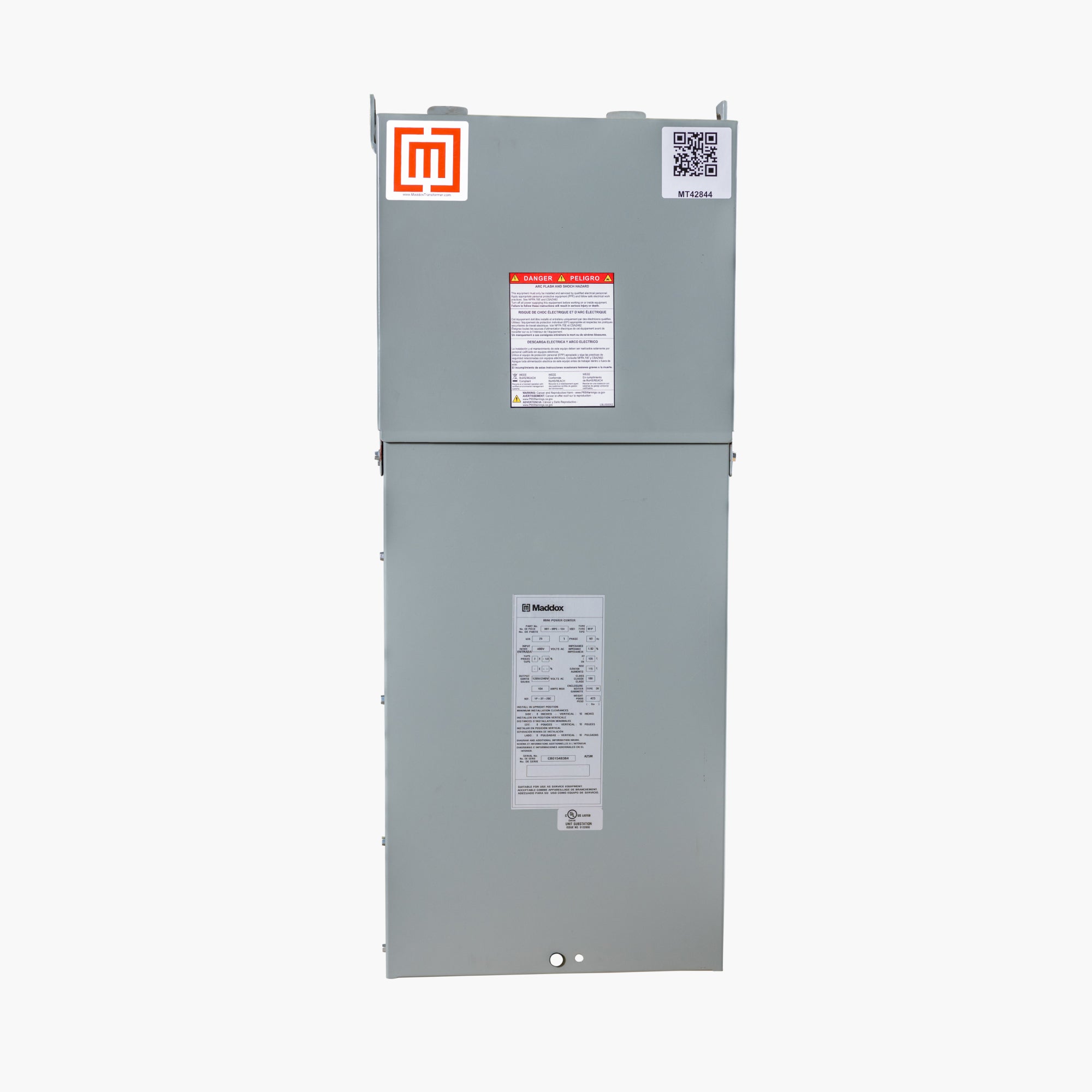

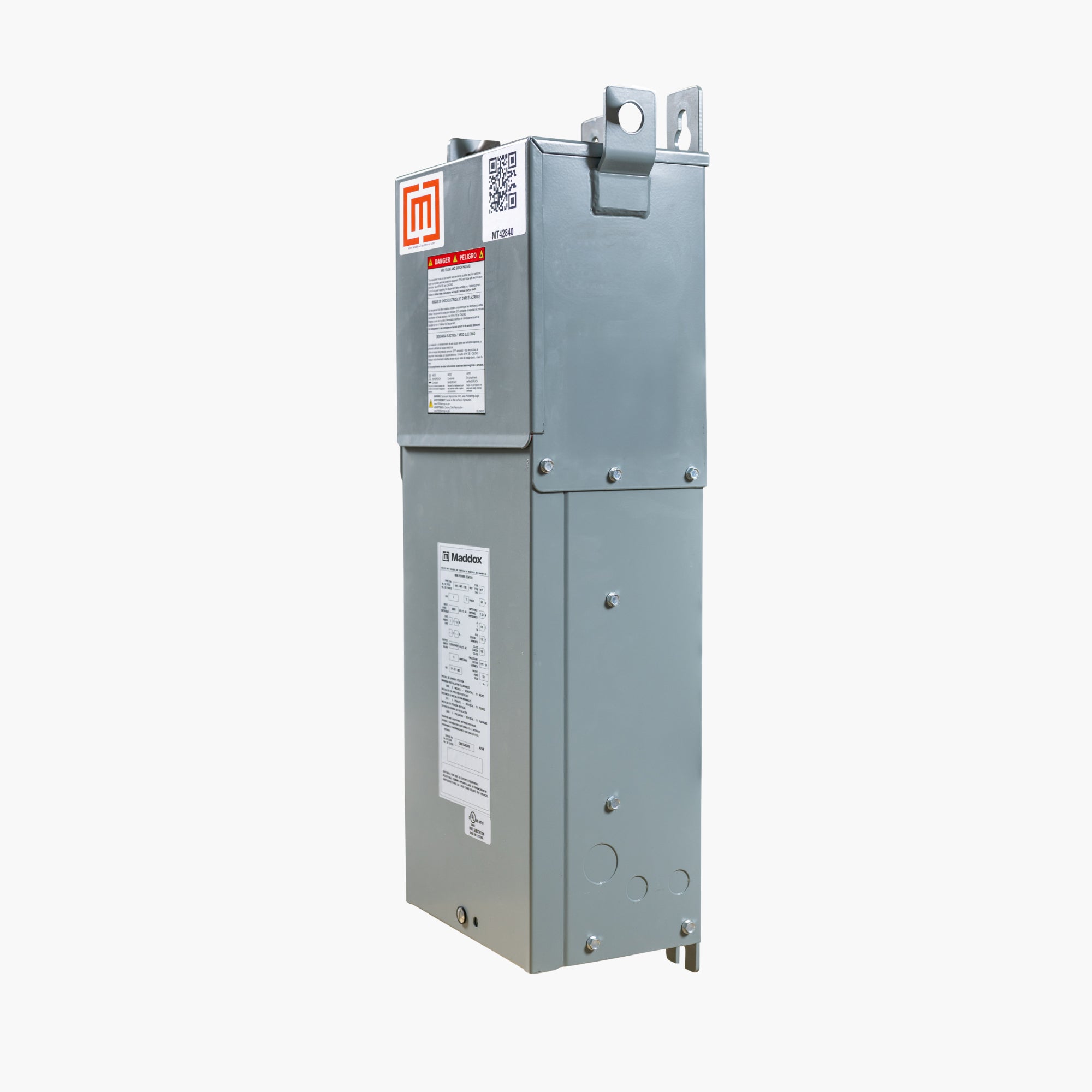

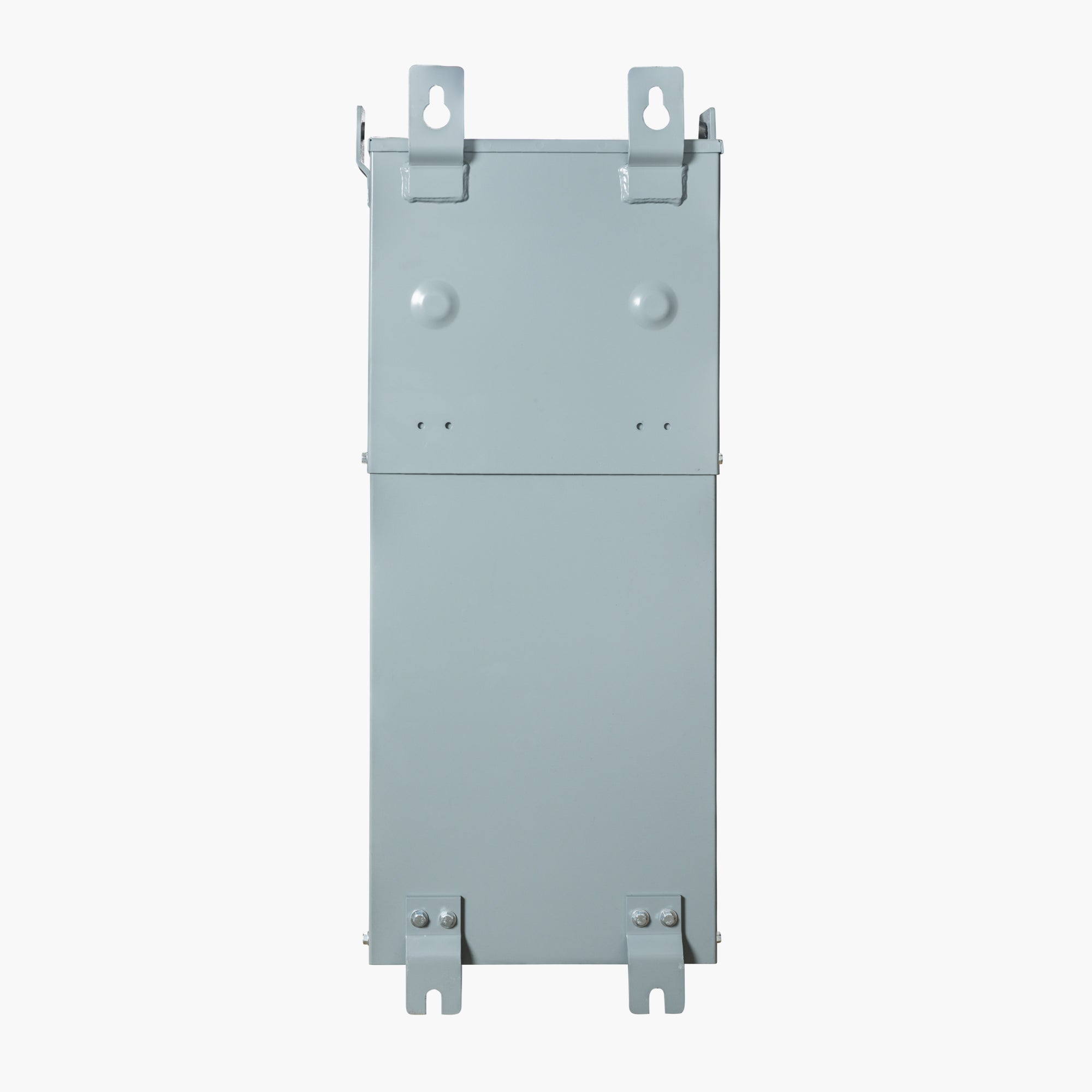

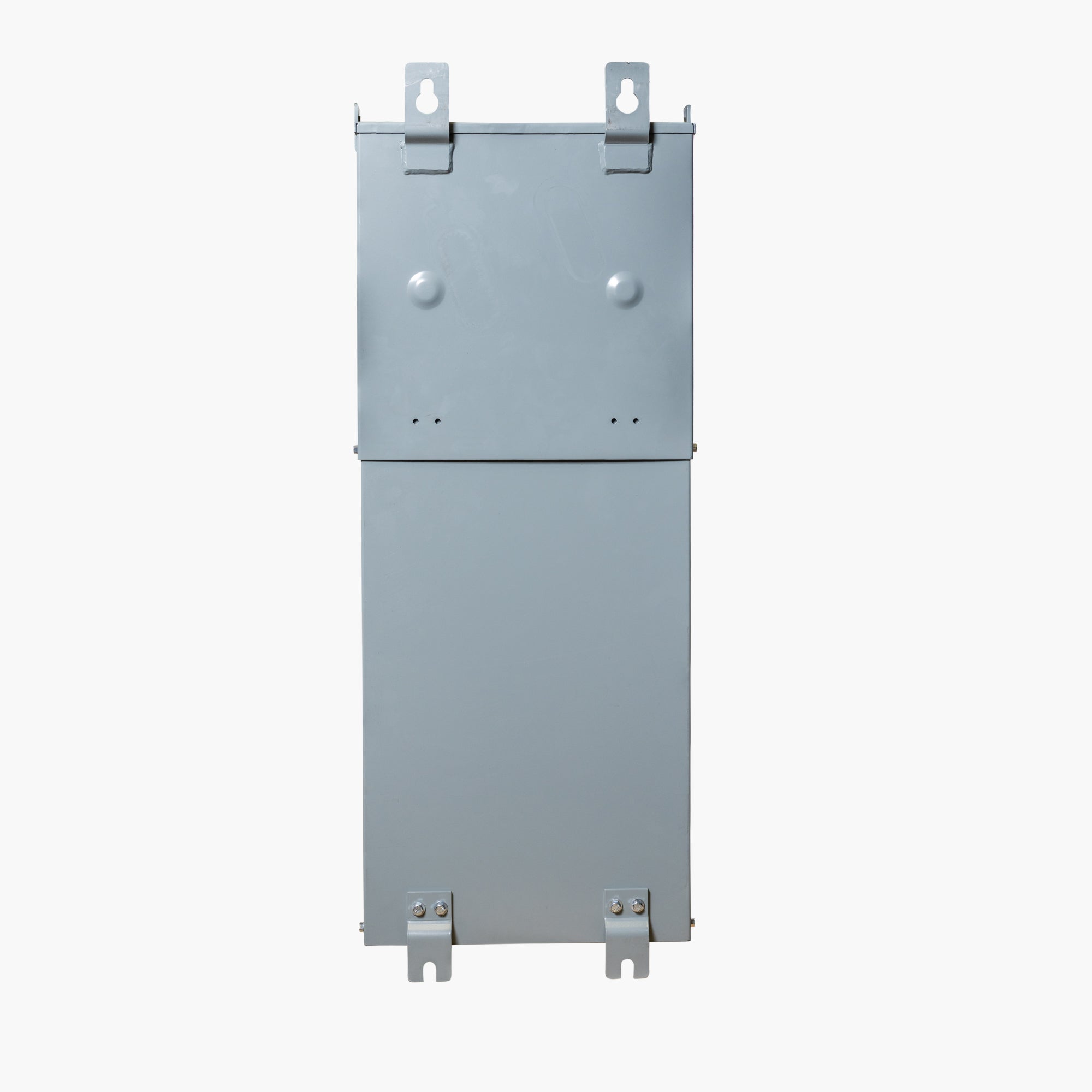

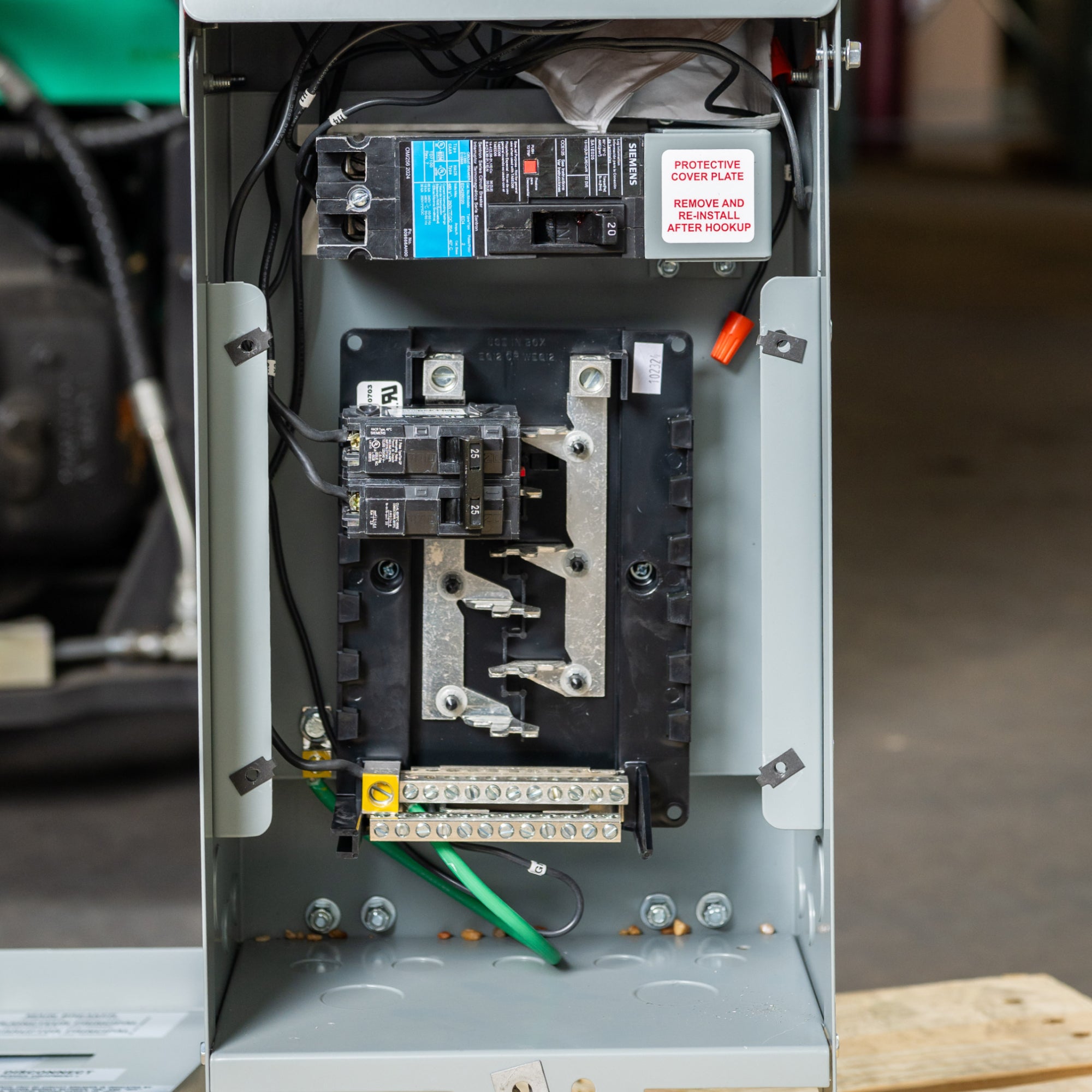

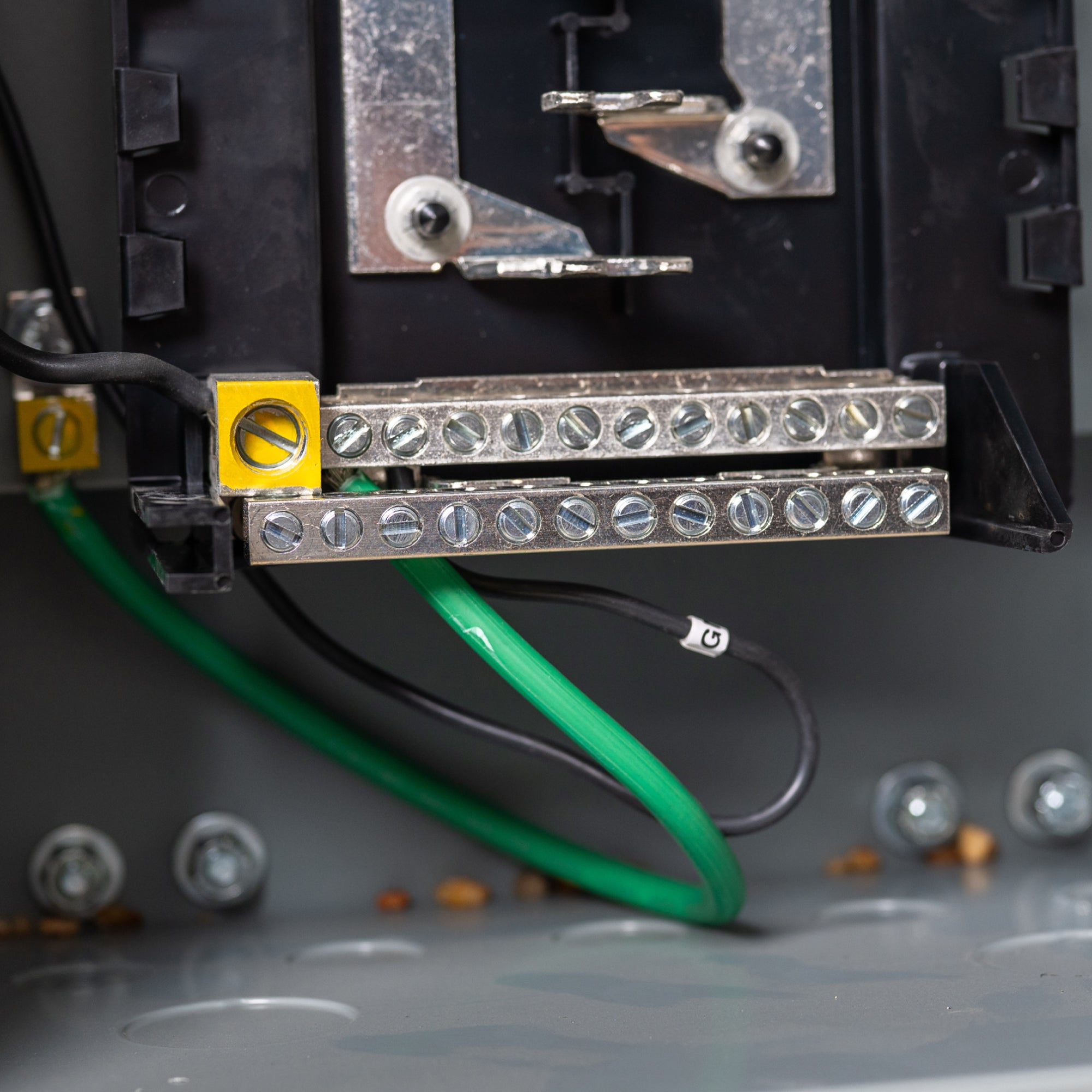

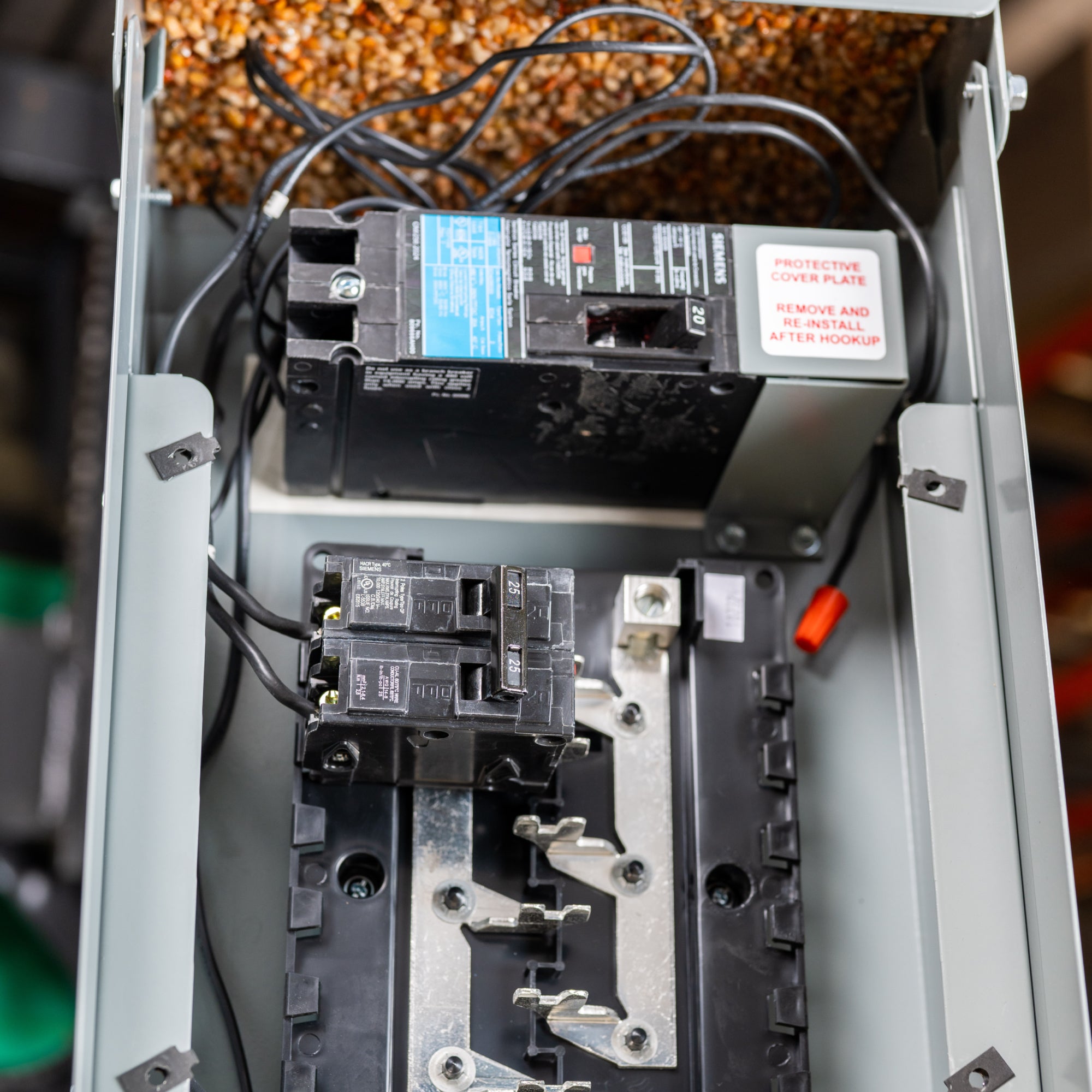

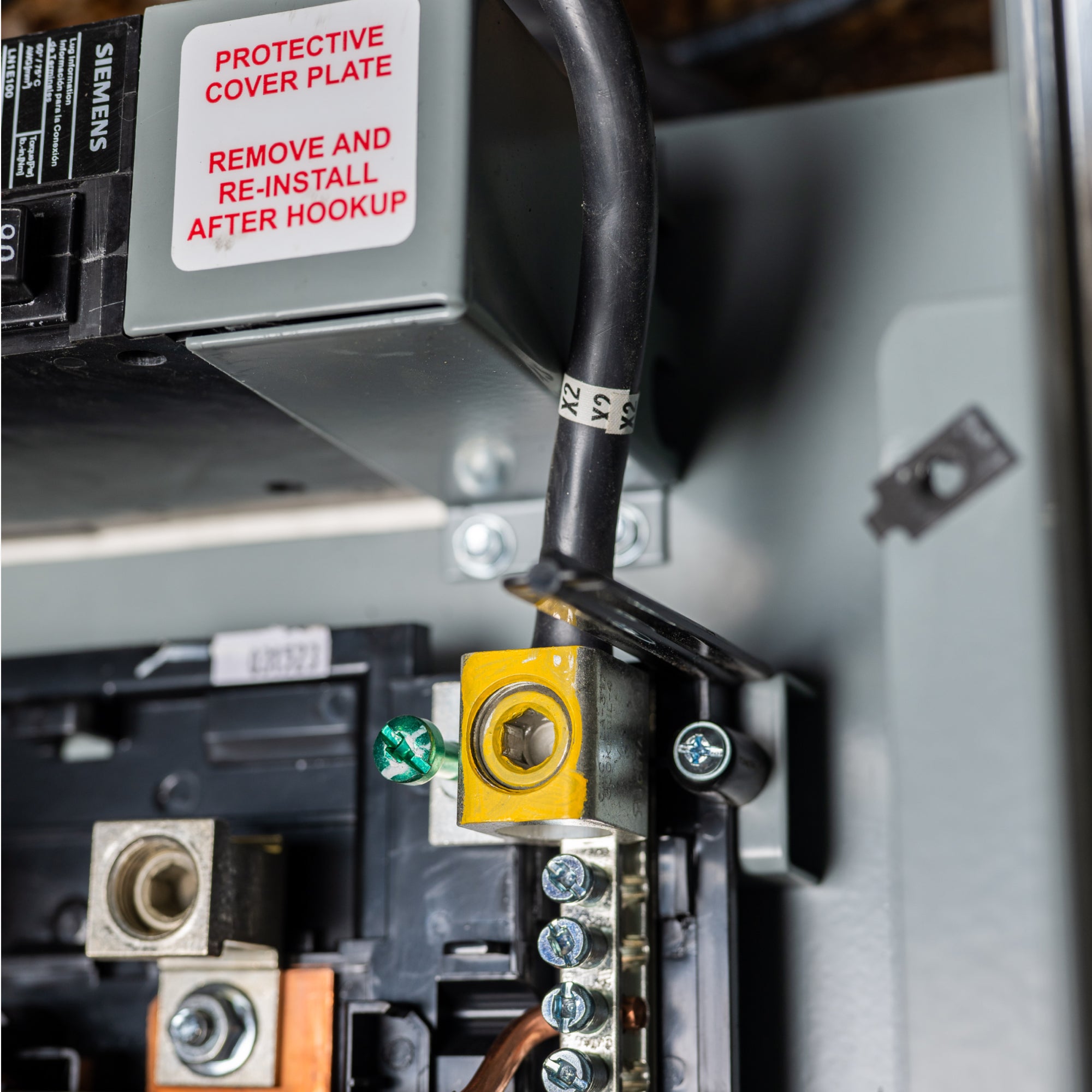

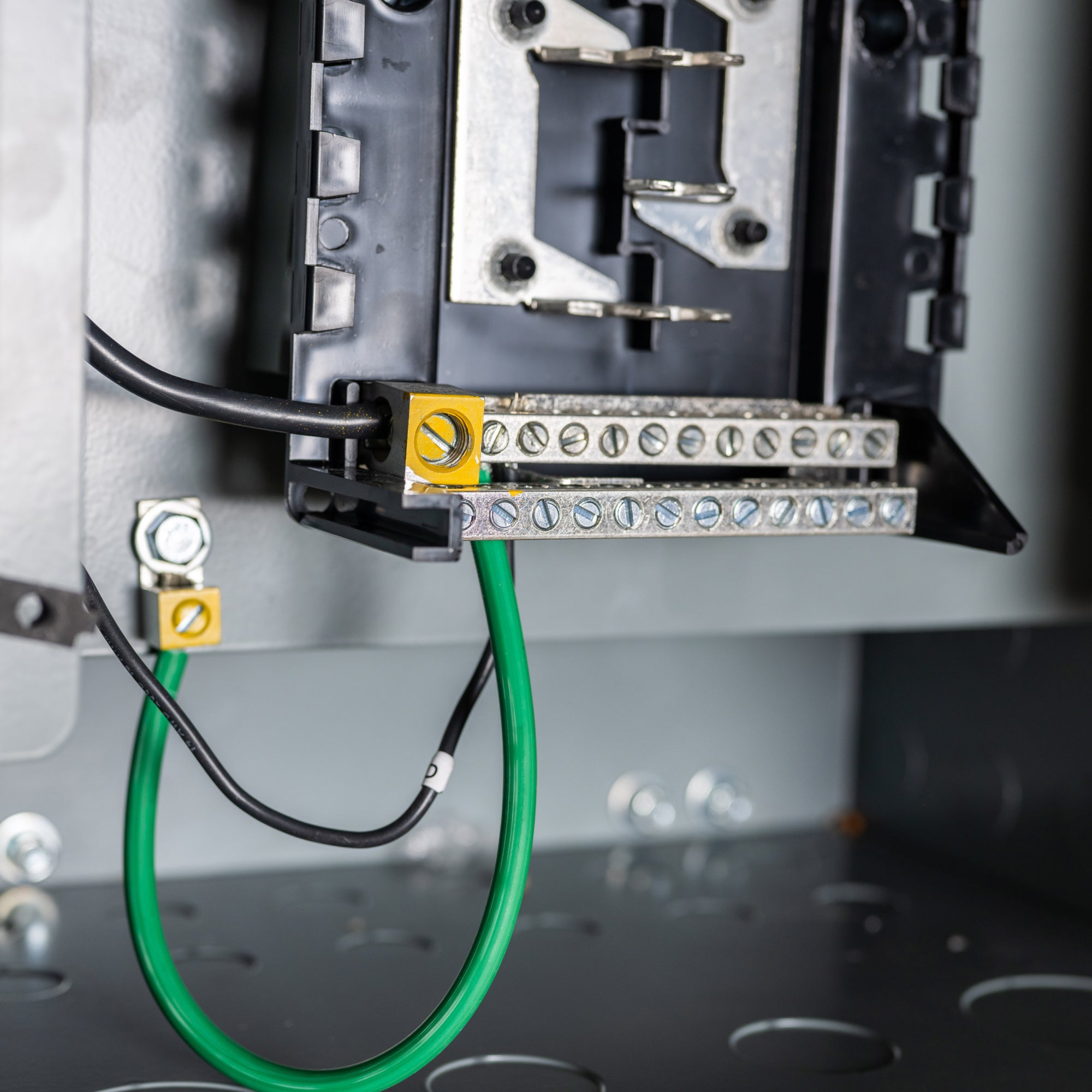

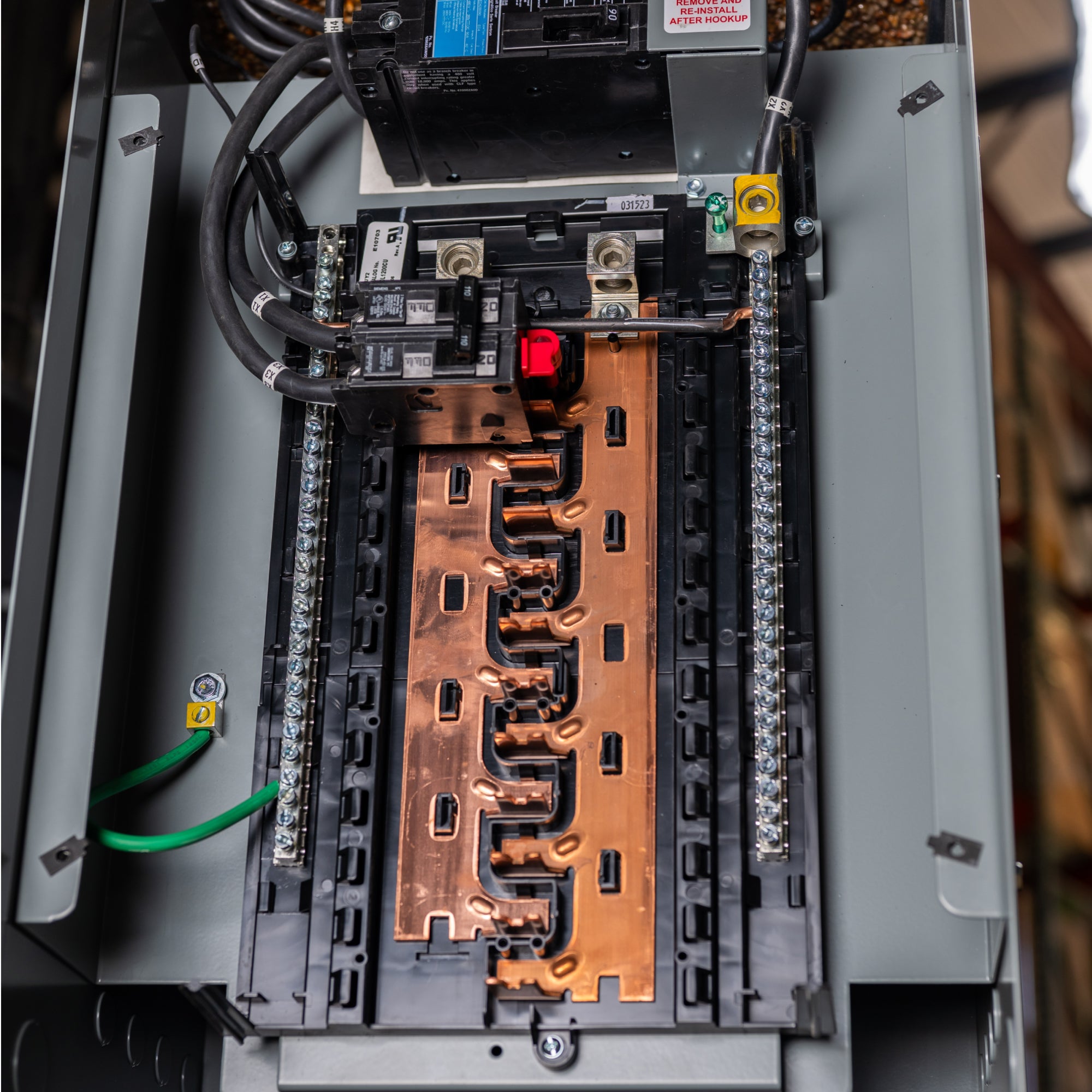

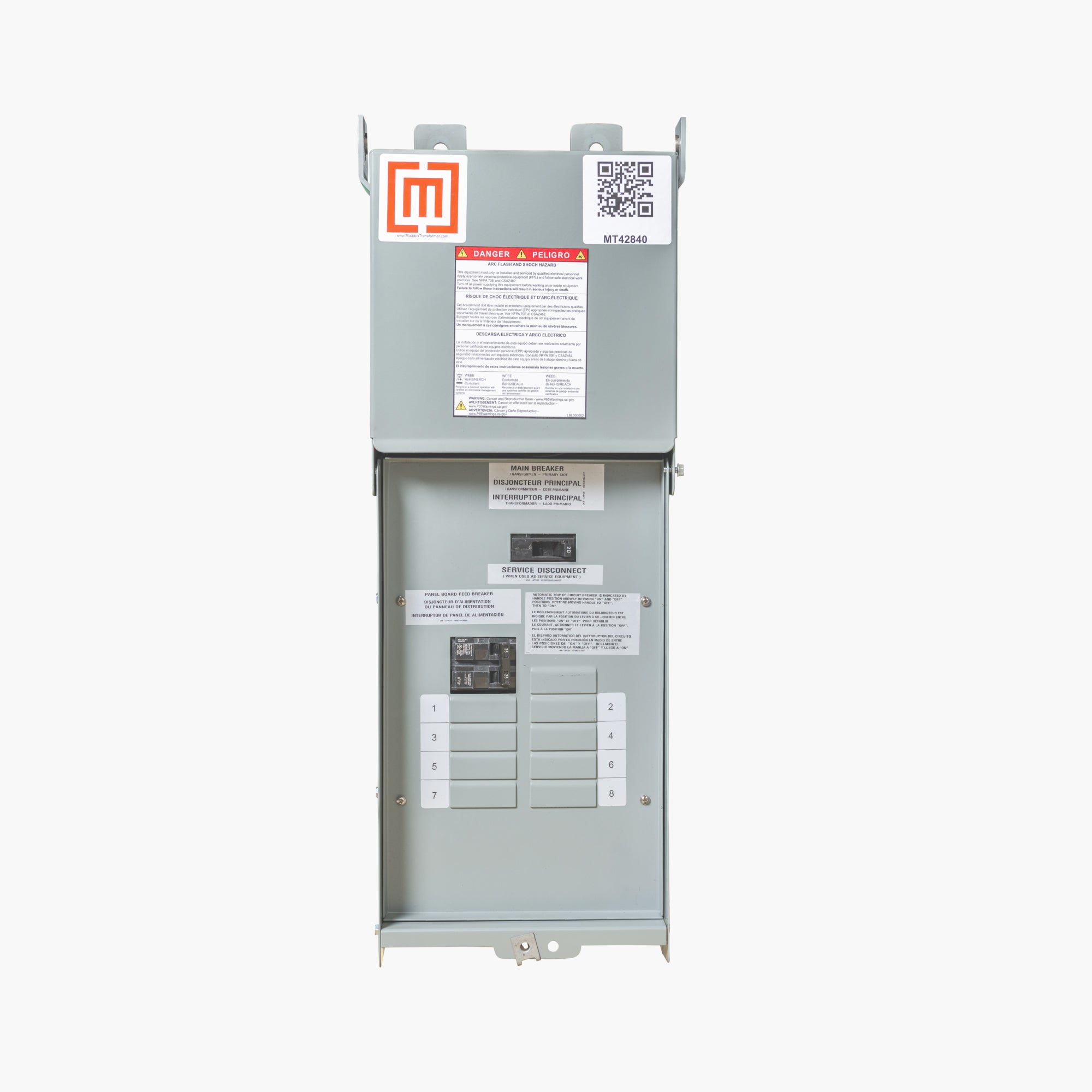

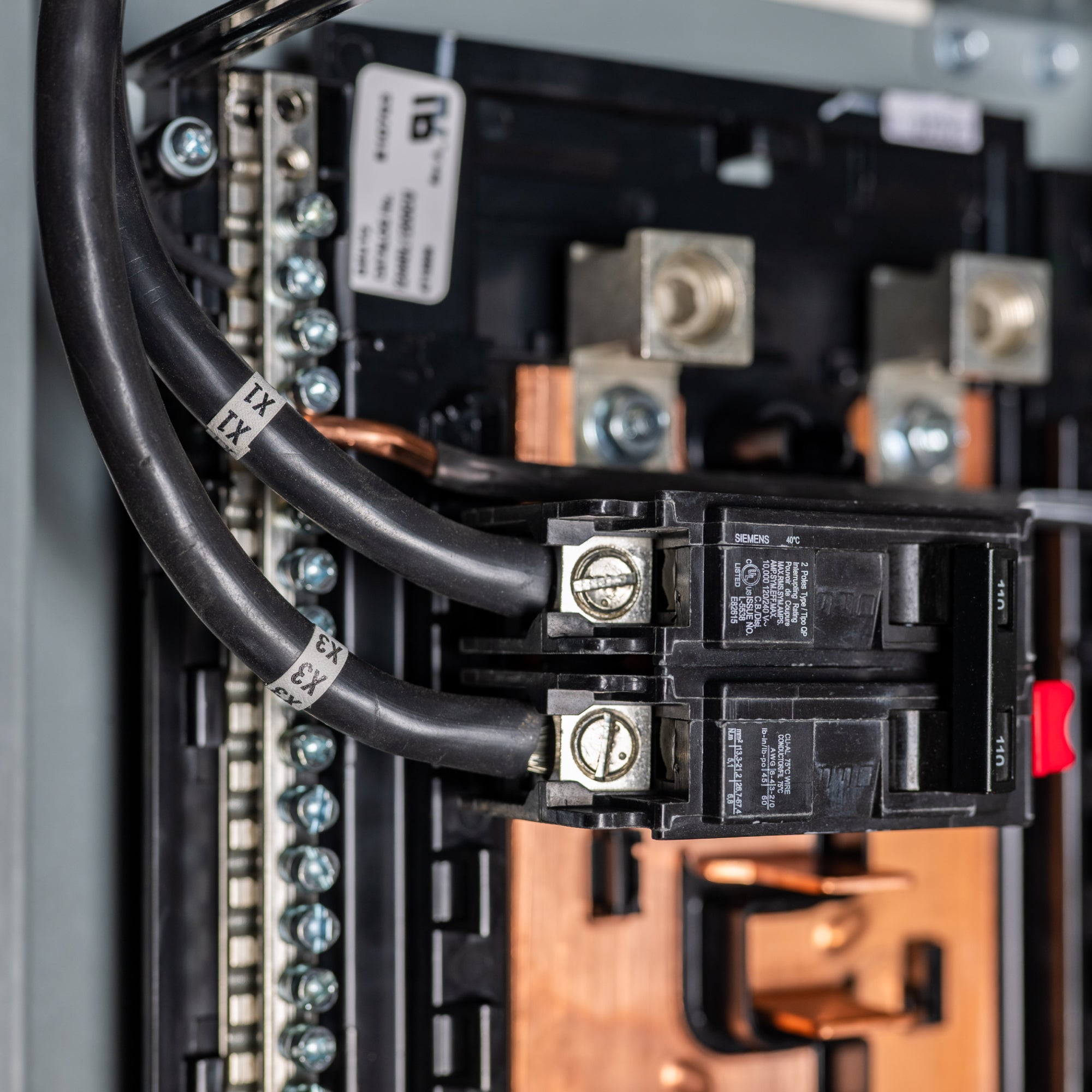

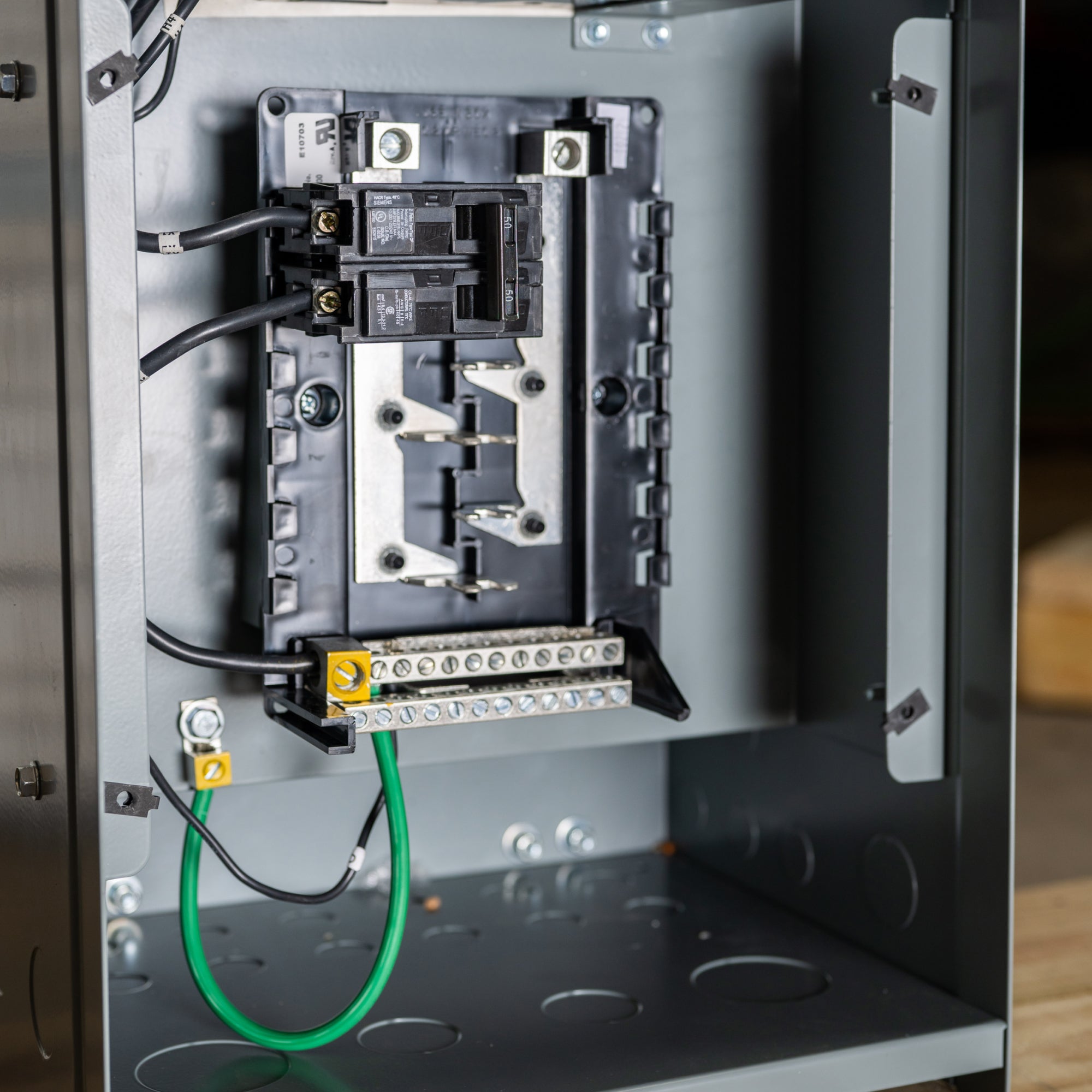

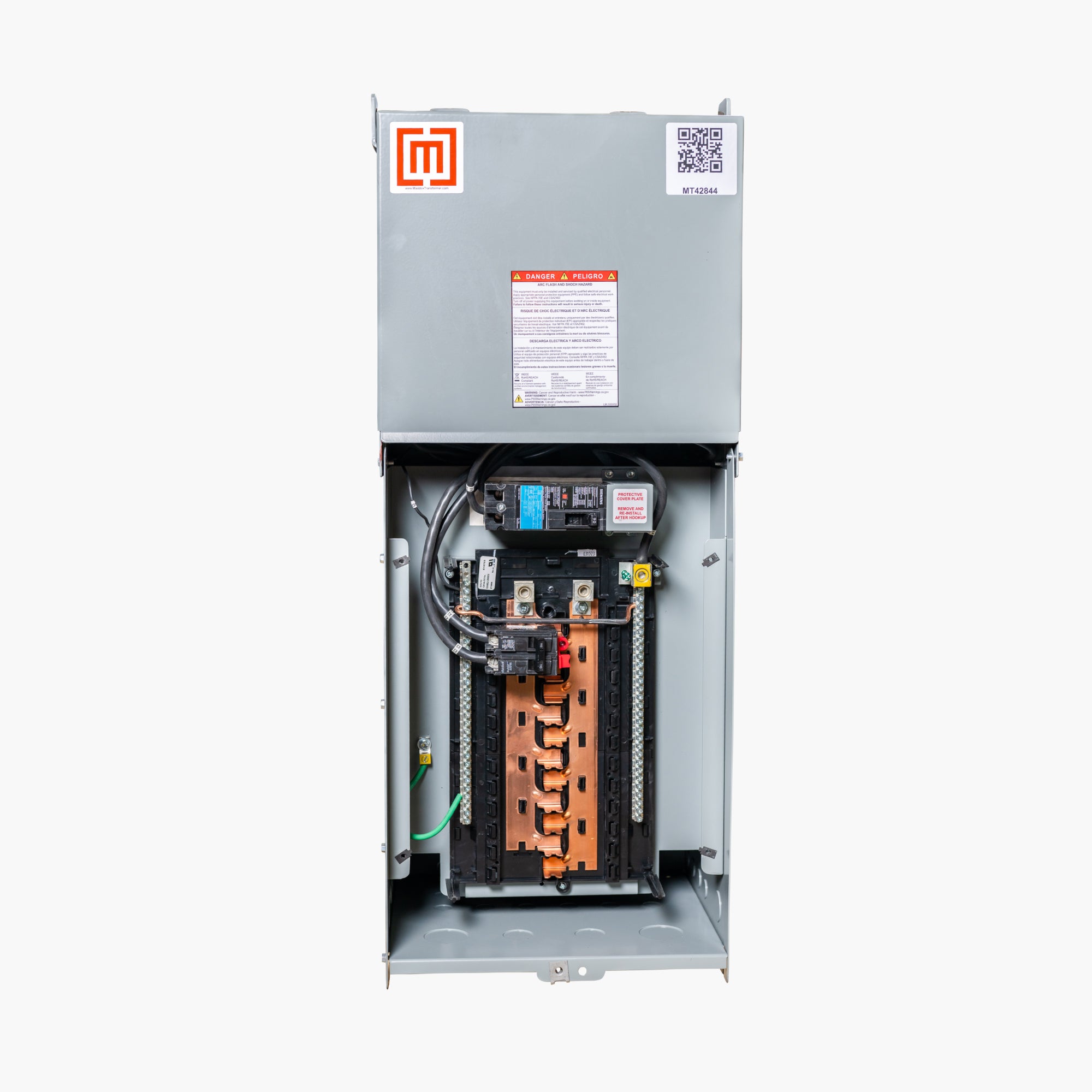

This mini power center is designed to convert 1-phase 480v to 120/240, and comes with a pre-wired primary and secondary main breaker, secondary power panel. Simply add your desired secondary breaker, and you have a convenient, space-efficient power center to run your facility.
Mini Power Centers are ideal for a wide range of applications including parking lots, assembly lines, car washes, construction Sites, farming / irrigation, and much more.
Primary Voltage: 480
Secondary Voltage: 120/240
Transformer Specifications
- Heavy Duty Indoor/Outdoor NEMA 3R Enclosure
- 60 Hz Frequency
- 150°C Temperature Rise
- 2.5% Adjustment Taps 2 Above, 4 Below
- 180°C Insulation Class
- DOE Energy Efficient
Circuit Breaker Part Numbers
| kVA | 480 V | 600 V | Secondary Breaker | Max Rating Secondary Breaker |
| 5 | ED42B020 | ED62B020 | Q225 | 25 |
| 7.5 | ED42B025 | ED62B025 | Q235 | 35 |
| 10 | ED42B035 | ED62B035 | Q250 | 50 |
| 15 | ED42B050 | ED62B040 | Q270 | 70 |
| 25 | ED42B090 | ED62B050 | Q2110 | 110 |

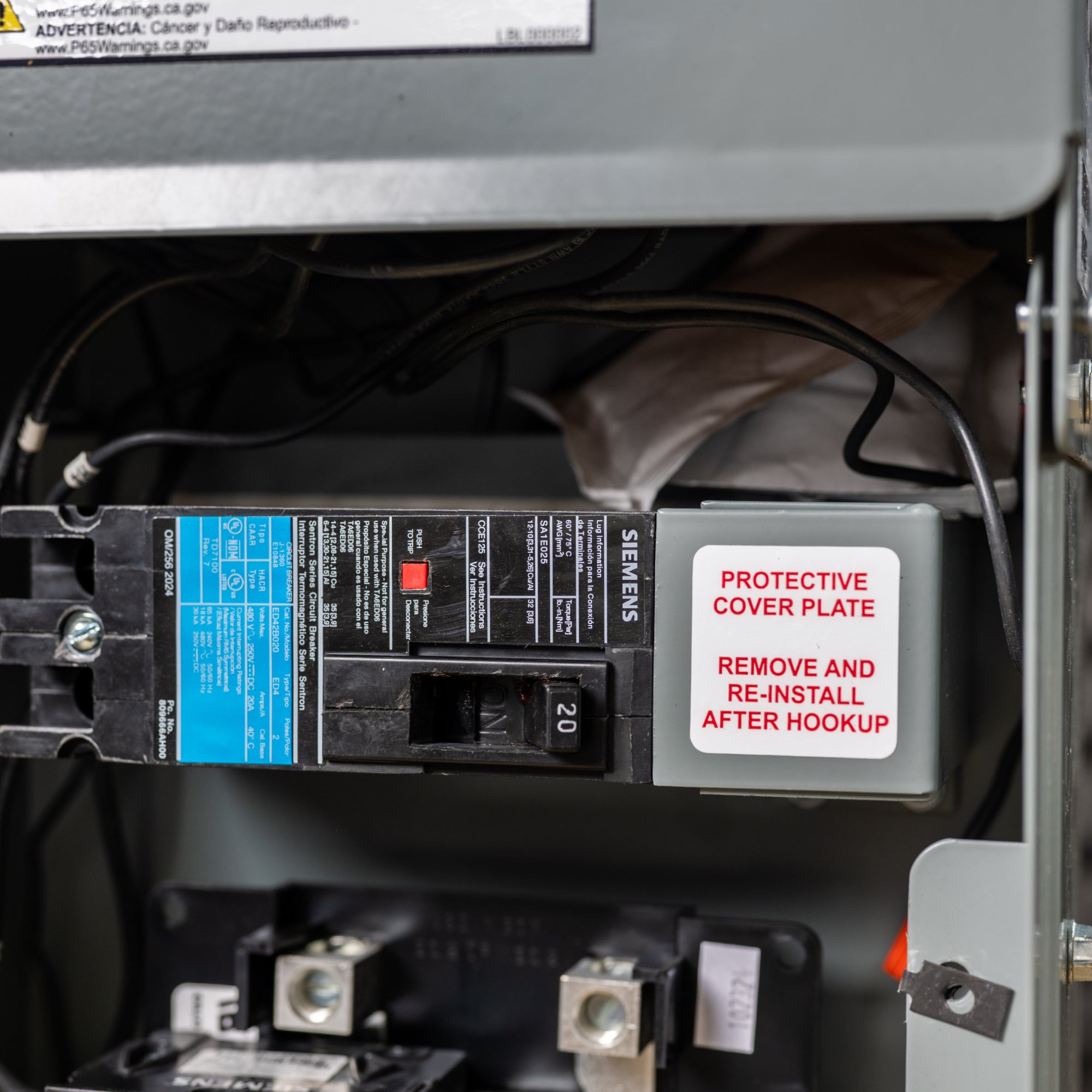

Maddox mini power centers come preinstalled with Siemens breakers. They cannot be used with any other breaker brand.
Size Guide
| kVA | Amps at 480 | Amps at 120V | Amps at 240V |
| 5 | 10 | 42 | 21 |
| 7.5 | 16 | 63 | 31 |
| 10 | 21 | 83 | 42 |
| 15 | 31 | 125 | 63 |
| 25 | 50 | 209 | 104 |
Dimensions & Weights
| kVA | Dimensions (HxWxD) | Weight (lbs) |
| 5 | 12"x8"x32" | 127 |
| 7.5 | 14"12"x32" | 201 |
| 10 | 14"x12"x35" | 210 |
| 15 | 16"x13"x35" | 291 |
| 25 | 17"x14"x42" | 423 |
Approximate Enclosure Dimensions & Weights
Ordered the wrong unit, or not sure if a product is right for you? Our web store exchange policy has you covered! We’ll send you a replacement transformer, all you pay for is shipping, plus the difference in unit price. Our policy lasts 30 days. If 30 days have gone by since your purchase, we cannot offer you a refund or exchange, but we still may be interested in buying the unit back. Proof of purchase is required to process a return or exchange.
Read more here: Return and Refund Policy
